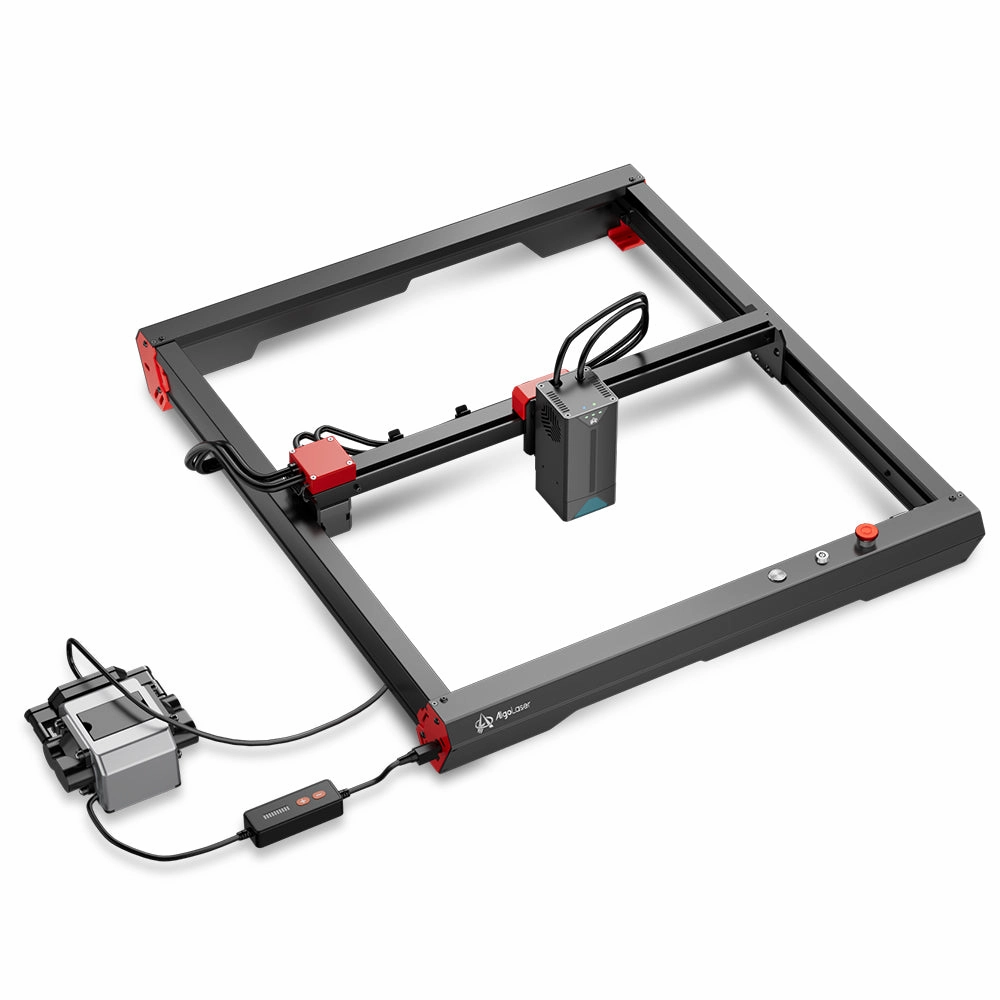

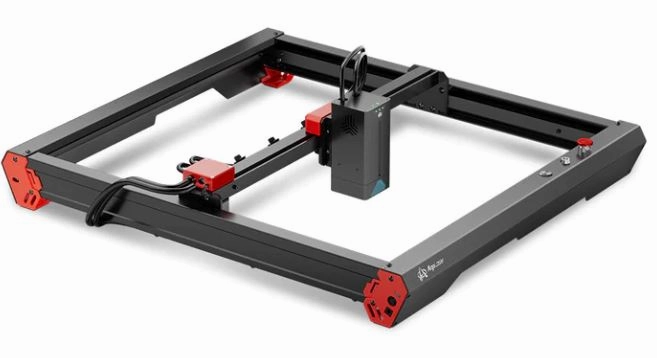

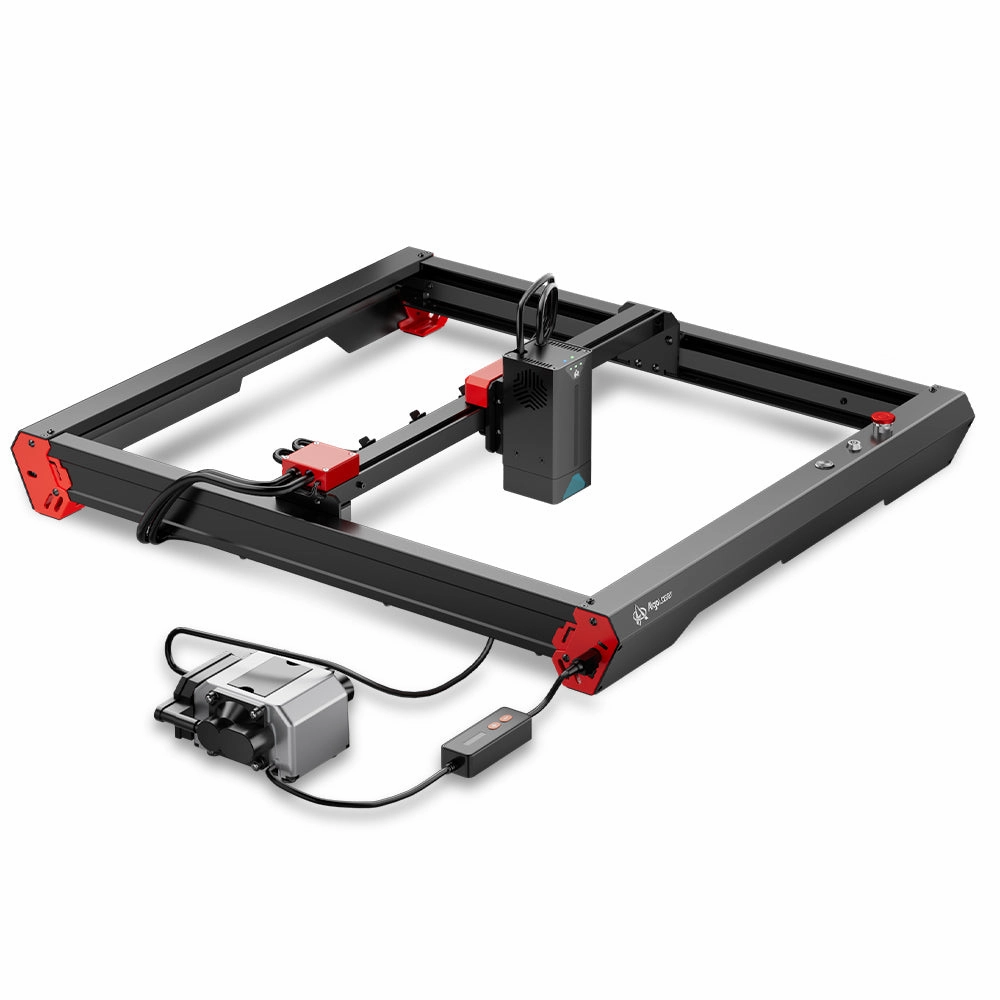

Meet the AlgoLaser Alpha. a 22W laser engraving marvel with 2nd Generation COS Technology. This high-power machine seamlessly blends innovation and user-friendly design. delivering unmatched precision and efficiency. Thanks to the advanced COS Technology. it achieves 40% improved laser beam performance. cutting 30mm of pine wood and 45mm of acrylic with ease. One-pass cutting tackles 10mm acrylic. 0.17mm stainless steel. and 12mm plywood. The A4-sized 210x290 area with 300 DPI and 0.08 mm resolution converts images into exquisite engravings. Compatibility with LightBurn. GCode. and versatile wireless/wired connections enhances user experience. backed by advanced safety features for peace of mind.
Specs:
| Real Laser Power: | 20W |
| 20W thickest cutting capacity: | Soft pine board: 30mm | Birch plywood: 12mm | Black acrylic: 50mm Eucalyptus plywood: 15mm Basswood plywood: 20mm |
| 20W One Pass cutting capacity: | Birch plywood: 10mm | Basswood plywood: 15mm | Steel plate: 0.17mm | Eucalyptus plywood: 5mm | Black acrylic: 10mm | Gray cardboard: 3mm | Black ABS board: 4mm MDF: 6mm | Paulownia wood: 15mm | Bamboo: 10mm |
| Smart Laser Module Features: | Flame Alert: Real-time monitoring of laser temperature ensures safe operation. |
| Temperature Monitoring | |
| Lens Cleaning Reminder: Lens Cleaning Reminder: Remind clean the lens after each 25 work hours | |
| Air Pressure Monitoring: Continuous monitoring of air pump operation ensures stable airflow pressure. | |
| Safety Function : | Machine Offset Detection and Protection |
| Machine Tilt Detection and Protection | |
| USB Connection Detection and Protection | |
| Current and Voltage Detection and Protection | |
| Emergency Stop Switch | |
| Key Lock | |
| Add-ons: | Free Air Pump -30L/Min |
| Movement Speed : | 30.000 mm/min Max |
| Engraving Speed : | 20.000 mm/min Max |
| Spot Size | 0.06*0.05mm |
| Engraving Area: | X400*Y400mm |
| Control Software: | Laser GRBL (free). LightBurn (60usd/year) .Mobile APP |
| Connection: | Wifi (2.4G). TF Card. USB .WebUI |
| Laser Type: | Diode |
| Wave Length | 4555nm |
| Focus: | 50mm(From radiators to objects) |
| Input Format | jpg. svg. png. bmp. G code. CAD. AI.CDR. dwg. etc. |
| Lens Materials: | Professional Focusing Optical Glass (Fused Silica & H-K9L) |
| Frame Materials | Aluminum Alloy |
| Motherboard: | ALGO LASER V2.1 |
| Input Voltage | 100V-240V (Compatible) 50/60Hz |
| Power Adapter Output | 24V/6A |
| Available Materials of Engraving | Wood Board. Paperboard. Black Acrylic. Leather. Food. Stainless Steel. Power Coated Metal. etc. |
| Available Materials of Cutting | Wood Board. Paperboard. Black Acrylic. Leather. Felt Cloth. Dark Color Plastic Sheet (Melt). etc. |
| Laser Module Lifetime : | 8000-10.000 Hrs |
| Operating Temp: | -10-40 |
| Product size : | 674mm*585mm*200mm |
| Package Size : | 87*28*29cm |
| Gross Weight: | 9.8kg |
Warranty: One Year Against ManufacturingDefect.
