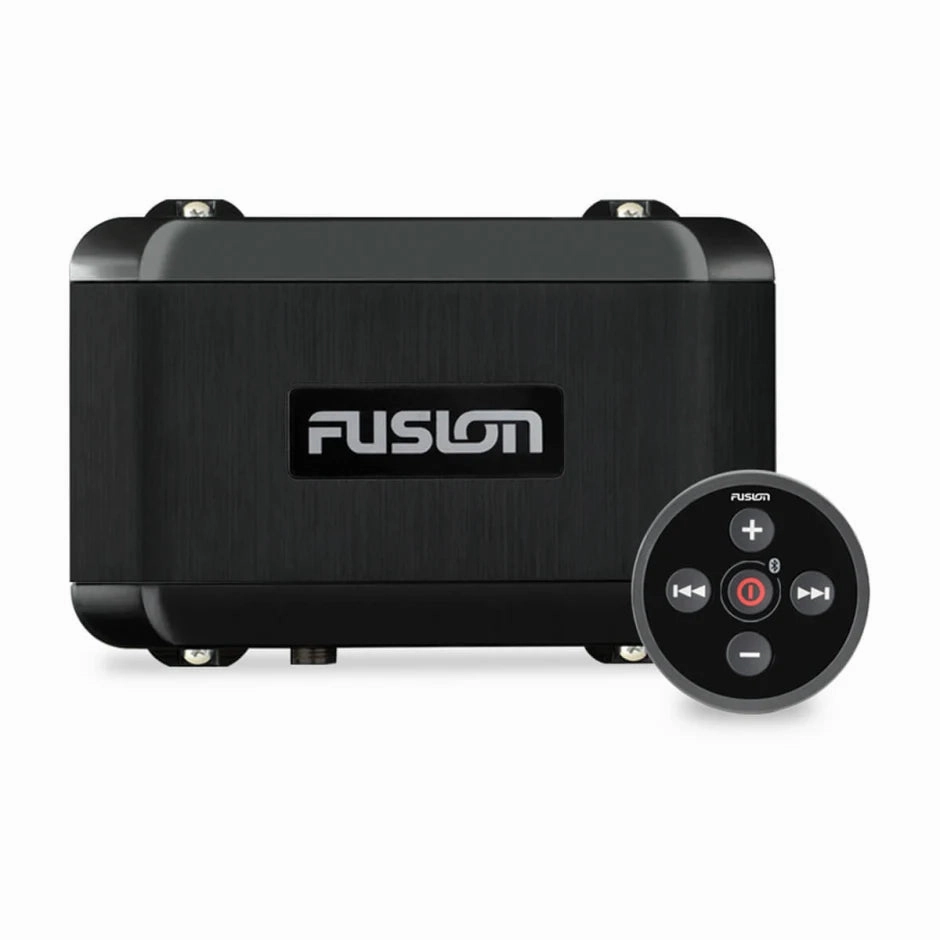

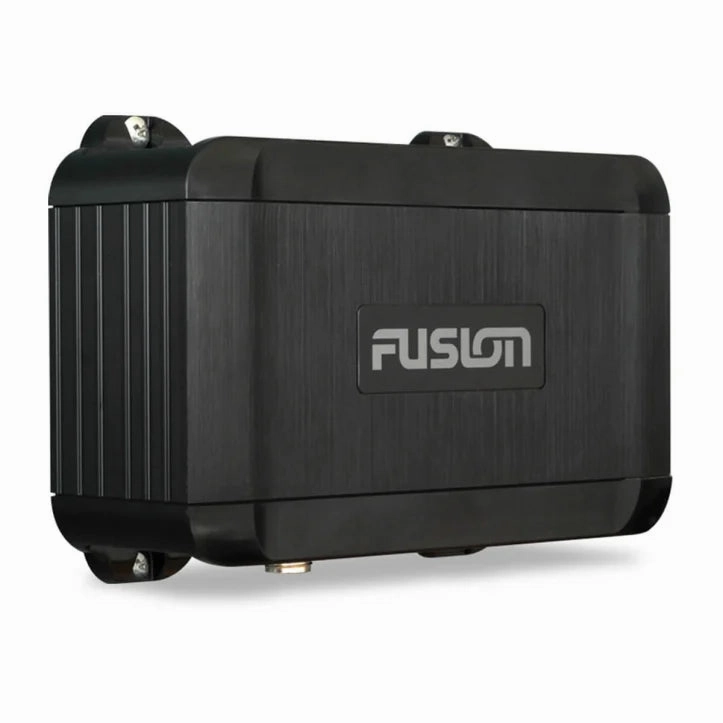

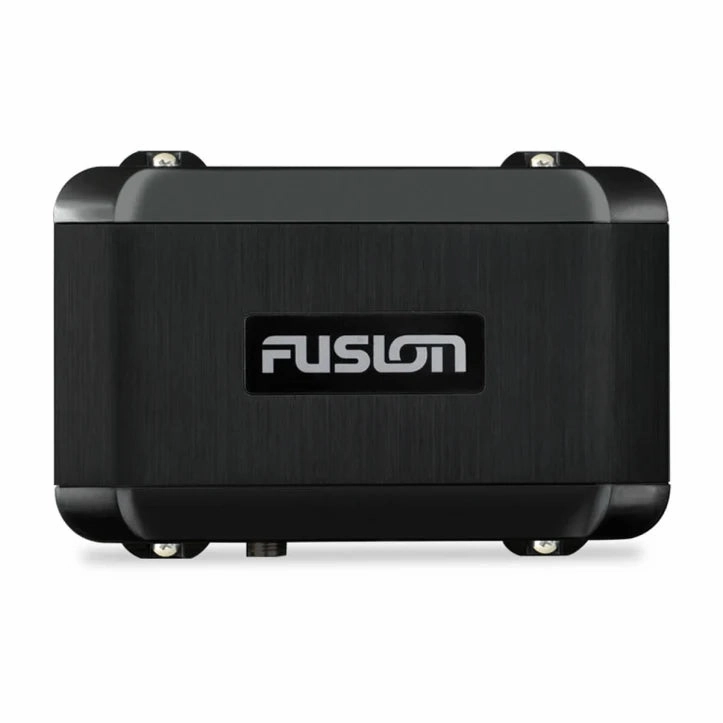

Garmin MS-BB100. Media Black Box w/controller. redesign. WW

Fusion BB100 Black Box is the one-stop-entertainment-solution from Garmin whose compact form factor makes it the perfect sound system for your limited helm space. The space-saving MS-BB100 easily mounts on to unthinkable spaces including storage lockers. inside helm consoles and other concealed compartments.

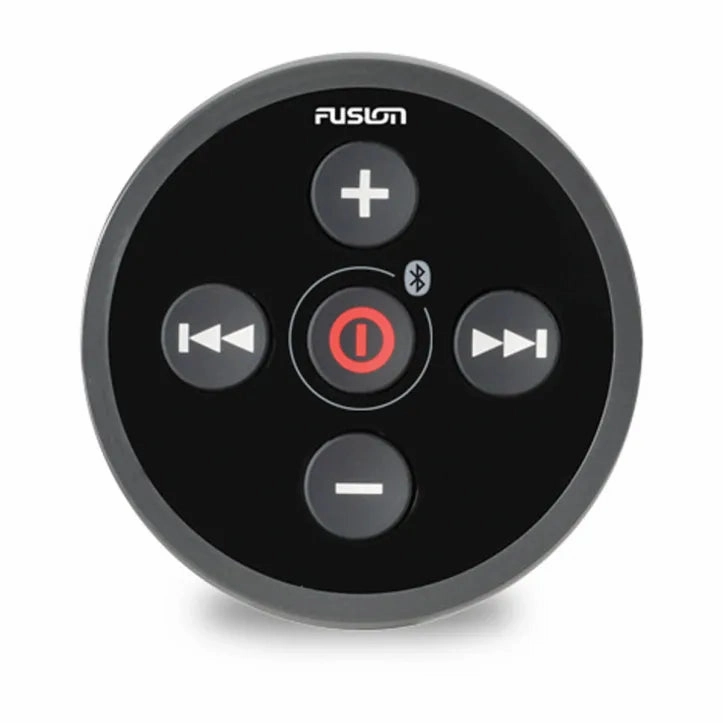

Designed to be concealed. load yourself with the handy IPX7 wired remote control for impeccable DJing experience. This versatile remote can be mounted with a conventional flush finish or integrated into the helm for a premium flat finish.

Indulge in optimal audio deliverance with minimized distortion thanks to the built-in Class-AB amplifier. Fusion BB100's multi-zone technology lets you control 2 different audio zones in one go.

Even as you dish out curated playlists from various sources including Bluetooth. DAB Radio. AM/FM Radio. AUX and USB connections. control play settings from your smart device or the Garmin watch recreating the perfect party atmosphere on board.

Specifications:

Dimension: Black Box: 6.1 x 3.7 x 2.63

Remote: 2.56 x 2.56 x 2.13

Weight: 1.23 lbs

Water rating Black Box: IPX3 (when properly installed)

Wired Remote: IPX7 (front panel only. when properly installed)

Operating temperature: 32 to 122 F (0 to 50 C)

Current (max): 15 A

Networking

NMEA 2000 LEN 1: (50 mA)

Bluetooth wireless range: Up to 30 ft (10 metres)

ANT wireless range: Up to 10 ft (3 metres)

Wireless frequencies/protocols: Bluetooth: 2.4 GHz @ 1.9 dBm nominal ANT: 2.4 GHz @ 1.9 dBm nominal

Audio Amplifier: Class-AB (4 ohm)

Electrical features

Power Input: 10.8 - 16 VDC

Compass safe distance: 5.9

Stereo features

Peak power: 200 watts

Rated power output (4 Ohm): 26 watts RMS x 4 @ 14.4 V input < 10% THD

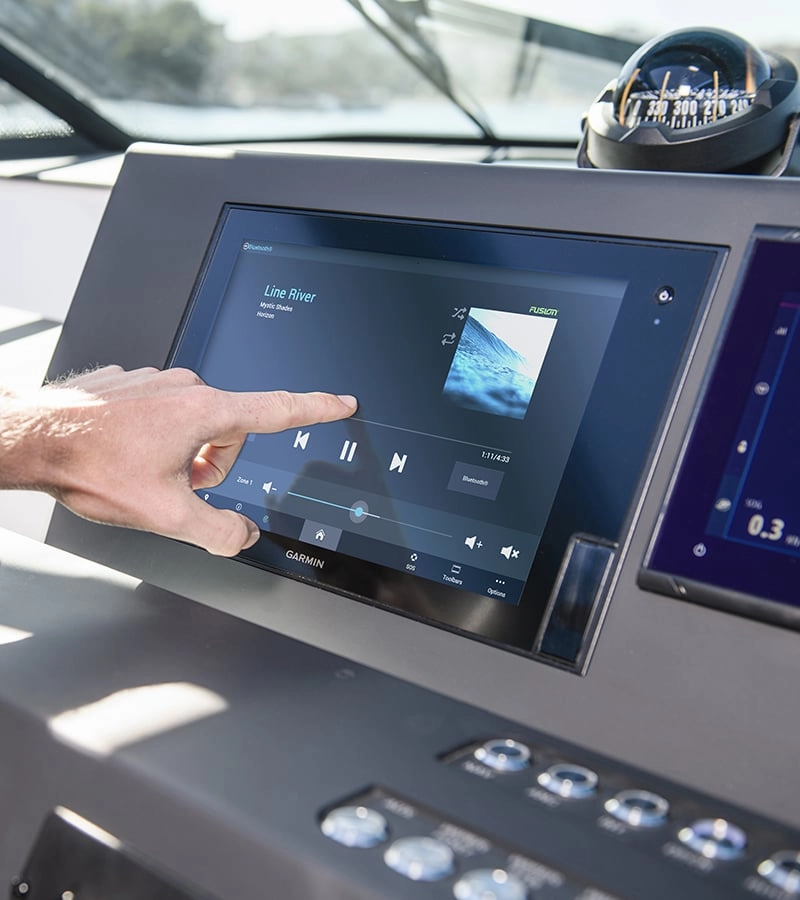

Control: Yes (MFD. smart device and Garmin watch)

Multi-Zone technology: 2 zones. Bluetooth wireless technology . ANT wireless technology. DAB ready. Supports NRX wired remote

Software updates: USB

Warranty: 1 year

Supported sources: AM. FM. Bluetooth. USB audio. iPhone. iPod. AUX x1. AOA. DAB ready (available in Europe and Australia only)

Connections

Auxiliary inputs (RCA): 1

NMEA 2000 ports: 1

USB ports: 1

AM/FM ports (Motorola antenna connector): 1

Speaker connections: 4 (2 zone amplified)

RCA Pre-out (left. right and subwoofer): 2 zones (requires external amplification)

Line out: 2 (L R per zone. requires external amplification)

Subwoofer out: Zone (requires external amplification)

What's in the Box:

1 x MS-BB100 media black box

1 x IPX7 wired remote control

1 x One remote control mounting nut (M56)

1 x One remote control mounting gasket

4 x 8-gauge. mounting screws

1 x Power and speaker wiring harness

1 x Auxiliary-in. line-out. and subwoofer-out wiring harness

1 x 6 ft (2 metre) NMEA 2000 drop cable

1 x Documentation
