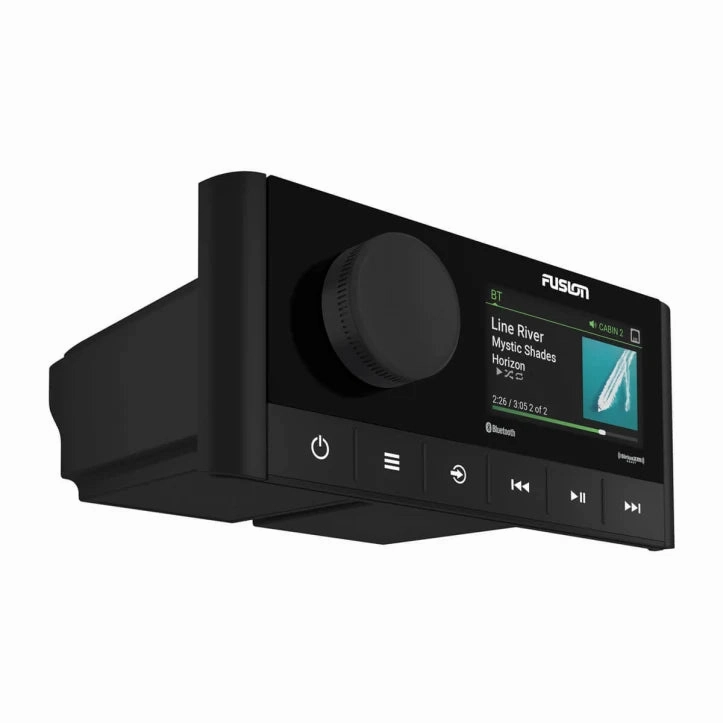

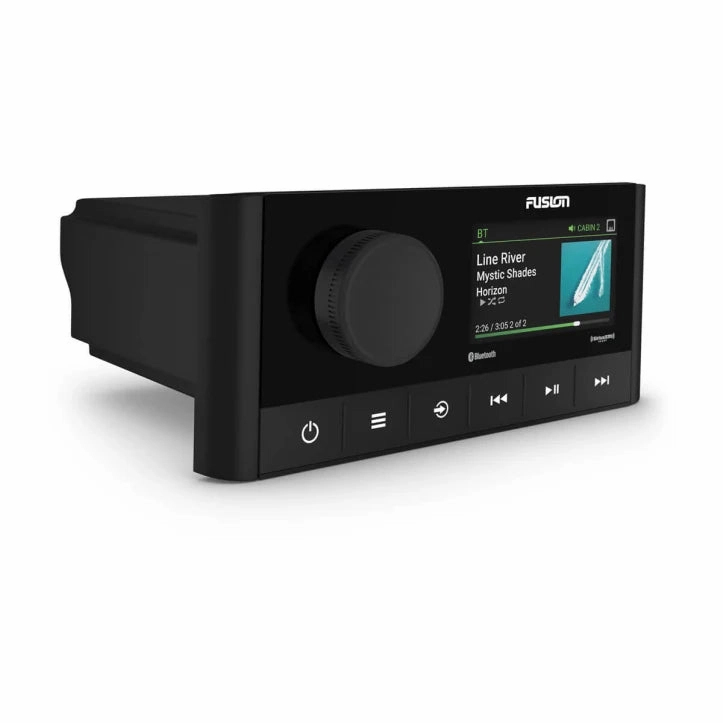

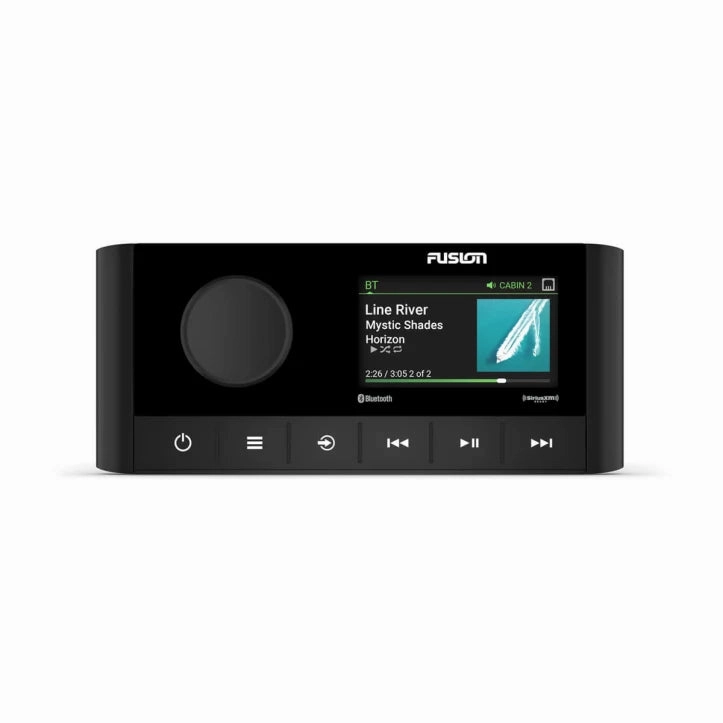

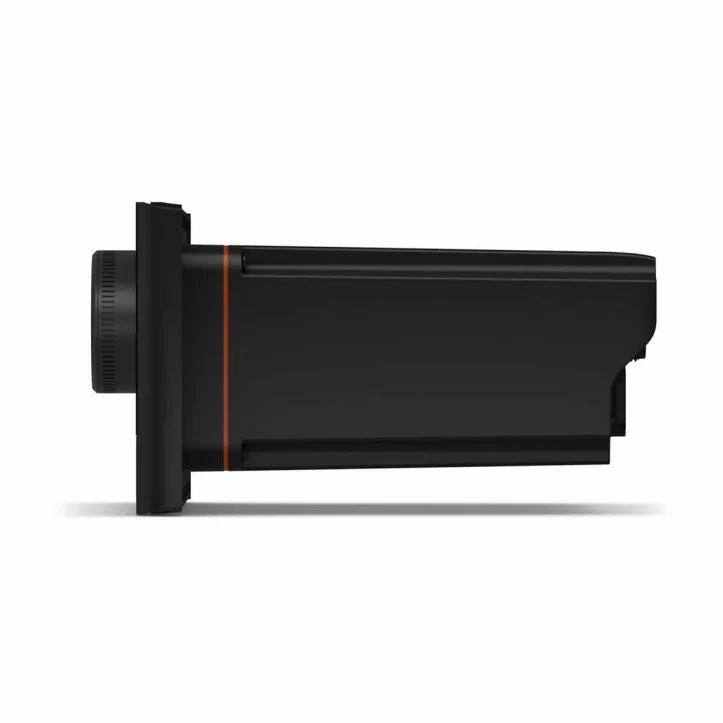

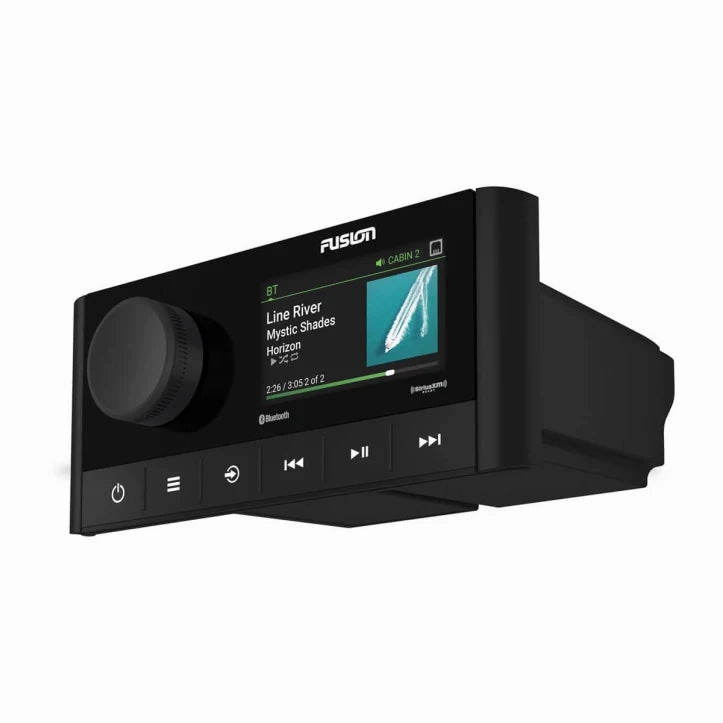

Garmin MS-RA210. Marine Entertainment System
A compact sound system dedicated to your marine entertainment. Garmin MS-RA210 from Fusion sets the benchmark in marine stereo with built-in Digital Signal Processing. modern design aesthetics and advanced source options.
Fitted with a Class-D amplifier enjoy your favorite albums in high clarity. You can also choose to custom audio profiles for each zone in your boat to cater to your guests with curated playlists.
Even as you control two separate audio zones with our multizone technology. have fun with the color album art and metadata on the elegant black panel display. Our easy-to-install DSP profiles optimizes audio signals to deliver superior sound quality in every listening condition.
While you get the freedom of choice to pick your music from a plethora of sources including Bluetooth. DAB Radio. AM/FM Radio. AUX and USB connections. once the streaming begins all you need is your smart device or Garmin watch to take control over what is played.
Specifications:
Dimension: 6.18 x 2.68 x 4.99 (156 x 68 x 126.6 mm)
Weight: 0.77lbs (350 g)
Water rating: IPX6 and IPX7 (front panel only. when properly installed)
Display: 2.7 optically bonded color LCD
Operating temperature: 32 to 122 F (0 to 50 C)
Current (max): 15 A
Networking
NMEA 2000 LEN 1: (50 mA)
BLUETOOTH wireless range: up to 30 ft
ANT wireless range: Up to 10 ft
Wireless frequencies/protocols: BLUETOOTH: 2.4 GHz @ 12 dBm nominal ANT: 2.4 GHz @ 7 dBm nominal
Audio Amplifier: Class-D (4 ohm)
Electrical Features
Power Input: 10.8 - 16 VDC
Compass-safe distance: 5.9 (150 mm)
Stereo Features
Peak power: 200 W
Rated power output (4 ohm): 26 watts RMS x 4 @ 14.4 V input < 10% THD
Built-in Digital Signal Processing (DSP): yes (with custom DSP profile setup using Fusion-Link app)
Fusion-Link control: yes (MFD. smart device and Garmin watch)
Multi-Zone technology: 2 zones BLUETOOTH wireless technology ANT wireless technology SiriusXM-ready DAB ready Supports NRX wired remote
Multi-language interface: Bulgarian. Chinese (Simplified). Chinese (Traditional). Croatian. Czech. Danish. Dutch. English. Finnish. French. German. Greek. Italian. Japanese. Korean.
Norwegian. Polish. Portuguese-Brazil. Portuguese-Portugal. Slovenian. Spanish. Swedish. Thai. Turkish
Software updates: USB
Supported sources: AM. FM. BLUETOOTH. USB audio. iPhone. iPod. AUX x1. MTP SiriusXM-Ready (U.S. only. requires optional SiriusXM Connect vehicle tuner) DAB ready
(available in Europe and Australia only)
Connections
Auxiliary inputs (RCA): 1
NMEA 2000 ports: 1
USB 2.0 ports: 1
SiriusXM ports: 1
AM/FM ports (Motorola antenna connector): 1
Speaker connections: 4 (2 zone amplified)
RCA pre-out (left. right and subwoofer): 2 zones (requires external amplification)
Line out: 2 (L R per zone. requires external amplification)
Subwoofer out: 2 (1 mono output per zone. requires external amplification)
What's in the Box:
1 x Fusion MS-RA210 marine stereo
1 x Mounting gasket
4 x 6-gauge. self-tapping screws
2 x Screw covers
1 x Power and speaker wiring harness
1 x Auxiliary-in. line-out. and subwoofer-out wiring harnesses
1 x 2 meter (6 ft) NMEA 2000 drop cable
1 x Documentation
