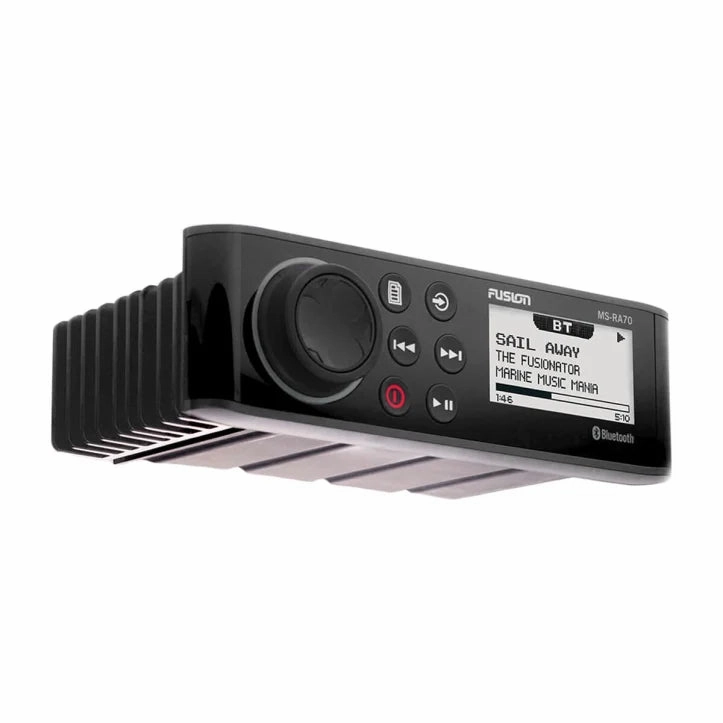

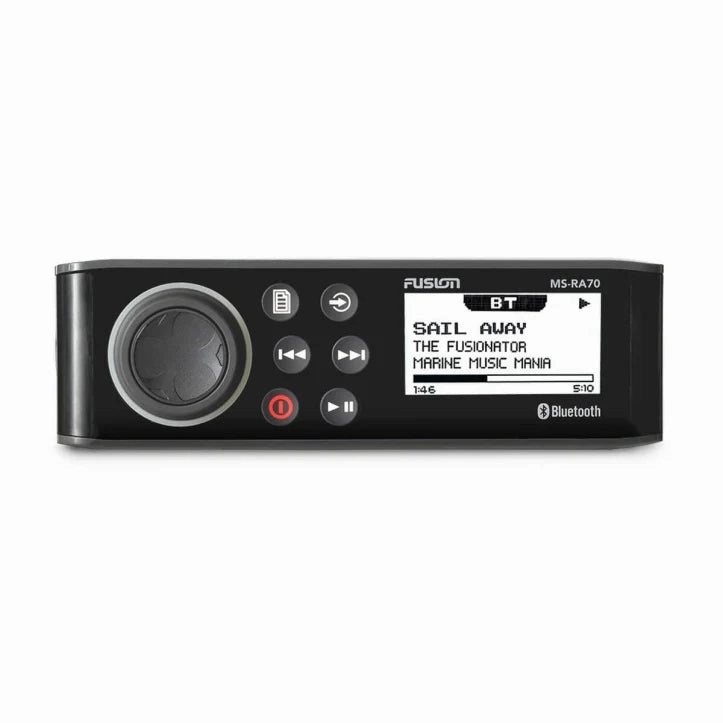

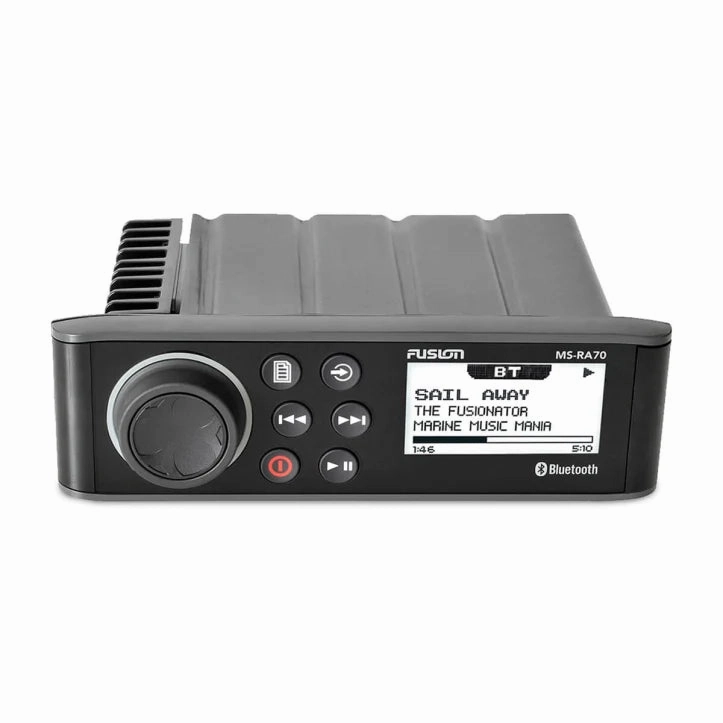

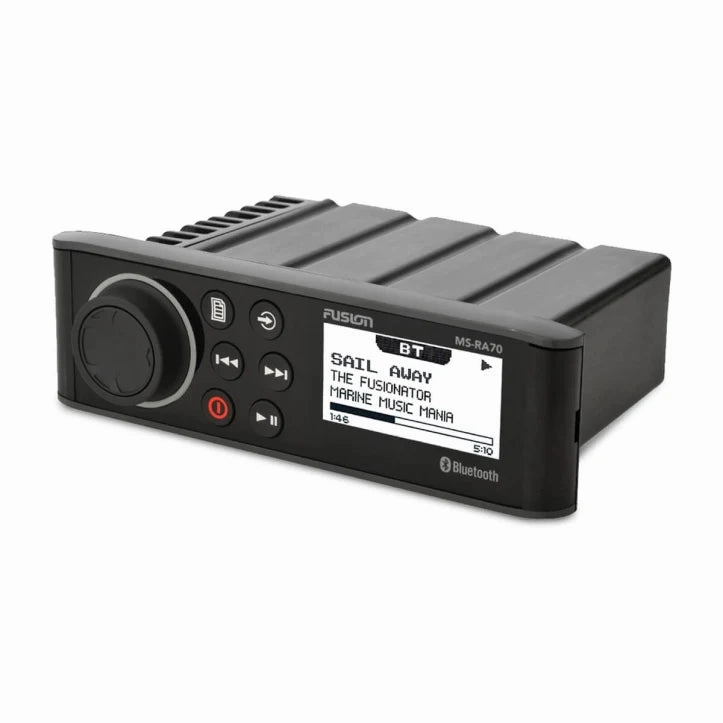

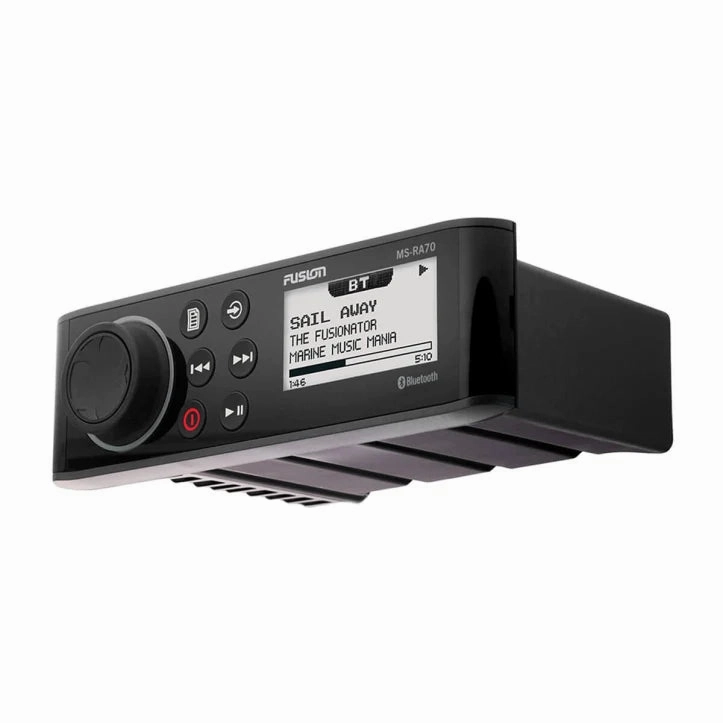

Garmin MS-RA70. Redesign. WW

Garmin brings your way the Fusion MS-RA70. the industry benchmark for marine entertainment that retrofits your existing DIN-sized stereo eliminating the need to reconfigure your dash space.

While the optically bonded monochrome LCD magnificently improves screen visibility. our built-in Class-AB amplifier enhances sound delivery with minimal distortion. Treat your guests to playlists curated from a variety of sources including Bluetooth. DAB Radio. AM/FM radio. AUX. and USB connections.

Integrate with a compatible multi-function display (MFD). any smart device or your Garmin smart watch to control the music and mood of the boat party.

Specifications:

Dimension: 7.4 x 2.36 x 4.87 (188 x 60 x 123.5 mm)

Weight: 1.23lbs (556 g)

Water rating: IPX7 (front panel only. when properly installed)

Display: 2.6 optically bonded monochrome LCD

Operating temperature: 32 to 122 F (0 to 50 C)

Current (max): 15 A

Networking

BLUETOOTH wireless range: up to 30 ft

ANT wireless range: Up to 10 ft

Wireless frequencies/protocols: BLUETOOTH: 2.4 GHz @ 1.9 dBm nominal ANT: 2.4 GHz @ 1.9 dBm nominal

Audio Amplifier: Class-AB (4 ohm)

Electrical Features

Power Input: 10.8 - 16 VDC

Compass-safe distance: 5.9 (150 mm)

Stereo Features

Peak power: 200 W

Rated power output (4 ohm): 26 watts RMS x 4 @ 14.4 V input < 10% THD

Fusion-Link control: yes (see Additional)

Multi-Zone technology: 2 zones BLUETOOTH wireless technology ANT wireless technology

Multi-language interface: Dutch. English. French. German. Italian. Spanish

Software updates: USB

Warranty : 1year

Supported sources: AM. FM. BLUETOOTH. USB audio. iPhone. iPod. AUX x1. AOA

Connections

Auxiliary inputs (RCA): 1

USB 2.0 ports: 1

AM/FM ports: (Motorola antenna connector) 1

Speaker connections: 4 (2 zone amplified)

RCA pre-out (left. right and subwoofer): 2 zones (requires external amplification)

Line out: 2 (L R per zone. requires external amplification)

Subwoofer out: Zone 1 (mono output. requires external amplification)

Fusion-Link control: MS-RA70: smart device and Garmin watch

What's in the Box:

1 x DIN mounting plate

4 x 8-gauge. self-tapping screws

1 x Power and speaker wiring harness

1 x Auxiliary-in. line-out. and subwoofer-out wiring harnesses

1 x Documentation
