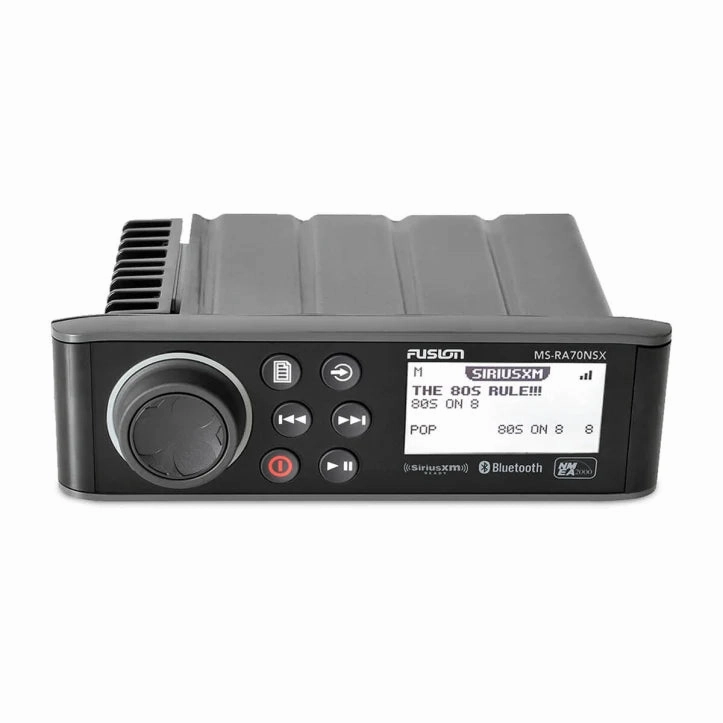

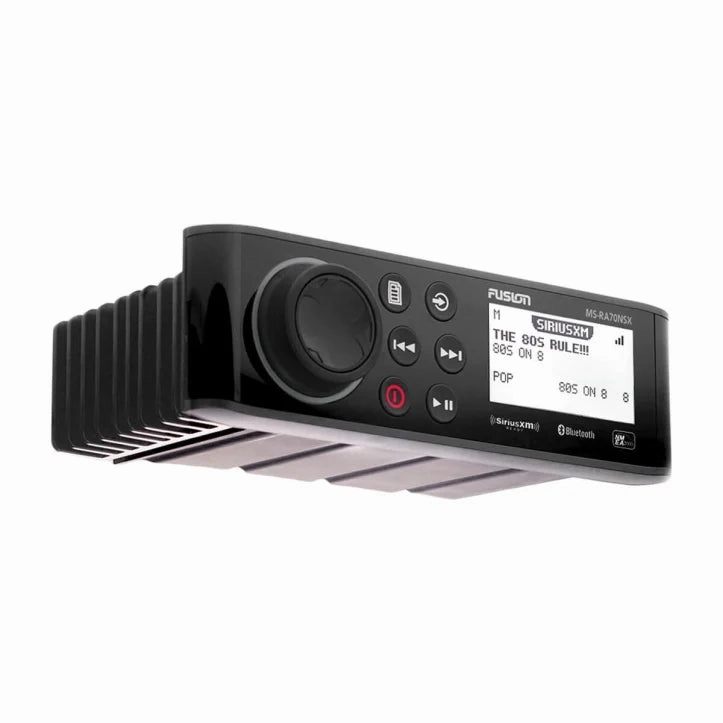

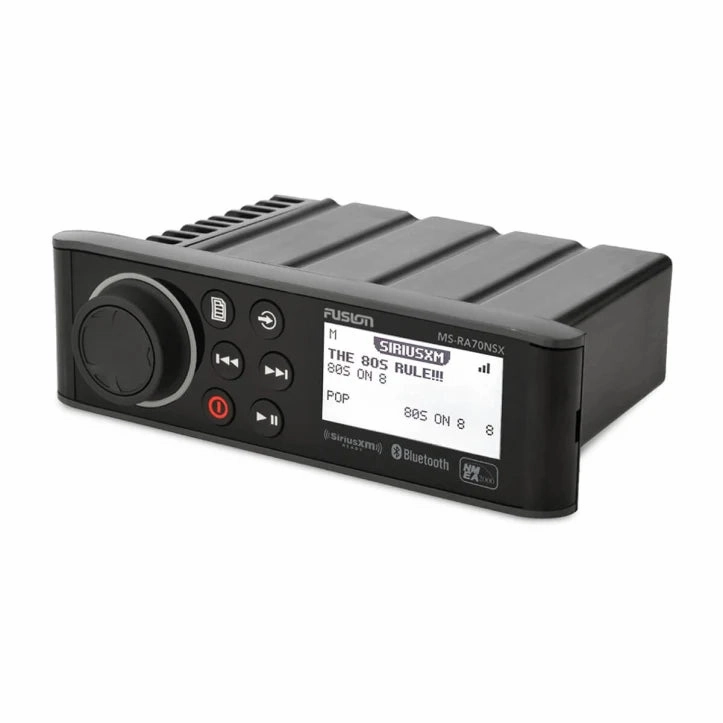

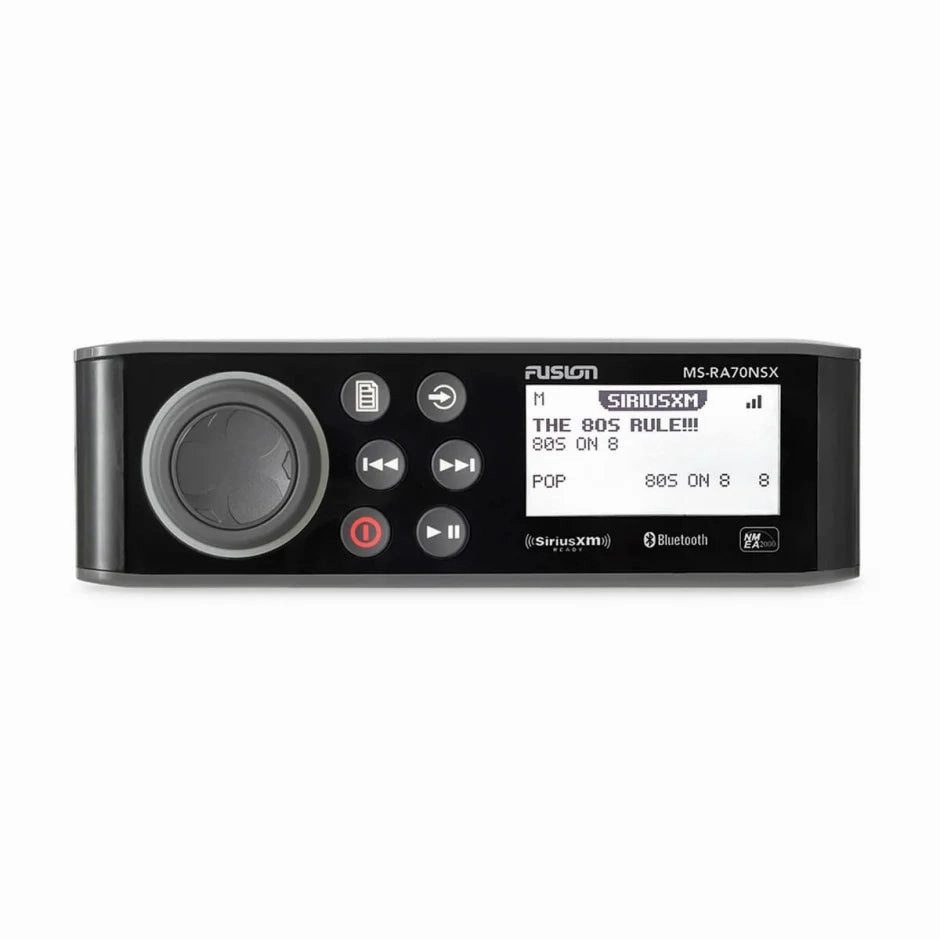

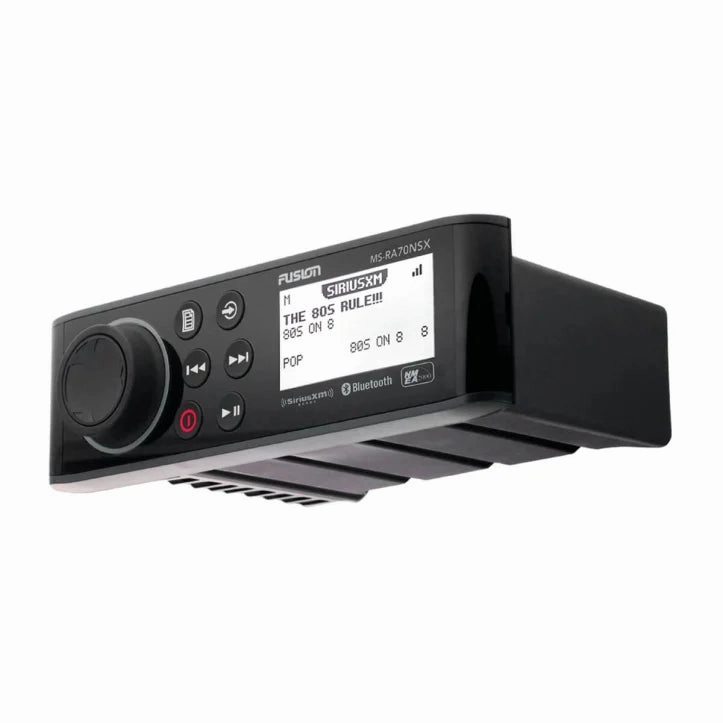

Garmin MS-RA70NSX. NMEA. NA. SiriusXM

Amp up your marine entertainment with Garmin Fusion RA70 series MA-RA70NSX NMEA 2000 and SiriusXM ready marine stereo that retrofits your existing DIN-sized stereo eliminating the need to reconfigure your dash space.

Fitted with an optically bonded monochrome LCD. enjoy optimal screen visibility for better player control. While our built-in Class AB amplifier enhances your audio experience to a whole new level with increase clarity in high frequency. the multi-zone technology in place lets you captain two separate audio zones in one go.

Control. monitor and play what best suits the mood of the sail crew with a compatible MFD (multifunction display). any smart device or your Garmin smart watch. When your music is sourced from a plethora of experts via Bluetooth. DAB Radio. AM/FM. AUX and USB connections. there is no doubt your on-board parties will indeed be the talk of the sea.

Specifications:

Dimension: 7.4 x 2.36 x 4.87 (188 x 60 x 123.5 mm)

Weight: 1.23 lbs (556 g)

Water rating: IPX7 (front panel only. when properly installed)

Display: 2.6 optically bonded monochrome LCD

Operating temperature: 32 to 122 F (0 to 50 C)

Current (max): 15 A

Networking

BLUETOOTH wireless range: up to 30 ft

ANT wireless range: Up to 10 ft

Wireless frequencies/protocols: BLUETOOTH: 2.4 GHz @ 1.9 dBm nominal ANT: 2.4 GHz @ 1.9 dBm nominal

Audio Amplifier: Class-AB (4 ohm)

Electrical Features

Power Input: 10.8 - 16 VDC

Compass-safe distance: 5.9 (150 mm)

Stereo Features

Peak power: 200 W

Rated power output (4 ohm): 26 watts RMS x 4 @ 14.4 V input < 10% THD

Fusion-Link control: yes (see Additional)

Multi-Zone technology: 2 zones BLUETOOTH wireless technology ANT wireless technology

Multi-language interface: Dutch. English. French. German. Italian. Spanish

Software updates: USB

Warranty : 1year

Supported sources: AM. FM. BLUETOOTH. USB audio. iPhone. iPod. AUX x1. AOA. MS-RA70NSX: SiriusXM-Ready (U.S. only. requires optional SiriusXM Connect vehicle tuner)

Connections

Auxiliary inputs (RCA): 1

NMEA 2000 ports: 1

SiriusXM ports: 1

USB 2.0 ports: 1

AM/FM ports: (Motorola antenna connector) 1

Speaker connections: 4 (2 zone amplified)

RCA pre-out (left. right and subwoofer): 2 zones (requires external amplification)

Line out: 2 (L R per zone. requires external amplification)

Subwoofer out: Zone 1 (mono output. requires external amplification)

Additional: NMEA 2000 LEN: 1 (50 mA). MS-RA70N and MS-RA70NSX only. Fusion-Link control: MS-RA70: smart device and Garmin watch; MS-RA70 and MS-RA70NSX: MFD. smart device and Garmin watch. SiriusXM-Ready: MS-RA70NSX only. DAB Ready: MS-RA70 and MS-RA70N only

Supports NRX wired remote: MS-RA70N and MS-RA70NSX only

What's in the Box:

1 x DIN mounting plate

4 x 8-gauge. self-tapping screws

1 x Power and speaker wiring harness

1 x NMEA 2000 drop cable 6ft. (2m)

1 x Auxiliary-in. line-out. and subwoofer-out wiring harnesses

1 x Documentation
