Name: Garmin MS-RA770. Marine Stereo. Retail
SKU: 330151

Product Details ＋

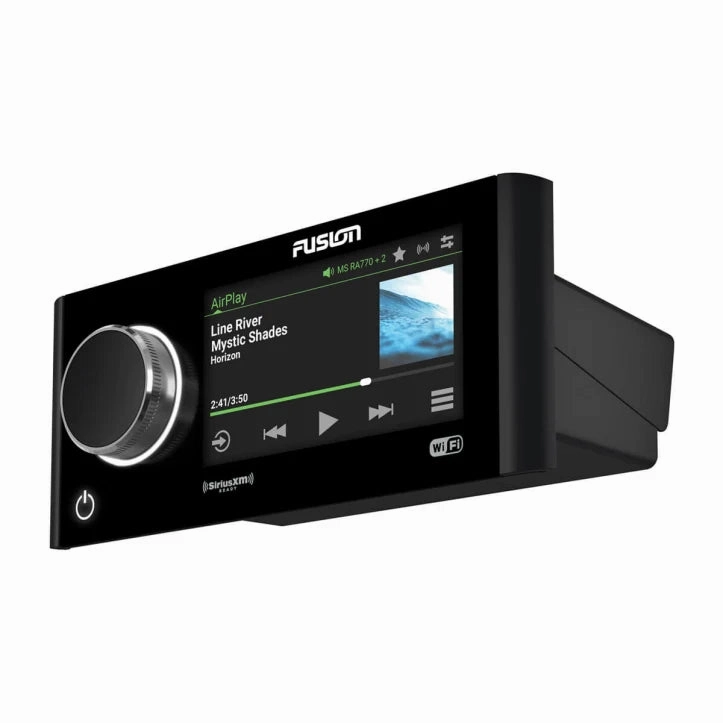

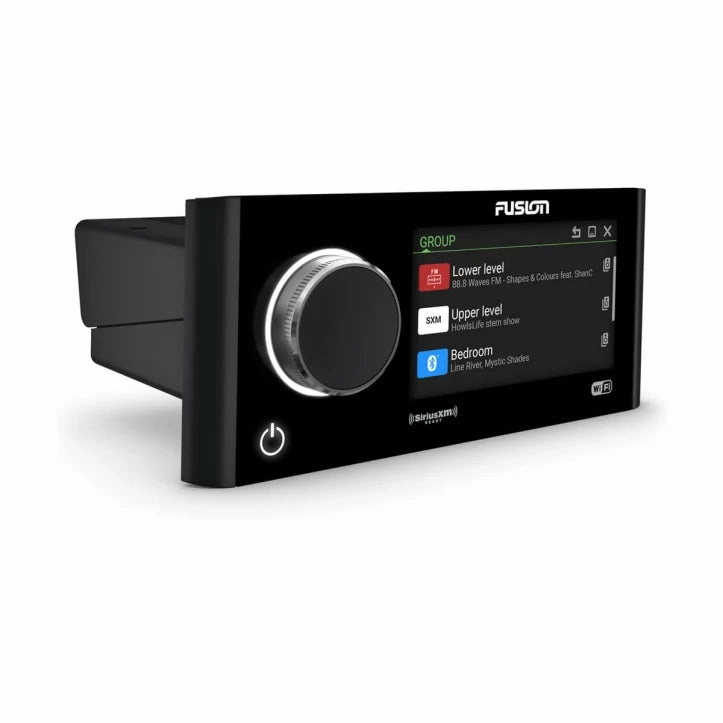

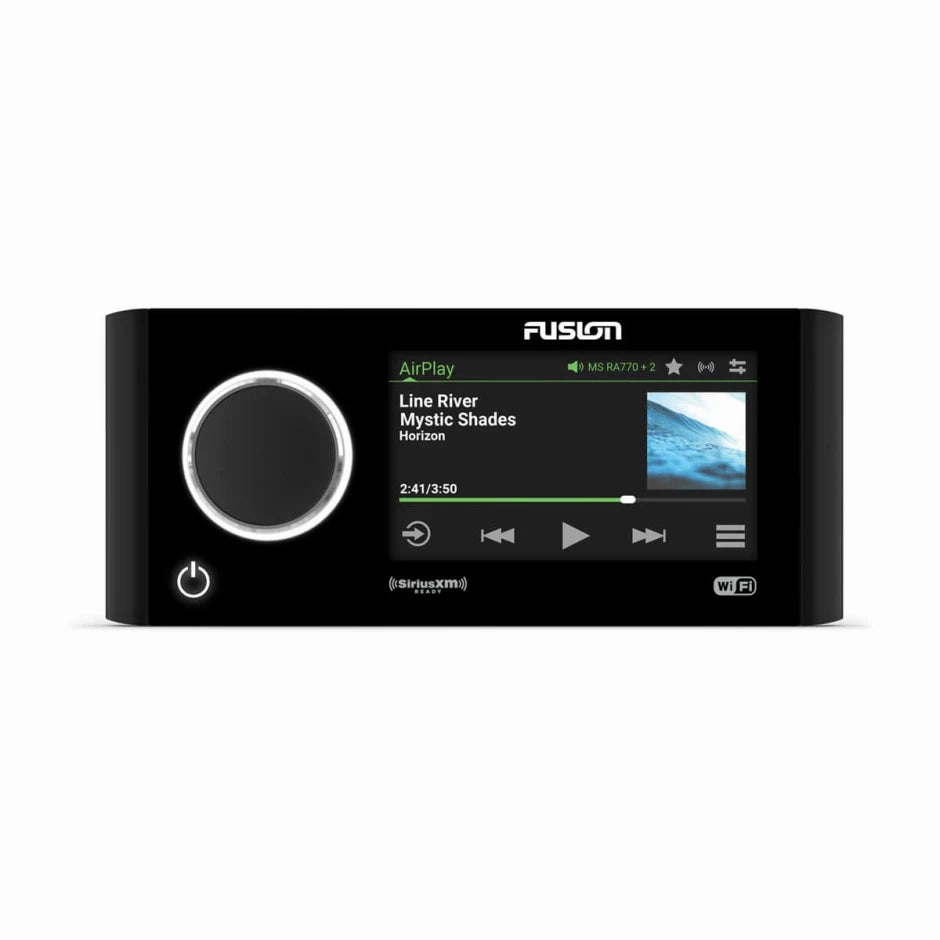

Garmin MS-RA770. Marine Stereo. Retail

Fusion Apollo MS-RA770 from Garmin is the world's first touchscreen marine stereo with built-in Wi-Fi and AirPlay2 software that plays premium quality audio with the convenience of universal plug and play. Fusion allows hassle free installation with a wireless connection between Apollo RA770 and SRX400. thus reducing cost and complexity. Your gadget is software ready and updates over-the-air via Fusion Audio app to always stay in trend.

Designed for the love of music on waters. Fusion Apollo is engineered to TrueMarine standards with an IPX6 and IPX7 rated water resistant front panel and is optimally protected against salt. fog. temperature. vibration and UV.

While you can control the music played via compatible MFD. a smart device or your Garmin watch. the 4.3 touchscreen lets you play old school with play. pause and skip functions.

Crafted aesthetically to fit your modern standards. the black front face seamlessly blends into black glass panels. in line with other electronics onboard. NMEA 2000 enabled allows you to adjust settings to adjust volume to match your boat's speed so you enjoy optimal quality audio in all weather conditions.

With Fusion Apollo RA770 you can now customize audio profiles to play curated playlists for each zone on your boat.

Highlights:

Innovative design with modern aesthetics
High-quality audio streaming over Wi-Fi
Engineered to TrueMarine Standards
NMEA 2000 enabled

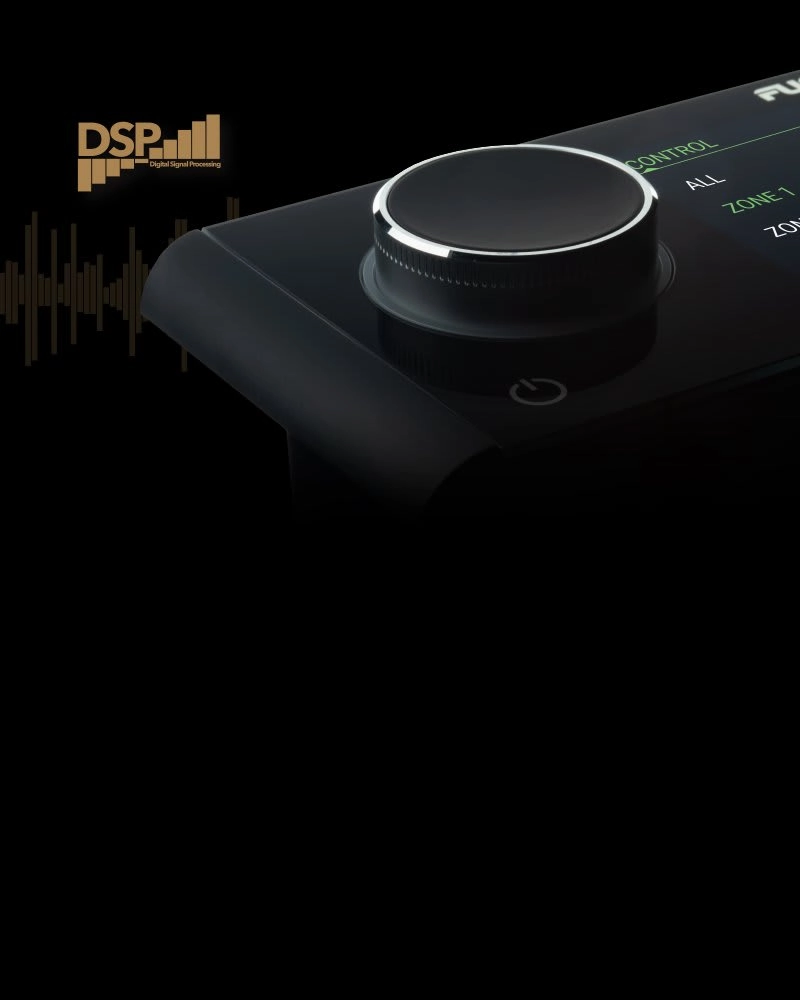

Fusion Digital Signal Processing (DSP) produces superior sound quality in every listening environment
Easy-to-install zone customized audio profiles
Stereo grouping with dedicated home zone control

Specifications:

Dimension: 7.56 x 3.23 x 4.7

Weight: 1.65 lbs

Water rating: IPX6 and IPX7 (front panel only. when properly installed)

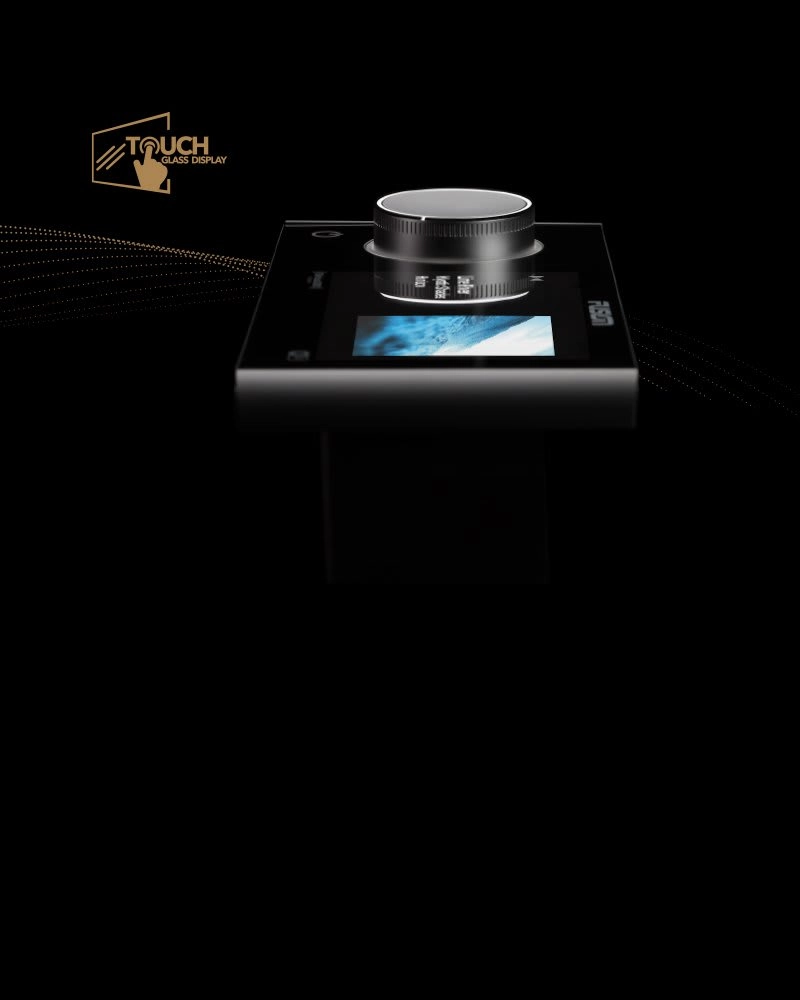

Display: 4.3 capacitive touchscreen color LCD

Operating temperature: 32 to 122 F (0 to 50 C)

Current (max): 15 A

Networking

NMEA 2000 LEN 1: (50 mA)

BLUETOOTH wireless range: up to 30 ft

ANT wireless range; Up to 10 ft

Wireless frequencies/protocols: Wi-Fi: 2.4 GHz @ 15 dBm nominal

BLUETOOTH: 2.4 GHz @ 10 dBm nominal

ANT: 2.4 GHz @ 4 dBm nominal

Audio Amplifier: Class-D (2 ohm stereo-stable)

Electrical Features

Power Input: 10.8 - 16 VDC

Compass-safe distance: 5.9 (150 mm)

Stereo Features

Peak power: 280 W

Rated power output (2 ohm): 43 watts RMS x 4 @ 14.4 V input < 10% THD

Rated power output (4 ohm): 26 watts RMS x 4 @ 14.4 V input < 10% THD

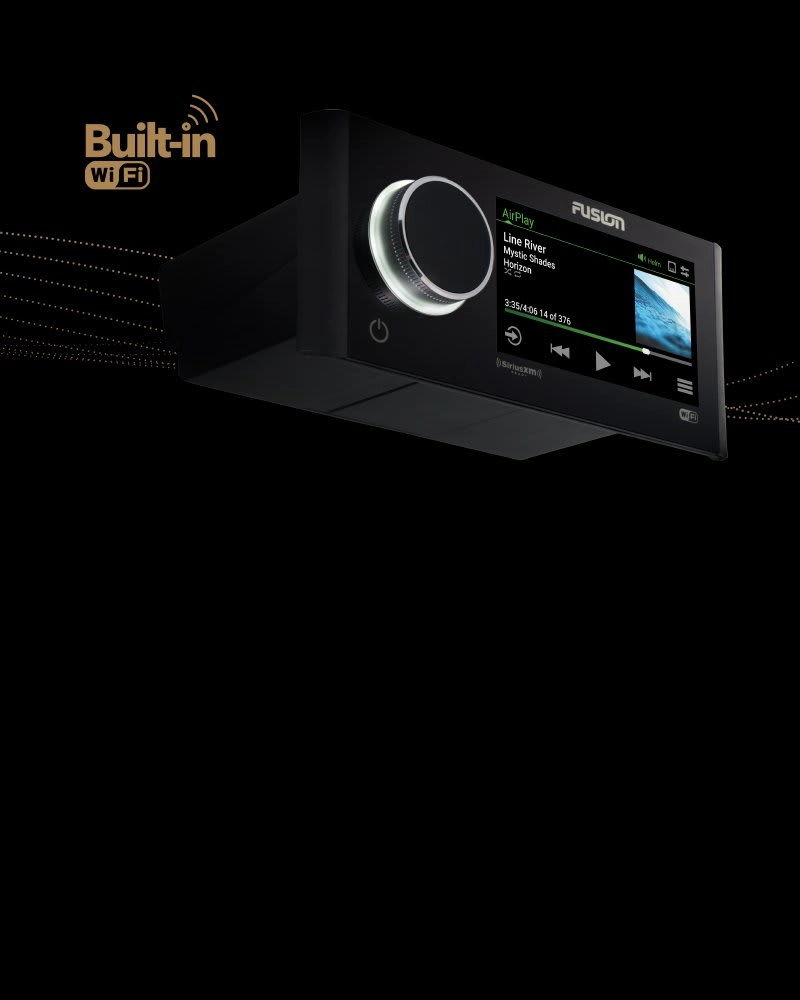

Built-in Wi-Fi: Yes

Built-in Digital Signal Processing (DSP): yes (with custom DSP profile setup using Fusion-Link app)

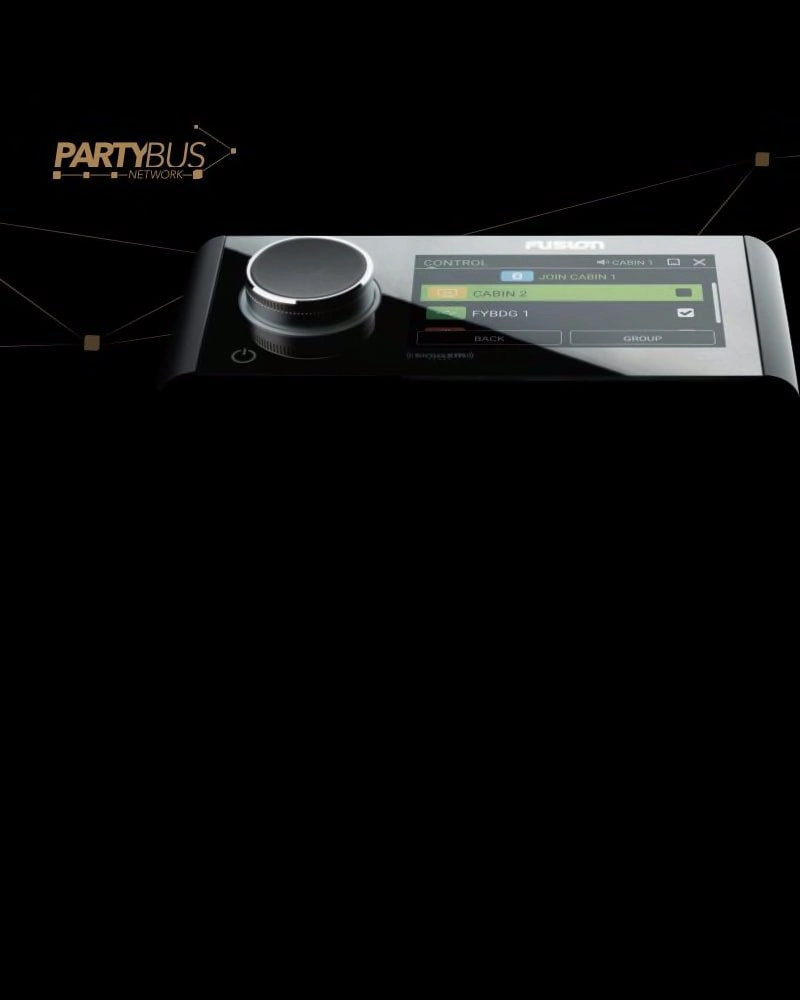

PartyBus-network capabilities: yes (wired or wireless)

Fusion-Link control: yes (MFD. smart device and Garmin watch)

Multi-Zone technology: 4 zones. BLUETOOTH wireless technology. ANT wireless technology. SiriusXM-ready. DAB ready. Optical audio input. Supports ERX wired remote. Supports
NRX wired remote

Multi-language interface: Bulgarian. Chinese (Simplified). Chinese (Traditional). Croatian. Czech. Danish. Dutch. English. Finnish. French. German. Greek. Italian. Japanese. Korean.
Norwegian. Polish. Portuguese-Brazil. Portuguese-Portugal. Slovenian. Spanish. Swedish. Thai. Turkish

Software updates: Over-the-air updates via Fusion-Link app / USB

Warranty: 3years

Supported sources : AM. FM. BLUETOOTH. Apple AirPlay 2. digital optical input. USB audio. iPhone. iPod. AUX x2. UPnP. MTP

SiriusXM: Ready (U.S. only. requires optional SiriusXM Connect vehicle tuner)

DAB : Ready (available in Europe and Australia only)

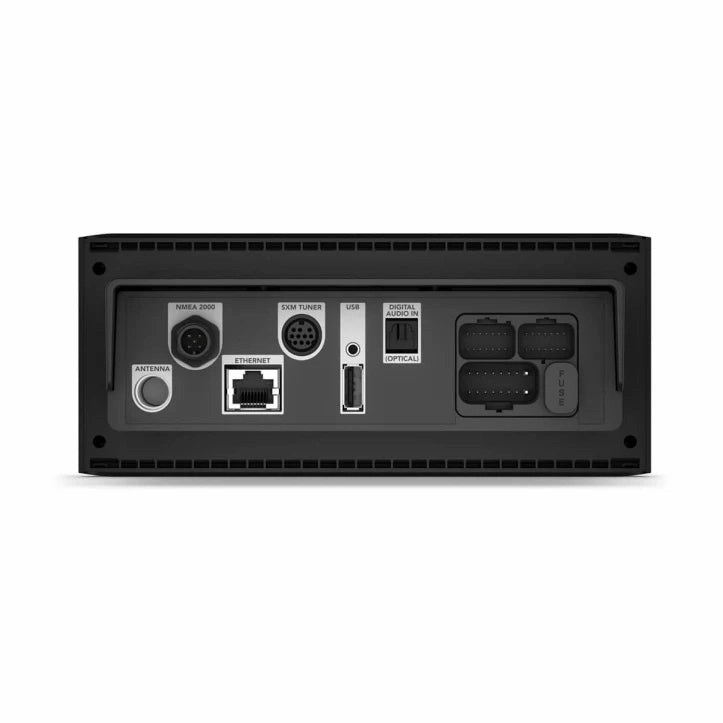

Connections

Auxiliary inputs (RCA): 2

Optical audio inputs (Digital Optical Input SPDIF): 1

Ethernet ports: 1

NMEA 2000 ports: 1

USB 2.0 ports: 1

SiriusXM ports: 1
