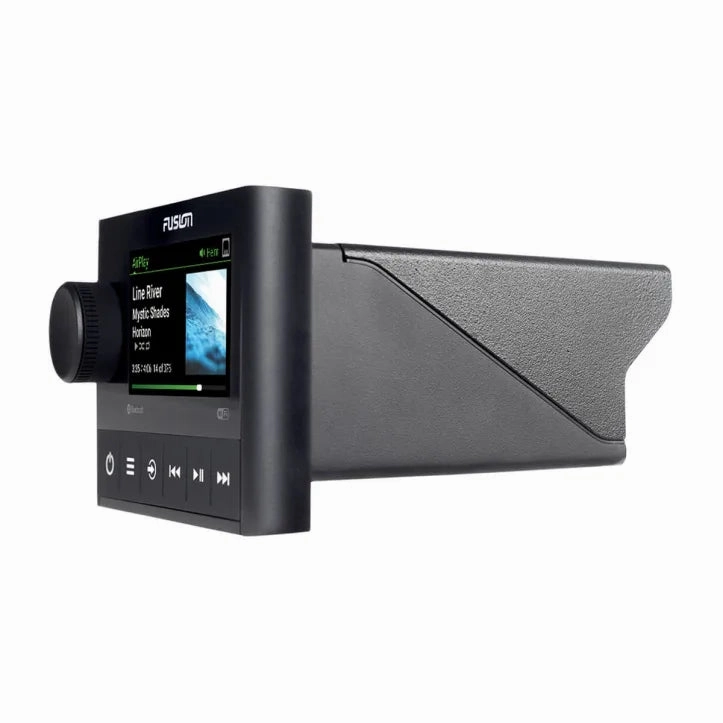

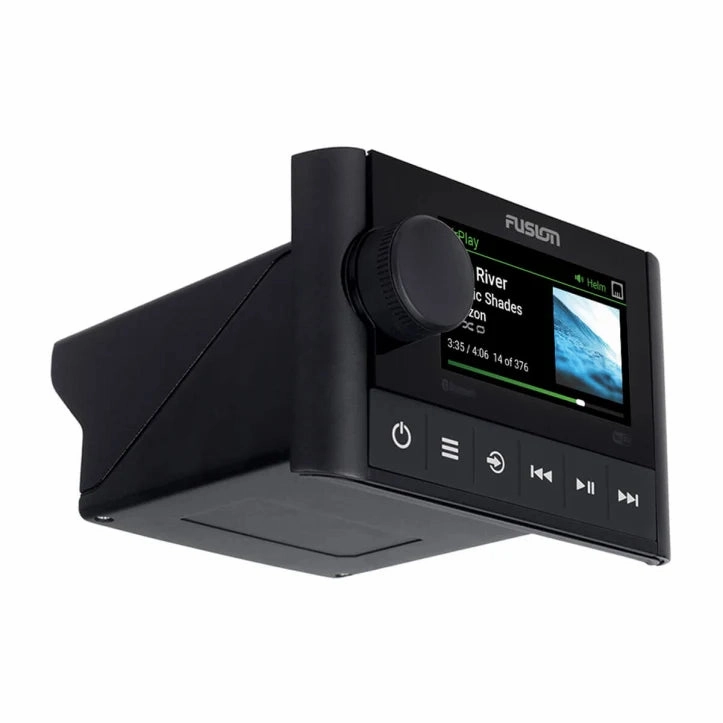

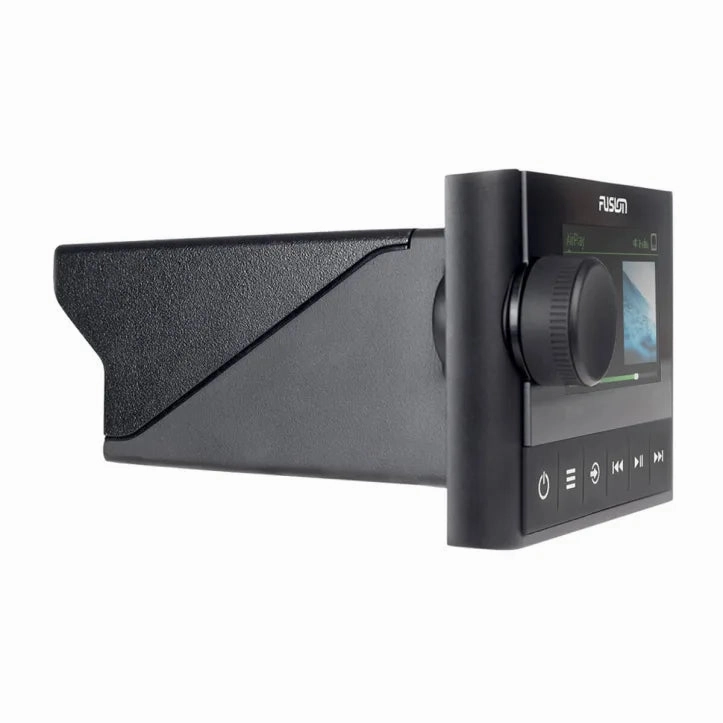

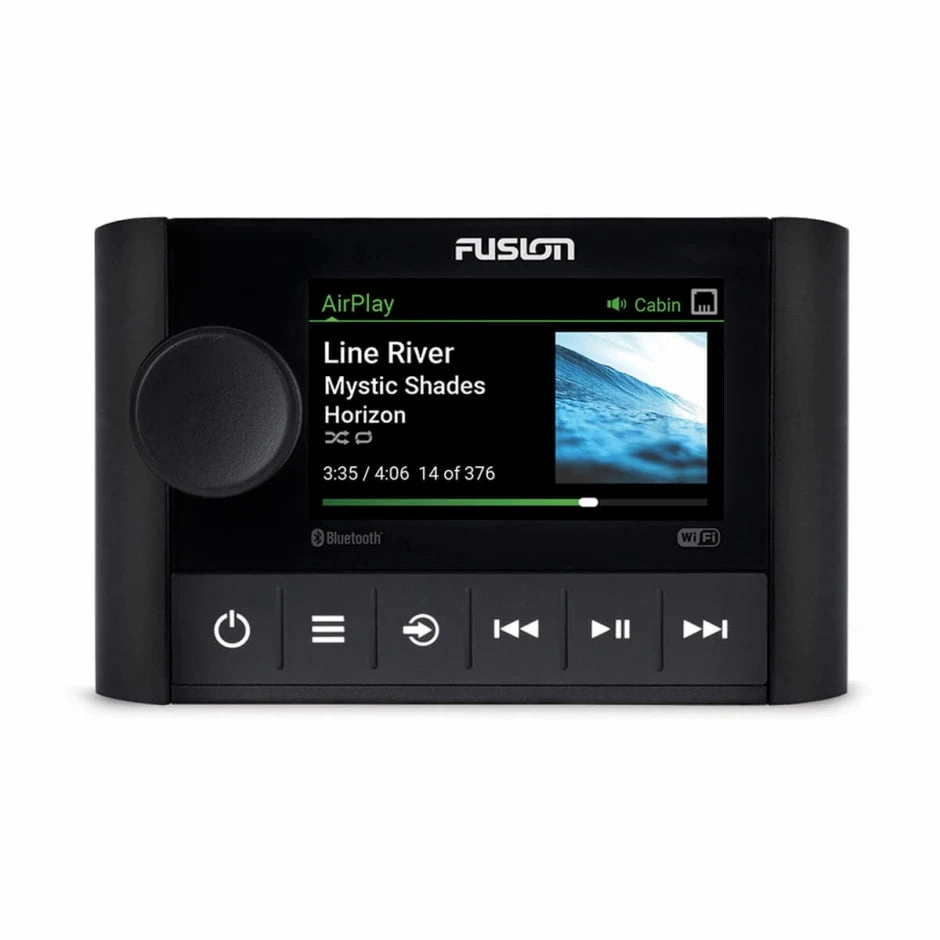

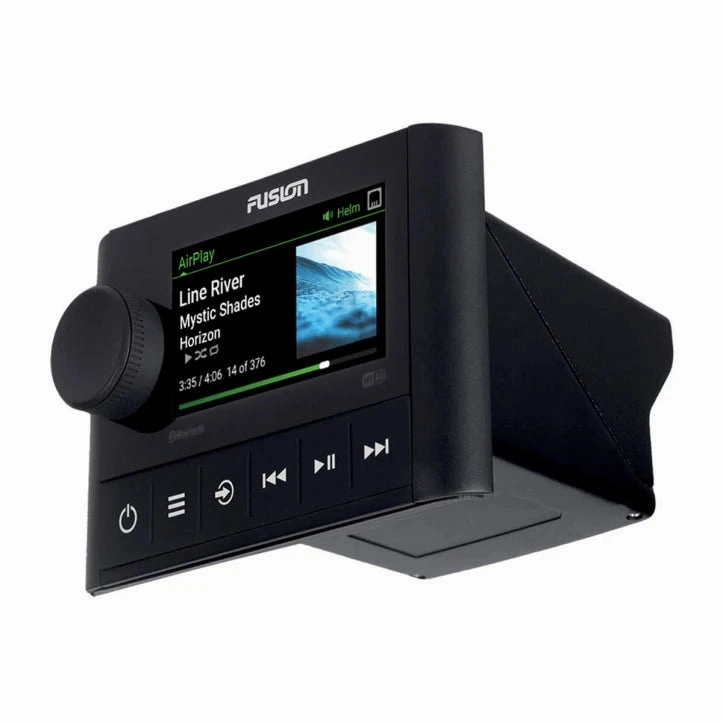

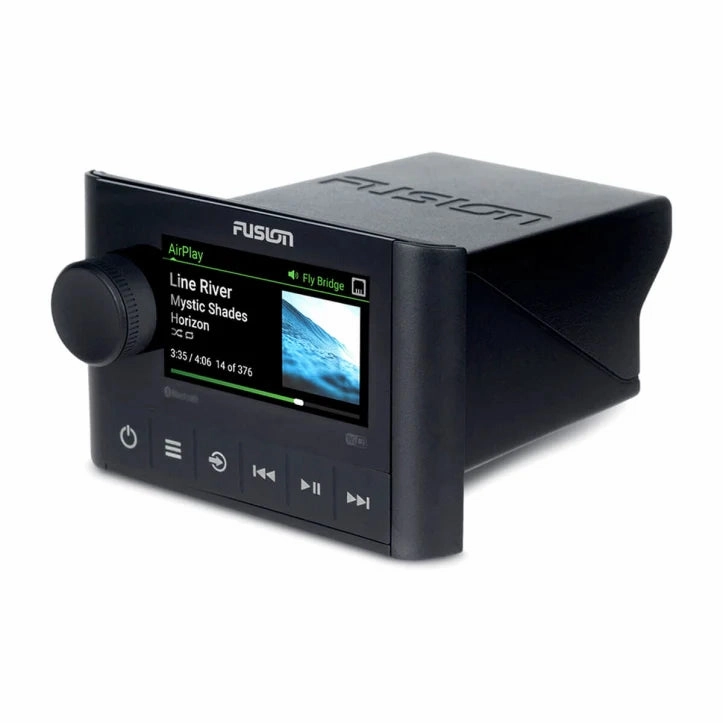

Garmin SRX400. Marine Stereo. Retail

SRX400 is the dedicated zone stereo perfected for Apollo RA770. engineered to TrueMarine standards to deliver superior sound quality no matter how rough the sea decides to get. Appealing to the modern aesthetics of your boat. the black front face blends in with the black glass panels at the helm to exude a sophisticated elegance in compact form.

Designed for the mariner in you. SRX400 boasts of IPX6 and IPX7 water resistant rating and is well protected against salt. fog. temperature. vibration and UV.

The compact form factor packs a punch with built-in Wi-Fi and ethernet that can stream high quality music with faster data transfer rate in any weather condition. Charm your guests with curated playlists to suit their fancy as you can now create custom audio profiles for each zone of your boat.

Your music app can now get a software update over-the-air via our free Fusion Audio App. Easy to install and easier to use. play high quality audio from your music app via the AirPlay2 software.

Specifications:

Stereo dimensions (H x W x D): 2.76 x 4.33 x 4.81

Weight: 12 oz

Water rating: IPX6 and IPX7 (Front panel only. when properly installed)

Power input: 10.8-16 VDC

Operating temperature range: 32 to 122 F (0 to 50 C)

Current (max.): 8 A

Bluetooth wireless range: Up to 30 ft (10 meters)

Wireless frequencies/protocols: Wi-Fi 2.4 GHz @ 15 dBm nominal. Bluetooth 2.4 GHz @ 10 dBm nominal

Compass-safe distance: 3.9 (100 mm)

Stereo Features

Display: 2.7 optically bonded color LCD

Built-in amplifier: Class-D (2 Ohm stereo-stable)

Peak power: 140 W

Rated power output (2 Ohm): 43 W rms x 2 @ 14.4 V input < 10% THD

Rated power output (4 Ohm): 26 W rms x 2 @ 14.4 V input < 10% THD

Built-in Digital Signal Processing: yes (with preconfigured DSP profiles)

PartyBus-Network capabilities: yes (wired or wireless)

Fusion-Link control: yes (with MFD and smartphone)

Multi-Zone technology: 1 zone

Built-in Wi-Fi: yes

Bluetooth wireless technology: yes

Multi-language interface: Bulgarian / Chinese (Simplified) / Chinese (Traditional) / Croatian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Italian / Japanese / Korean / Norwegian / Polish / Portuguese (BR) / Portuguese (PT) / Slovenian / Spanish / Swedish / Thai / Turkish

Software updates: Over-the-air software updates via the Fusion-Link app

Warranty: 3 years

Sources: AM / FM / Bluetooth / Apple AirPlay 2 / UPnP

Connectivity

Ethernet: One Ethernet port

AM/FM radio: One Motorola antenna connector port

Speaker: 2 x speaker connections (1 zone amplified)

RCA Pre-out (left. right and subwoofer): 1 zone (requires external amplification)

Line out: 1 (1 x L R per zone. requires external amplification)

Subwoofer out: 1 x mono output (requires external amplification)

What's in the Box:

1 x Fusion MS-SRX400 marine zone stereo

1 x Mounting gasket

1 x Mounting template

4 x 8-gauge. self-tapping screws

2 x screw covers

1 x Power. speaker. line-out. and subwoofer-out wiring harness

1 x Documentation
