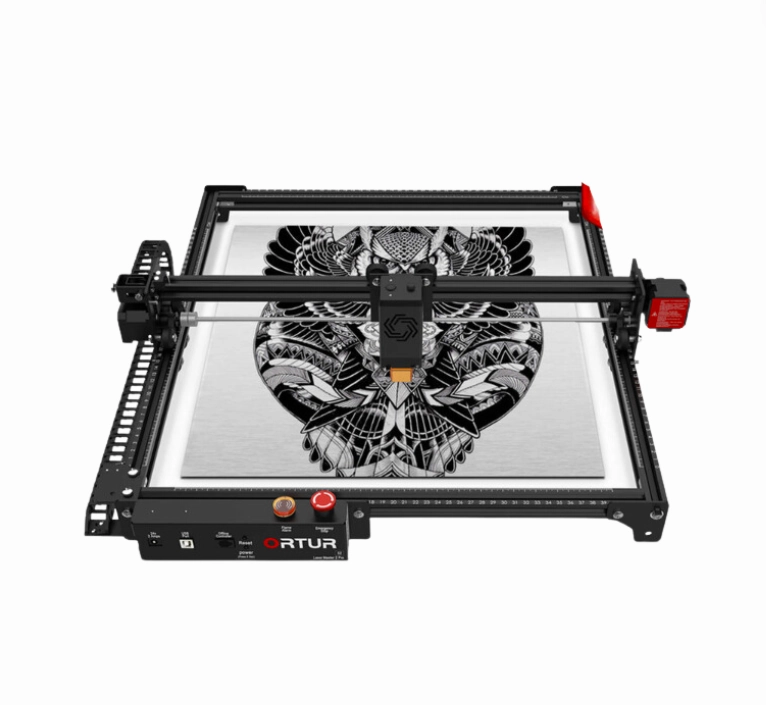

Ortur LM2 Pro S2 Laser Engraving & Cutting Machine 15.000mm/min 10W & 5W

Looking for an engraving and cutting machine. the Ortur LM2 Pro S2 is your best weapon?

The Ortur LM2 Pro has a sturdy aluminum profile frame and a maximum speed of up to 15.000mm/min. A very smooth operating machine. it weighs only 0.518 lb including the integrated air assist. dual fans. and foldable focal gauge.

The Ortur Laser Master 2 Pro S2 is the company's most recent engraving device. It comes in two types: LM2 Pro S2-SF and LM2 Pro S2-LF. both of which have significantly enhanced engraving and cutting capabilities. It has 4 safety features:

• Active position protection
• Stops working when the USB cable is disconnected
• Emergency stop switch and flame alarm
• Exposure time detection and limitation

The motion algorithm is optimized in the ESP32 MCU-compatible Ortur Laser 1.8 firmware. which also raises the maximum stepper motor speed from 4.000 mm/min to 15.000 mm/mm. It is perfectly compatible with the software LightBurn (paid). and LaserGRBL (free). It is compatible with Windows from XP to W10 / Linux / Mac OS and supports JPG / PNG / BMP / DXF / NC. etc.

With the Ortur LM2 Pro S2. get the best engraving experience possible with precision!

• Speed up to 15.000mm/min

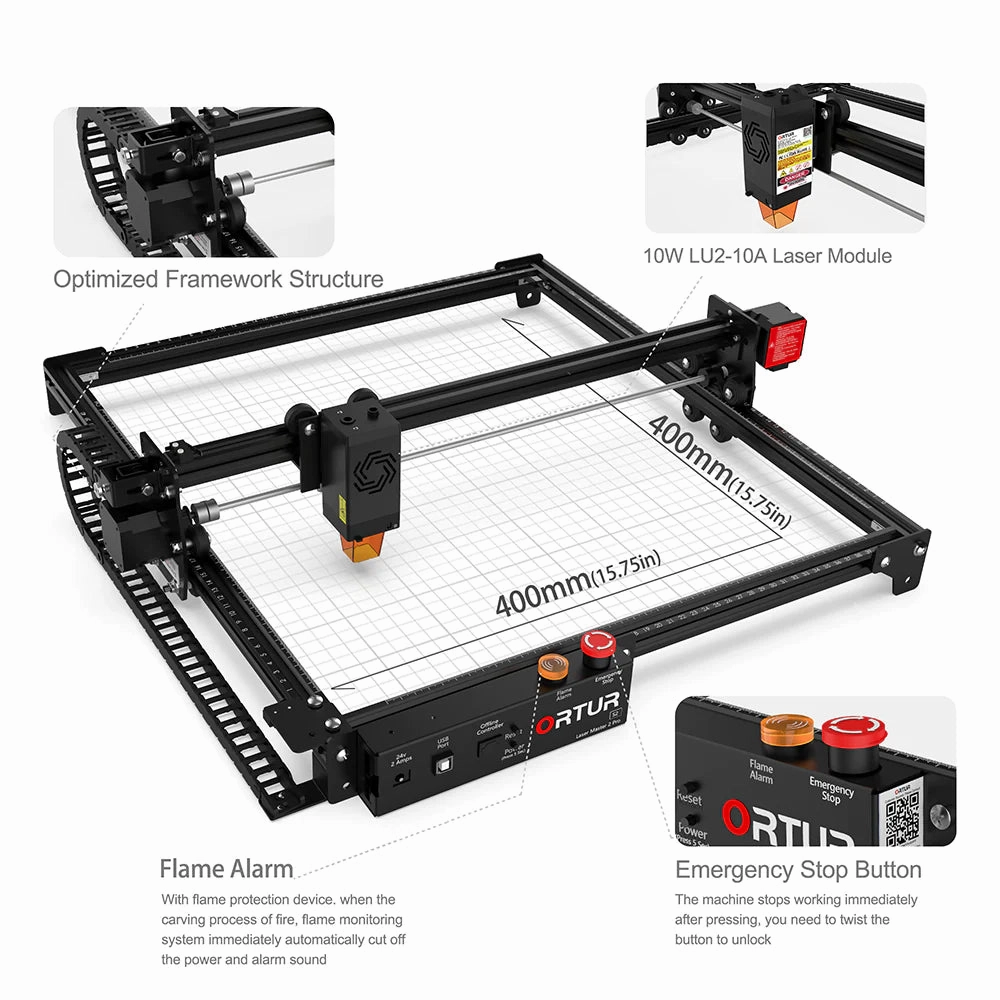

• 400mm*400mm Engraving area
• 4-Safety protections

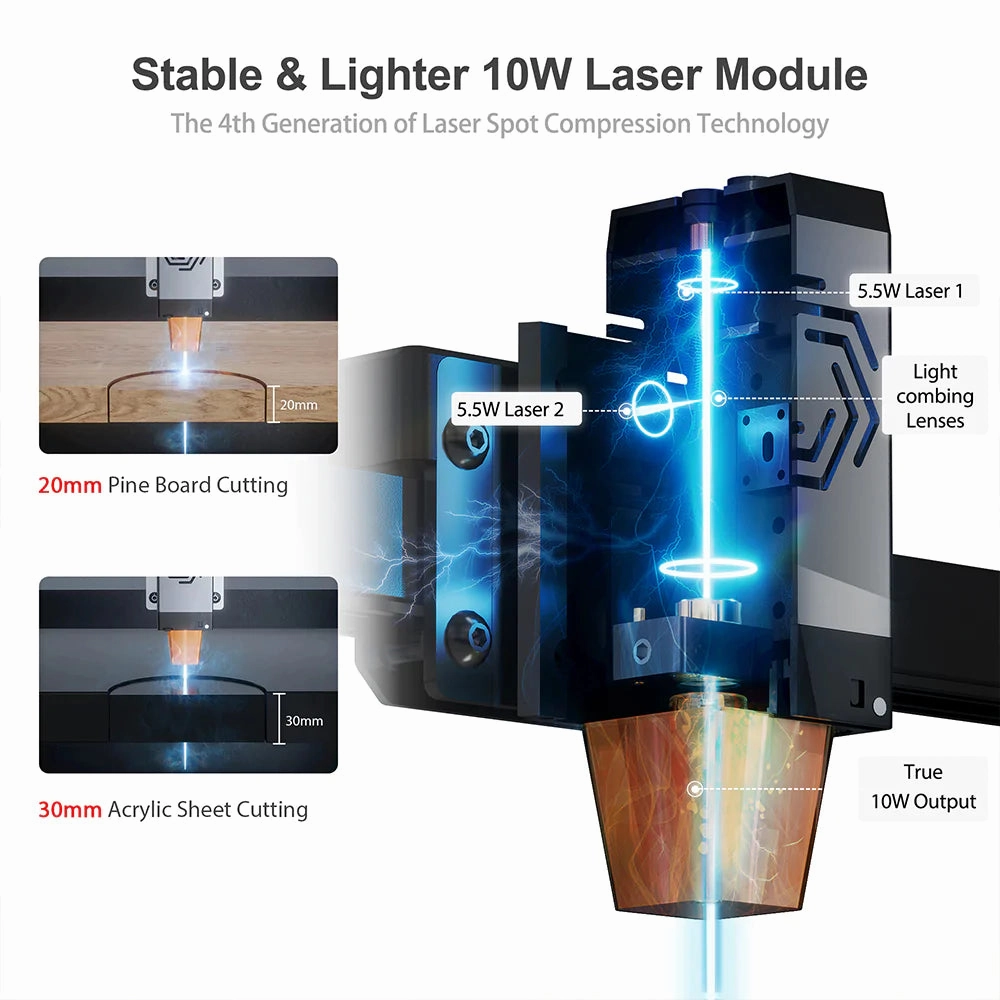

• 10W Laser power 0.05mm*0.1mm
• Enhanced grayscale
• Flame detector
• Emergency stop button
• 9th Ortur 32 Bit's Motherboard
• Ortur 1.8 Series Filmware
• Integrated air assist. foldable focal gauge. dual fans
• Precise
• Compatible with software LightBurn (Paid). LaserGRBL (Free)
• Full-body metal structure

SPECIFICATIONS:

Product Name: Ortur Laser Master 2 Pro S2

Certification: CE

Laser Power: LU2-2 Luminous Power 1-1.6W. Electrical Power 7W. LU2-4 SF/ LF Luminous Power 5-5.5W. Electrical Power 20W

Pixel Accuracy: Adjustable (Default: 300 pixels per inch. about 0.8um Pixel Accuracy)

Weight: 0.518 lb

Speed: Up to 15.000mm/min

Engraving Area: 400*400 mm

Product Size: 600*570*189mm

Safety Precautions: Active Position Protection. Exposure Duration Detection and Limitation. Laser Beam Safety Guard

File Format: JPEG/ JPG/ PNG/ BMP/ SVG/ ETC

Product Material: Aluminum Profile Sheet Metal

Rated Power: 24V 2A 48W

Control Software: LaserGRBL (Free) - Support only Windows OS; LightBurn (Not Free) - Support Windows. Mac. Linux

Warranty: 1 Year

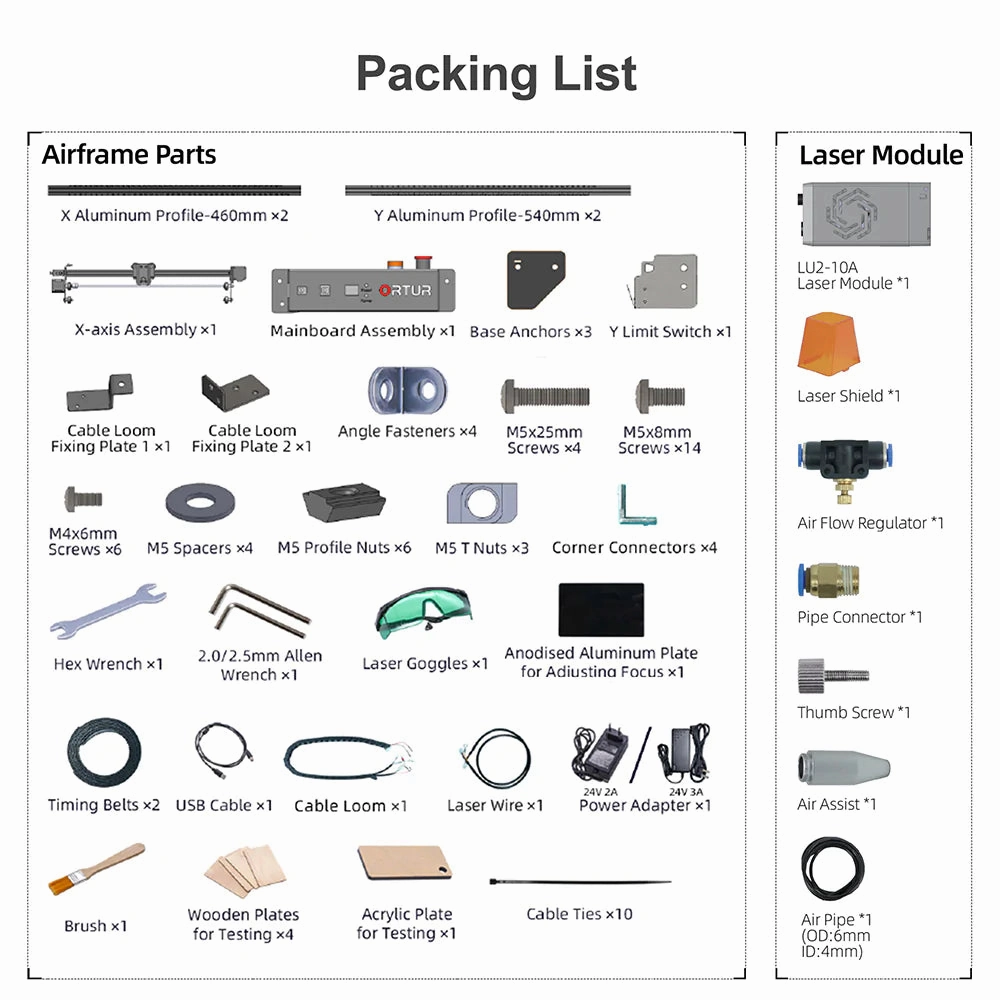

WHAT'S IN THE BOX:

2 x X-Aluminum Profile 460mm

2 x Y-Aluminum Profile 540mm

1 x X-Axis Assembly

1 x Mainboard Assembly

3 x base Anchors

1 x Y-Limit Switch

1 x Cable Loom Fixing Plate 1x1

1 x Cable Loom Fixing Plate 2x1

4 x Angle Fasteners

4 x M5x25mm Screws

14 x M5x8mm Screws

6 x M4x6mm Screws

4 x M5 Spacers

6 x M5 Profile Nuts

3 x M5 T Nuts

4 x Corner Connectors

1 x Hex Wrench

1 x 2.0/2.5mm Allen Wrench

1 x Laser Goggles

1 x Anodised Aluminum Plate for Aduistina Focus

2 x Timing Belts

1 x USB Cable

1x Cable Loom

1 x Laser Wire

1 x Power Adaptor (24V 2A; 24V 3A)

1 x Brush

4 x Wooden Plates for Brushing

1 x Acrylic Plate for Testing

10 x Cable Ties

1 x Lu2-10A Laser Module

1 x Laser Shield

1 x Air Flow Regulator

1 x Pipe Connector

1 x Thumb Screw

1 x Air Assist

1 x Air Pipe (6mm x 4mm)
