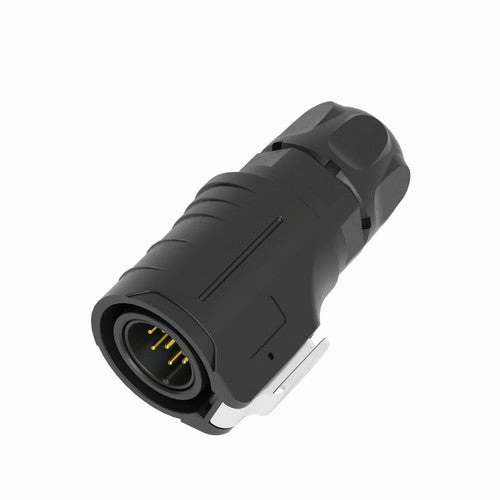

Renogy LP16 Terminator Plug (7-Pin) Male

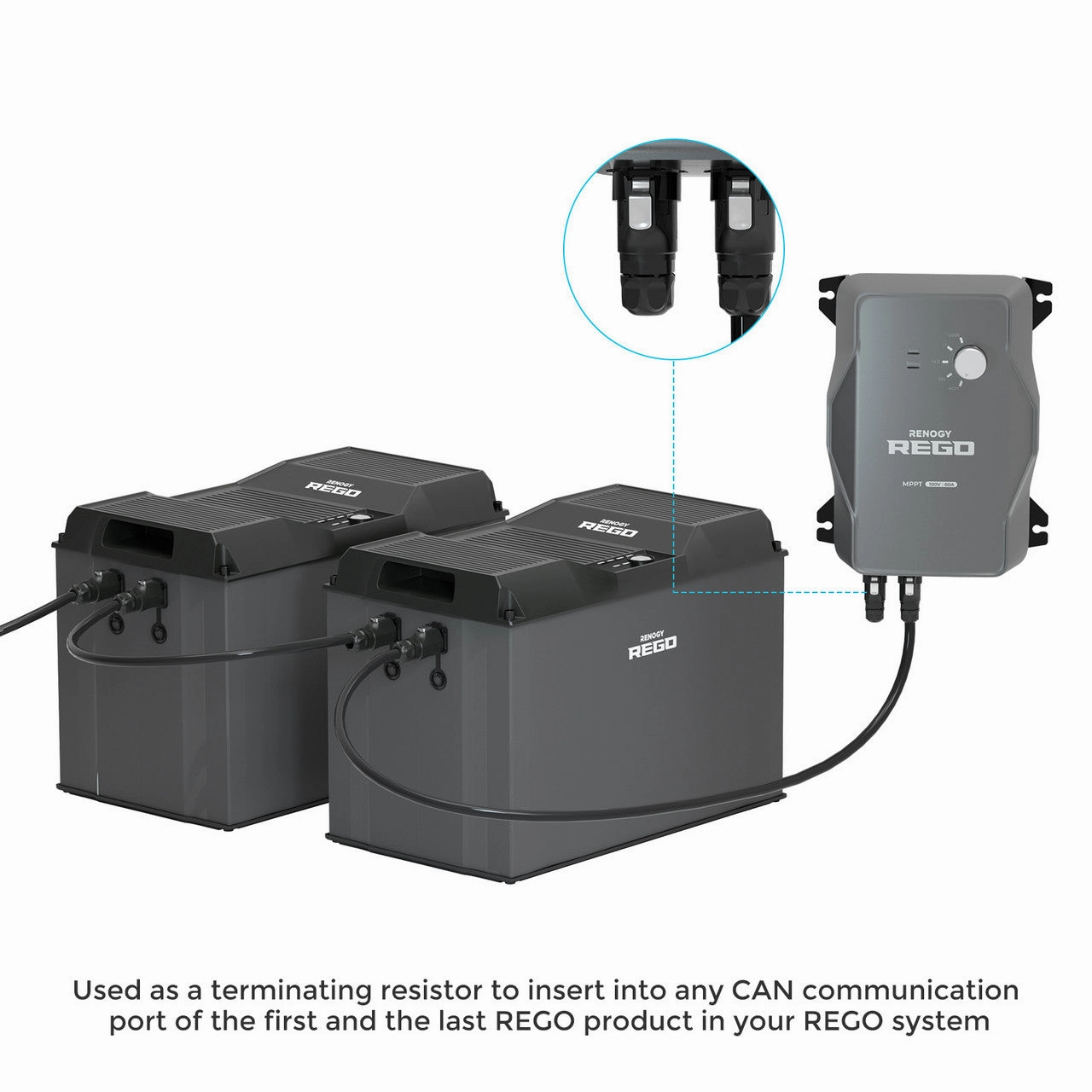

Enhance the system strength of your communication signal with Renogy LP16 Terminator Plug. a 7-pin Male resistor that can slip into any redundant CAN communication port in your REGO series products. it helps weaken and eliminate the reflection and echo of the signal.

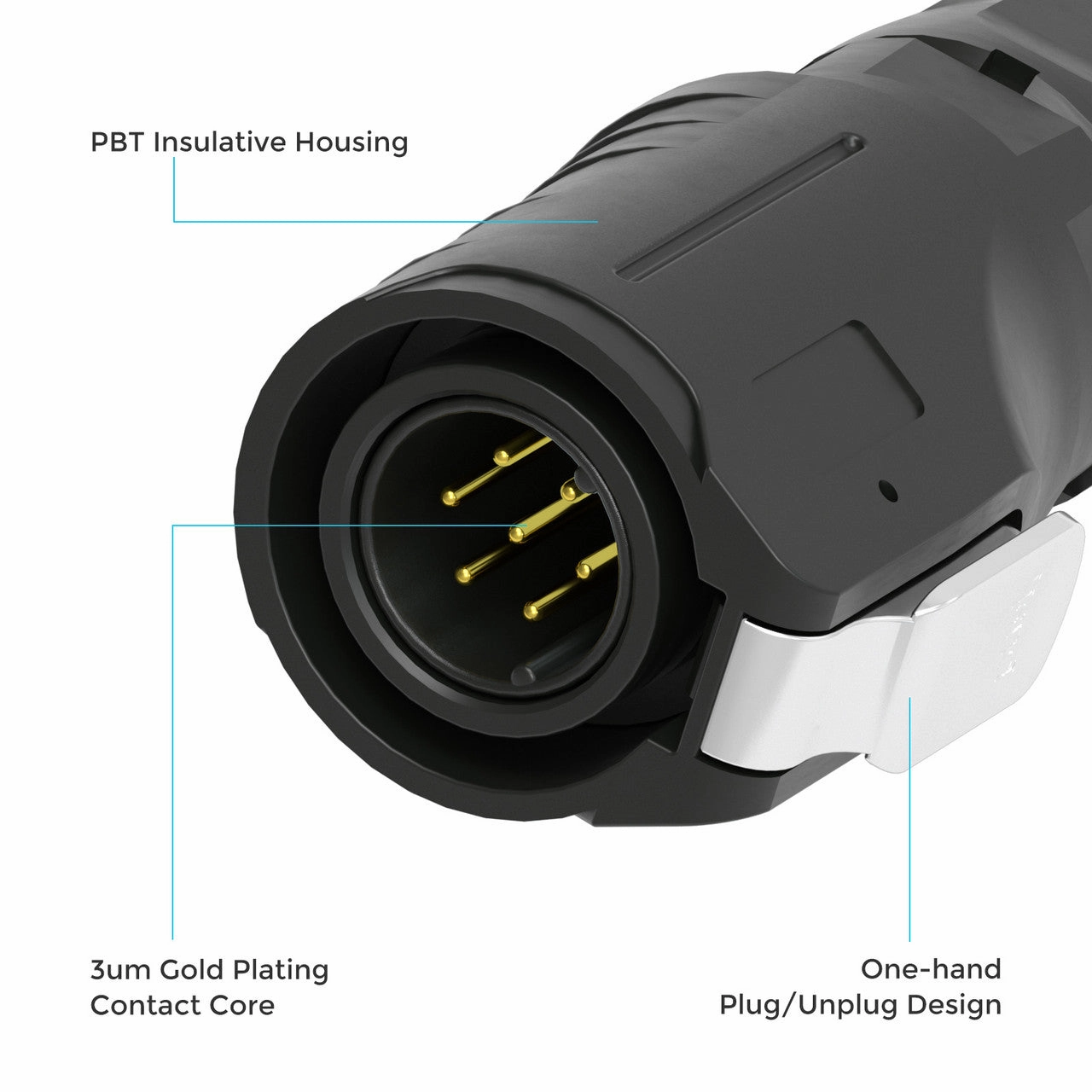

Renogy LP16 terminator is a plug and play design for quick and stable operation. LP16's contact core comes with a 3um gold plating that establishes a consistent. stable and efficient electrical performance.

An IP65 waterproof rating lets the Renogy LP16 weather harsh outdoors even as it continues to deliver high-quality performance.

Specifications:

Rated Current: 5A

Rated Voltage: 250V AC

Contact Diameter: 1.0mm*7

Rated Power Of Resistance: 1/4W

Resistance Value: 120

Life Cycle: 500 times

Temperature rise: 5A Per contact at 30K

Rated Temperature: -25C - 85C/-4-185

Dimensions: 2.13 x 0.9 x 1.18 in.

Weight: 0.05lbs

Certification: TUVULCQCROHS

Warranty: 1 year

What's in the Box:

1 x LP16 Terminator Plug (7-Pin)

1 x User Manual
