Shelly Dual Cover

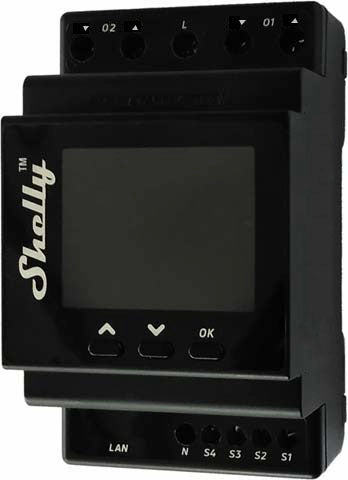

A smart dual-cover controller with power measuring capabilities. the Shelly Pro Dual Cover/Shutter PM is designed to be mounted on a DIN rail. With enhanced LAN connectivity and gen2 firmware flexibility. it offers professional integrators a greater range of end-user solution possibilities. It can be controlled by cloud home automation services or run independently in a local Wi-Fi network.
As long as the Shelly Pro Dual Cover PM is linked to both a Wi-Fi router and the Internet. it may be viewed. managed. and watched remotely from any location where the user has Internet access.
An incorporated web interface on the Shelly Pro Dual Cover PM allows for device control and monitoring in addition to setup adjustments. Controlling motorized blinds. curtains. and roller shutters. remote control of parking gates. controlling barriers. sliding doors. and curtains is a breeze with the Shelly Cover.
Main Applications
Residential
MDU (Multi-Dwelling Units - apartments. condominiums. hotels. etc.)
Light commercial (small office buildings. small retail/restaurant/gas station. etc.)
Industrial (factories. power plants. water processing. refineries. etc.)
Government/Municipal
University/college

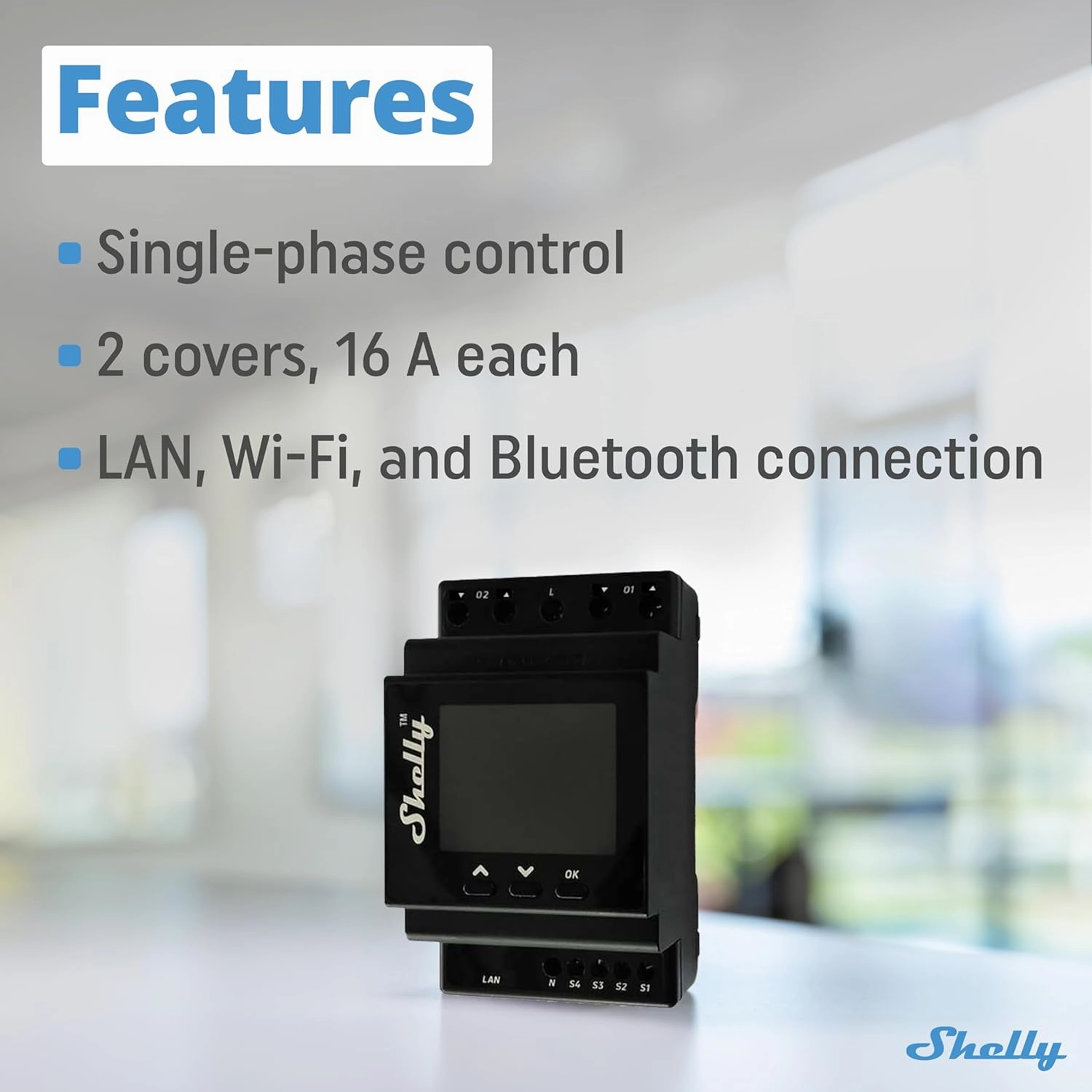

Highlights:
LAN. Wi-Fi. and Bluetooth connection
2 Covers/shutters. 16 A each
Power metering on each cover and free storage data

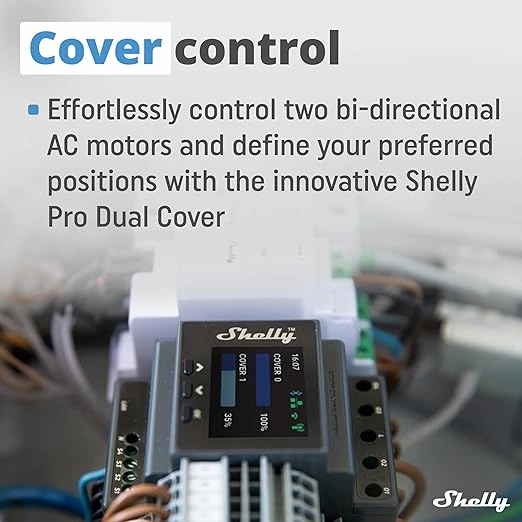

Cover (roller) control - roller shutters. awnings. gates. barriers. sliding doors. curtains. garage doors. bi-directional AC motors
Single-phase control
Easy control through the Shelly app. various protocols. and platforms. as well as voice assistants
Connectivity via Wi-Fi. Ethernet. Bluetooth
Safety features include protection against overheating. overvoltage. overcurrent. and overpower
SPECIFICATIONS:
Size (H x W x D): 96x53x59 0.02 mm / 3.78x2.01x2.32 0.02 in
Mounting: DIN Rail
Screw Terminals Max Torque: 0.4 Nm / 3.5 lbin (green connectors)
Conductor Cross Section: 0.5 to 2.5 mm / 20 to 14 AWG (green connectors)
Conductor Stripped Length: 6 to 7 mm / 0.24 to 0.28 in (green connectors)
Shell Material: Plastic
Color: Black
Environmental Ambient Temperature: -20 C to 40 C / -5 F to 105 F
Humidity: 30 % to 70 % RH
Max. Altitude: 2000 m / 6562 ft
Power Supply Voltage AC: 110 - 240 V
Power Supply Voltage DC: N/A
Power Consumption: < 4 W
Neutral Not Needed: No
Max Switching Voltage AC: 240 V
Max Switching Voltage DC: N/A
Max Switching Current AC: 16 A per channel. 40 A total
Max Switching Current DC: N/A
Voltmeter (AC): Yes
Ammeter (AC): Yes
Internal Temperature Sensor: Yes
RF Band: 2400 - 2495 MHz
Max. RF power: <20 dBm
Wi-Fi Protocol: 802.11 b/g/n
Wi-Fi Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
Bluetooth Protocol: 4.2
Bluetooth Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depending on local conditions)
CPU: ESP32-D0WDQ6
Flash: 8 MB
Schedules: 20
Webhooks (URL Actions): 20 with 5 URLs per hook
Scripting: Yes
MQTT: Yes
CoAP: No
WHAT'S IN THE BOX:
1 x Shelly Cover
