Name: Tp-Link AXE5400 Wi-Fi 6E Range Extender
SKU: 329940

Product Details ＋

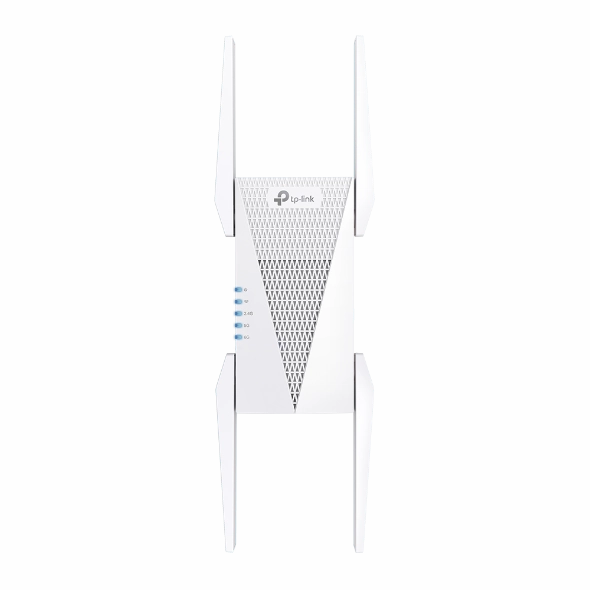

Tp-Link AXE5400 Wi-Fi 6E Range Extender

Tp-Link introduced the AXE5400. a Wi-Fi 6E Range Extender. that captures your existing wi-fi. amplifies and rebroadcasts it to every nook and corner of yournest. making your home smartness personified.

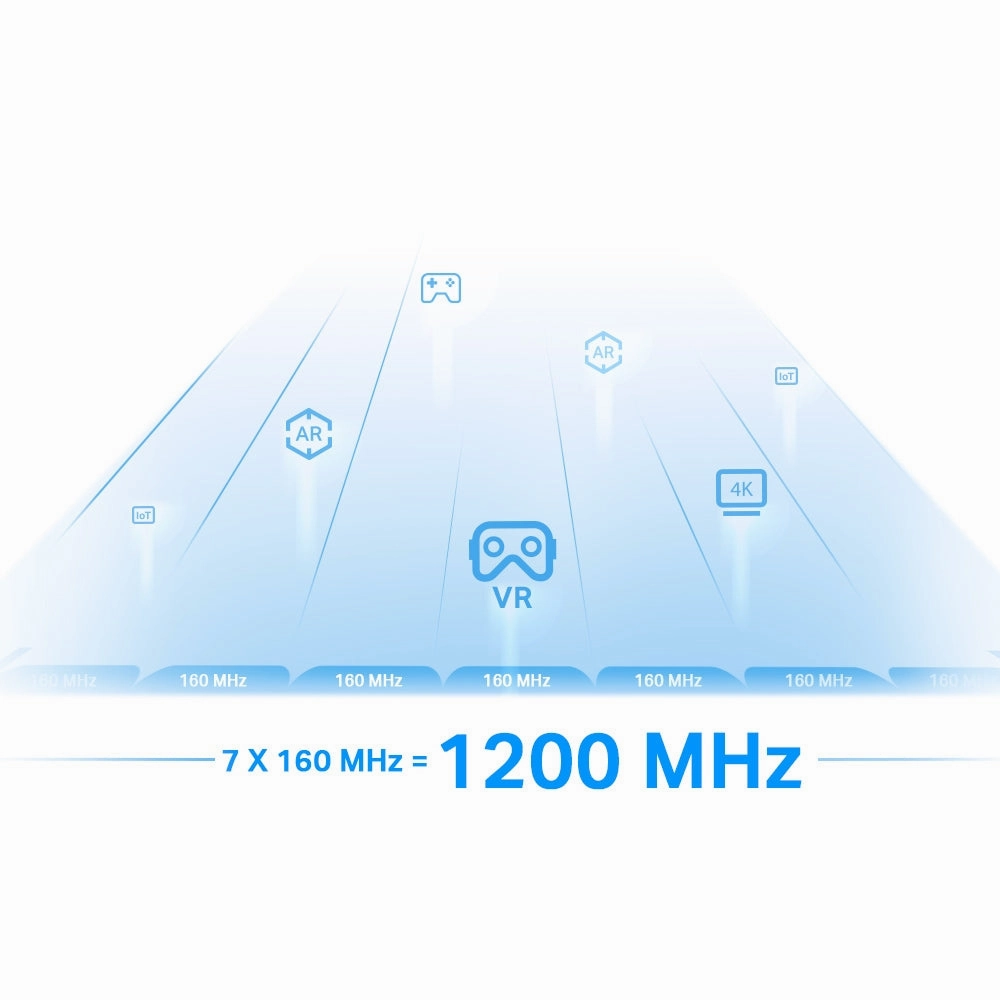

At an incredible 5400 Mbps. experience flawless streams. from top-notch series to heart-thumping live concerts. watch your shows the way they were meant to be watched. The lightning fast AXE5400 offers 6 GHz frequency at 160MHz bandwidth giving you an available spectrum of 1200 MHz.

Taking advantage of its tri-band reach. every connected device in your home receives phenomenal connectivity and you can power up to a whopping 96 devices in one go.

Features:

Tri-band Mesh Wi-Fi boosts overall speed
Doubles your traditional speed of 80MHz to a 160MHz channel bandwidth
Plug and play Tether App for easy control
Stay connected 24/7. at every sq. in. of every room
Lower latency. higher throughput. faster speeds
Empowers up to 96 devices
6 times broader coverage

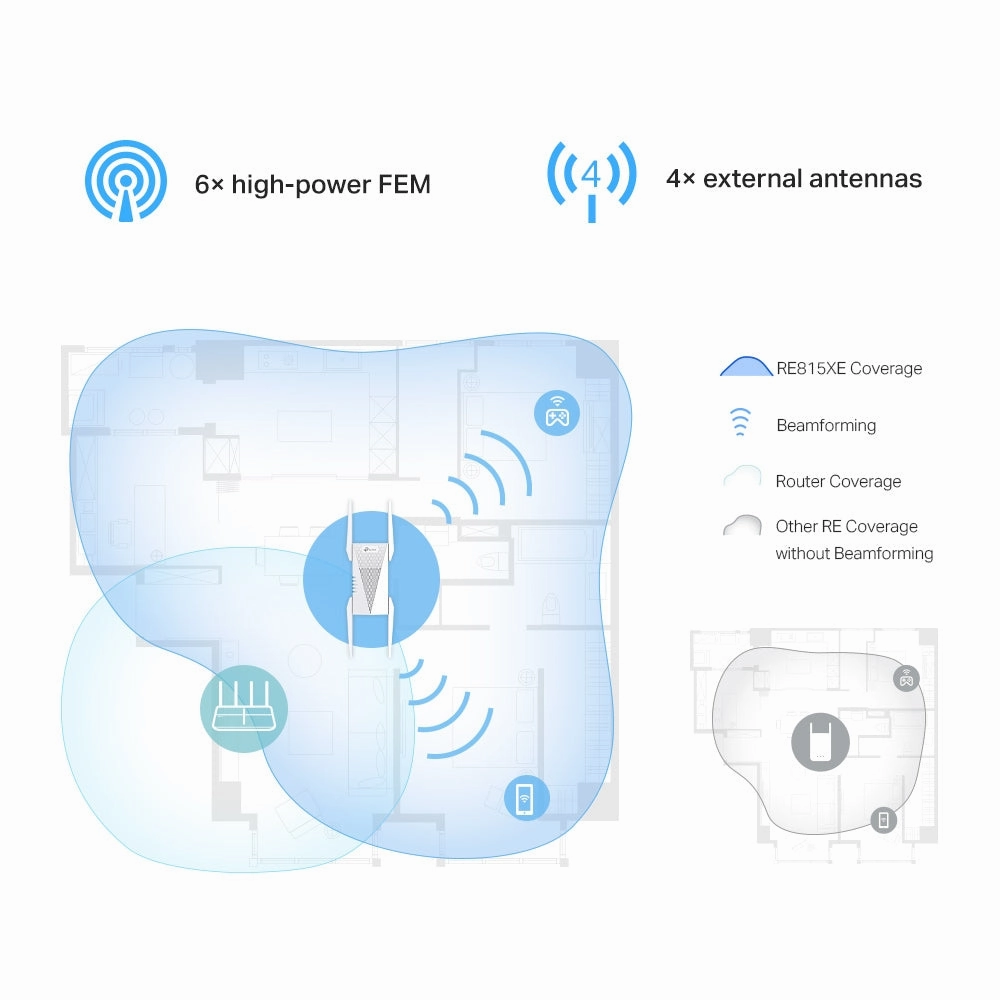

Beamforming technology to locate devices
OneMesh tech for seamless signal switching
Built-in access point mode

Specifications:

HARDWARE

Ports: 1 Gigabit Ethernet Port

Button: WPS Button. Reset Button

Input Power: 100-240V~50/60Hz

Power Consumption: 23W

Dimensions (W x D x H): 4.21.613.7 in.

Antenna: 4 External Antennas

WIRELESS

Working Modes: Range Extender/Access Point

Wireless Standards: IEEE 802.11ax 6 GHz. IEEE 802.11a/n/ac/ax 5 GHz. IEEE 02.11b/g/n/ax 2.4 GHz

Frequency: 2.4GHz and 5GHz and 6GHz

Signal Rate: 574 Mbps at 2.4 GHz. 2402 Mbps at 5 GHz. 2402 Mbps at 6 GHz

Reception Sensitivity:

6GHz:
11ax HE20 MCS0-92dBm. 11ax HE20 MCS11-61dBm
11ax HE40 MCS0-89dBm. 11ax HE40 MCS11-58dBm
11ax HE80 MCS0-86dBm. 11ax HE80 MCS11-55dBm
11ax HE160 MCS0-83dBm. 11ax HE160 MCS11-52dBm

5GHz:
11ax HE20 MCS0-93dBm. 11ax HE20 MCS11-62dBm
11ax HE40 MCS0-90dBm. 11ax HE40 MCS11-59dBm
11ax HE80 MCS0-87dBm. 11ax HE80 MCS11-56dBm
11ax HE160 MCS0-84dBm. 11ax HE160 MCS11-53dBm

2.4GHz:
11ax HE20 MCS0-95dBm. 11ax HE20 MCS11-64dBm
11ax HE40 MCS0-92dBm. 11ax HE40 MCS11-62dBm

Wireless Functions: LED Control. Access Control. Power Schedule. Wi-Fi Coverage

Wireless Security: 64/128-bit WEP. WPA/WPA-PSK2 encryptions. WPA3

Transmission Power: FCC: 2.4GHz < 30dBm. 5GHz < 30dBm. 6GHz < 30dBm

OTHERS

Certification: FCC. RoHS

System Requirements: Microsoft Windows 98SE. NT. 2000. XP. Vista or Windows 7. 8. 8.1. 10. MAC OS. NetWare. UNIX or Linux Internet Explorer 11. Firefox 12.0. Chrome 20.0. Safari 4.0. or Java-enabled browser

Environment:

Operating Temperature: 0~40 (32 ~104)
Storage Temperature: -40~70 (-40 ~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
