Name: Tp-Link Router - Archer AX95 - Wired - 2.5Gbps - Gigabit Ethernet - Networking / Ports Qty: 5 - 2.4 GHz;5 GHz;6GHz - 1.7GHz
SKU: 330074

Product Details ＋

Tp-Link Router - Archer AX95 - Wired - 2.5Gbps - Gigabit Ethernet - Networking / Ports Qty: 5 - 2.4 GHz;5 GHz;6GHz - 1.7GHz

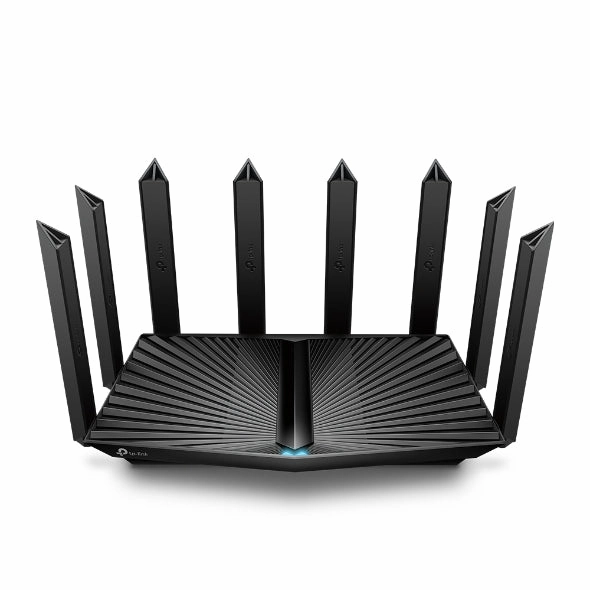

The Archer AX95 from TP-Link Router looks straight out of the GOT gaming screen. with an uber cool arena set up boasting of 8 antennas and multiple USB ports. the fastest Tri-Band in Wi-Fi scenario.

Experience seamless streaming. gaming and downloading atultimate speeds on all your devices in one go with TP-Link Archer AX95 that delivers doubled throughput of 160MHz channel perfect forall high-end streaming.

The Tri-band. 8 stream. wi-fi 6 router guarantees 3 levels of signal boosting with 8 x high-performance antennas. 8 x high-power FEM and beamforming covering the widestarea with 2.5 Gbps lighting speeds. so every nook and corner of your home is a smart zone.

TP-Link's smart connect is intelligent enough to assign multiple devices to the required Wi-Fi bandwidth. eliminating congestion in your network. dispersing simultaneous data streams at 7.8 Gbps speeds.

Designed with multi-gig wired connections. Archerbreaks through the 1G bottlenecktypical to wired devices and brings them up to match Wi-Fi speeds.

Features:

Achieve brilliant speeds during heaviest transmission loads at minimal latency with high performance Quad-Core 64-Bit 1.7 GHz CPU
Beamforming tech picks devices that need the signals and redirectsWi-Fi to achieve optimal speeds
Connect up to 200 devices
MU-MIMO in placewith 4 x 4 connections to reduce wait time
OFDMA dynamically caters to multipledevices through asingle channel
OneMesh wholesome coverage for your whole home
TP-Link HomeShield security to protect your data and privacy

Specifications:

WIRELESS

Standards: Wi-Fi 6 -IEEE 802.11ax/ac/n/a 5 GHz.IEEE 802.11ax/n/b/g 2.4 GHz

Wi-Fi Speeds: AX7800 -5 GHz-1: 4804 Mbps (802.11ax. HE160).5 GHz-2: 2402 Mbps (802.11ax).2.4 GHz: 574 Mbps (802.11ax)

Wi-Fi Range:

4 Bedroom Houses
8 Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range

High-Power FEM
Improves transmission power to strengthen signal coverage

4T4R
Multiple stream:s in the same band strengthen the fault tolerance in transmission

Wi-Fi Capacity:

Very High
Tri-Band
Allocate devices to different bands for optimal performance

44 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation

DFS
Access an extra band to reduce congestion

8 Streams
Connect your devices to more bandwidth

Working Modes: Router Mode.Access Point Mode

HARDWARE

Processor: 1.7 GHz Quad-Core CPU

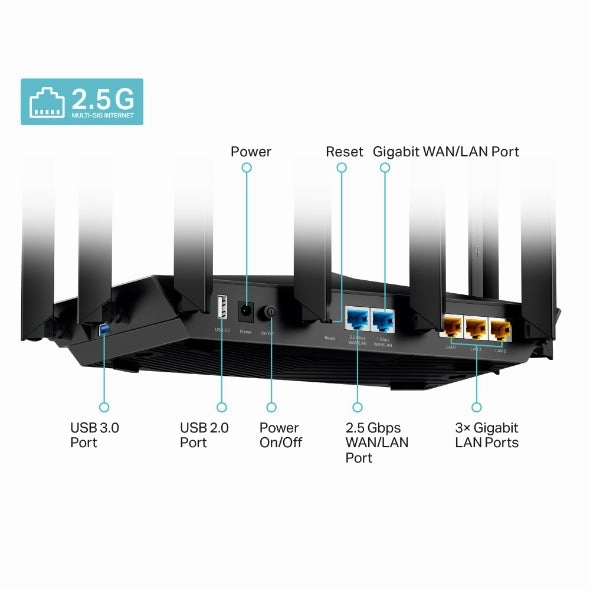

Ethernet Ports: 1 2.5 Gbps WAN/LAN Port.1 1 Gbps WAN/LAN Port.3 1 Gbps LAN Ports

USB Support: 1 USB 3.0 Port.1 USB 2.0 Port. Supported Partition Formats:NTFS. exFAT. HFS . FAT32.Supported Functions:FTP Server.Media Server.Samba Server

Buttons: LED On/Off Button. WPS Button.Wi-Fi On/Off Button.Power On/Off Button.Reset Button

Power :12 V 3.3 A

SECURITY

Wi-Fi Encryption: WPA.WPA2.WPA3.WPA/WPA2-Enterprise (802.1x)

Network Security: SPI Firewall. Access Control.IP & MAC Binding.Application Layer Gateway

HomeShield Security: Real-Time IoT Protection.Malicious Site Blocker. Intrusion Prevention System.DDoS Attack Prevention.Home Network Scanner

Guest Network: 1 5 GHz-1 Guest Network.1 5 GHz-2 Guest Network.1 2.4 GHz Guest Network

VPN Server: OpenVPN. PPTP.L2TP

VPN Client: OpenVPN.PPTP.L2TP

SOFTWARE

Protocols: IPv4.IPv6

Service Kits: HomeShield

OneMesh: OneMesh Supported Without replacing your existing devices or buying a whole new WiFi ecosystem. OneMesh helps you create a more flexible network that covers your entire home with TP-Link OneMesh products.

Parental Controls: HomeShield Parental Controls.Custom Profiles.Professional Content Filter Library.Family Time.Bedtime.Off Time.Time Rewards.Family Online Time Ranking.Pause the Internet.Weekly and Monthly Reports

WAN Types: Dynamic IP.Static IP.PPPoE.PPTP.L2TP

Quality of Service: QoS by Device

Cloud Service: Auto Firmware Upgrade. TP-Link ID. DDNS

NAT Forwarding: Port Forwarding.Port Triggering.DMZ.UPnP

IPTV: IGMP Proxy.IGMP Snooping.Bridge.Tag VLAN

DHCP: Address Reservation.DHCP Client List.Server

DDNS: TP-Link.NO-IP.DynDNS

Management: Tether App.Webpage

OTHERS

Dimensions (WDH) 10.9 7.2 2.3 in

System Requirements: Internet Explorer 11 . Firefox 12.0 . Chrome 20.0 . Safari 4.0 . or other JavaScript-enabled browser.Cable or DSL Modem (if needed).Subscription with an internet service provider (for internet access)

Certifications: FCC. CE. RoHS

Environment:

Operating Temperature: 0~40 (32 ~104)
Storage Temperature: -40~70 (-40 ~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

TEST DATA

Wi-Fi Transmission Power:

FCC:
30dBm (5.17GHz~5.25GHz);
23dBm (5.25GHz~5.35GHz);
23dBm (5.49GHz~5.725GHz);
28dBm (5.725GHz~5.825GHz);
28dBm (2.4GHz)

CE:
23dBm EIRP (5.17GHz~5.35GHz);
30dBm EIRP (5.47GHz~5.725GHz);
20dBm EIRP (2.4GHz)

Wi-Fi Reception Sensitivity:

2.4 GHz:
11ac VHT20 MCS0: -98dBm. 11ac VHT20 MCS11: -66dBm.
11ac VHT40 MCS0: -96dBm. 11ac VHT40 MCS11: -64dBm.
11ax HE20 MCS0: -95dBm. 11ax HE20 MCS11: -64dBm.
11ax HE40 MCS0: -93dBm. 11ac HE40 MCS11: -62dBm

5 GHz:
11ac VHT20 MCS0: -94dBm. 11ac VHT20 MCS11: -63dBm.
11ac VHT40 MCS0: -93dBm. 11ac VHT40 MCS11: -61dBm.
11ac VHT80 MCS0: -89dBm. 11ac VHT80 MCS11: -58dBm.
11ac VHT160 MCS0: -84dBm. 11ac VHT160 MCS11: -53dBm.
11ax HE20 MCS0: -92dBm. 11ax HE20 MCS11: -60dBm.
11ax HE40 MCS0: -89dBm. 11ax HE40 MCS11: -58dBm.
11ax HE80 MCS0: -86dBm. 11ax HE80 MCS11: -55dBm.
11ax HE160 MCS0: -84dBm. 11ax HE160 MCS11: -53dBm
