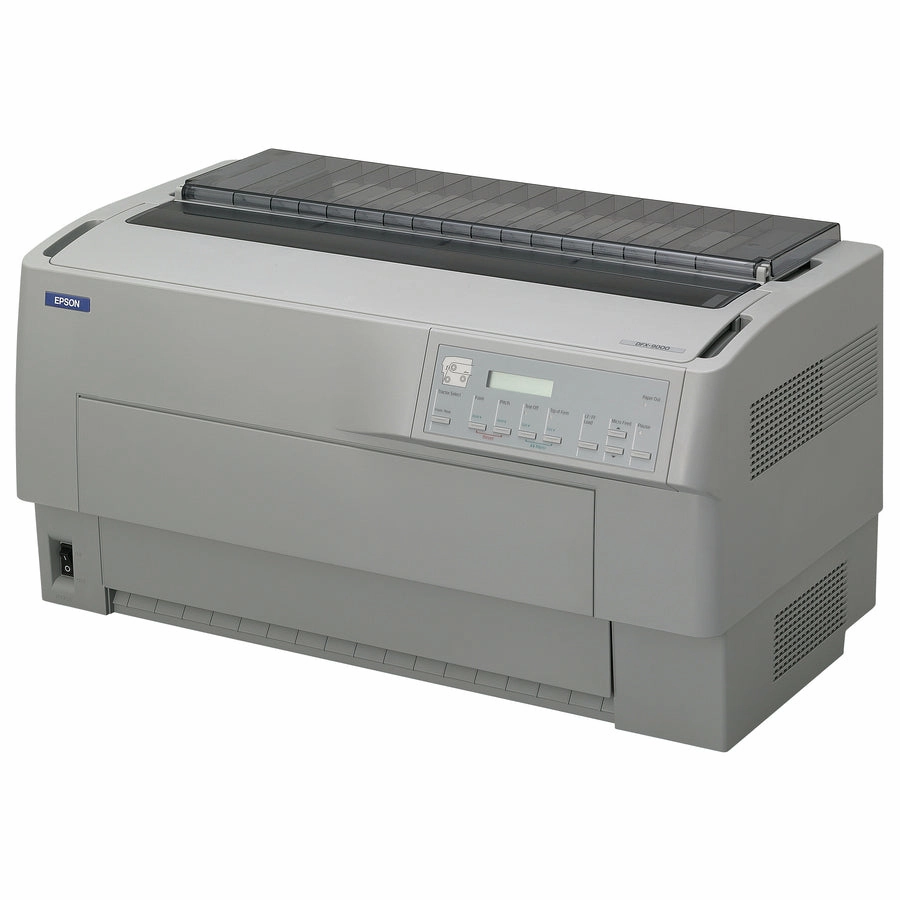

Epson DFX-9000 Dot Matrix Printer Title

A robust. dependable. and fast printing dot matrix printer from Epson. the DFX-9000 boasts a 400-million-character print head life and 15-million-character ribbon cartridge that minimizes production cost and frequent intervention.

Its sophisticated paper handling capabilities make it ideal for a wide range of applications. including vital spreadsheets. checks. invoices. bar codes. and other documents. You can rely on it to process everything from reports and 10-part forms to shipping paperwork and mailing labels quickly and efficiently.

With typical Parallel. Serial. and USB ports. as well as a Type-B slot for extra connectivity. it's fully networkable. In standalone or networked situations. the DFX-9000 connects quickly to new or legacy systems. With its accessible LCD display and straightforward menu selections. setup is a breeze.

The Epson DFX-9000 has the power and endurance to handle the most demanding print workloads. with speeds up to 1550 cps and an MTBF of 20.000 power-on hours (POH).

• 9-Pin Dot Matrix Printer
• Fastest printer with speed up to 1550cps (10 cpi)
• Advanced paper handling with dual paper paths
• Extreme durability with 20.000 hour MTBF at 25% duty cycle
• Print head life of 400-million-character
• The ribbon cartridge with 15 million characters ensures low printing costs and avoids the need for frequent user involvement.
• Prints up to 10-part forms
• Optional network connectivity
• Convenient LCD display
• Prints 136-column. wide-format reports. plus forms up to 10 parts thick
• Auto jam sensor

Experience breathtakingly fast and high-quality prints with the Epson DFX-9000 Dot Matrix printer. ideal for a wide variety of applications. including critical spreadsheets. checks. invoices. bar codes. and more.

SPECIFICATIONS:

Product Model: DFX-9000

Print Color Capability: Monochrome

Maximum Mono Print Speed (cps): 1550

Number of Pins: 9-pin

Number of Columns: 136

Print Direction: Bi-directional

Standard Memory: 128 KB

Parallel Port: Yes

Serial Port: Yes

USB: Yes

USB Standard: USB 1.1

Display Screen Type: LCD

Media Type: Continuous Form. Multiple Part Form. Label

Media Size: Custom Size. 3. 16.50. 17. 2.50 x 0.94

Media Handling: Push Tractor-Rear/ Front

Maximum Print Size: 17

Language Emulation: Epson ESC/P. PPDS

MTBF: 20000 Hour

Duty Cycle: 100000

Software Drivers: Windows 95. 98SE. 2000. Me. XP. NT 4.0

Power Source: AC Supply

Input Voltage: 230 V AC. 120 V AC

Operating Power Consumption: 200 W

Form Factor: Desktop

Color: White

Print direction (Graphics Mode): Unidirectional (bidirectional via software)

Character Sets: 11 character tables. 13 international character sets

Sound Level: 58 dBA

Dual push tractors/paper paths: Automatic back-out and loading

Automatic paper thickness adjustment: Yes

Automatic paper width detection: Yes

Micro adjustment for top-of-form and tear-off mode: Yes

Adjustable tractor feed: Yes

OPTIONAL interfaces (Not included): Twinax. Coaxial. Fast Ethernet

Paper Handling:

Labels: 2.5 inch x 0.94 inch (minimum)

Page length: 3.5 inch minimum for forms with labels

Continuous forms size:

Width: 3 - 16.5 inch

Length: 3 - 17 inch

Multi-part Forms:

Front: 1 original 9 copies

Rear: 1 original 6 copies

Certifications & Standards: Energy star compliant. Green Compliant

Platform Supported: PC

Print Head (Black) Life: 400 characters

ISO Print Speed: High Speed Draft: High Speed Draft 1550 cps (10 cpi). Draft: 1320 cps (10 cpi). Near Letter Quality: 330 cps (10 cpi)

Control Panel: 9 buttons. 6 LEDs. and 1 LCD

Dimensions H x W x D (inches): 14.3 x 27.6 x 14.9

Weight: 75 lb

WHAT'S IN THE BOX:

1 x Printer

1 x Ribbon

1 x Power Cable

1 x Quick Installation Guide

1 x CD with Driver and Manual

Warranty: 1-Year
