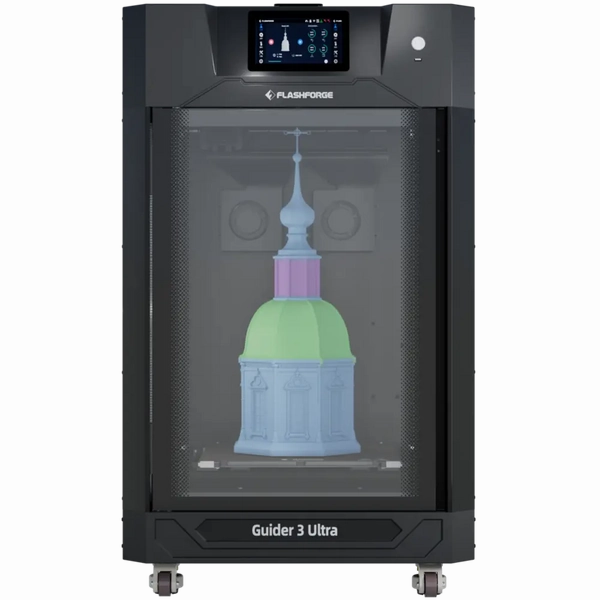

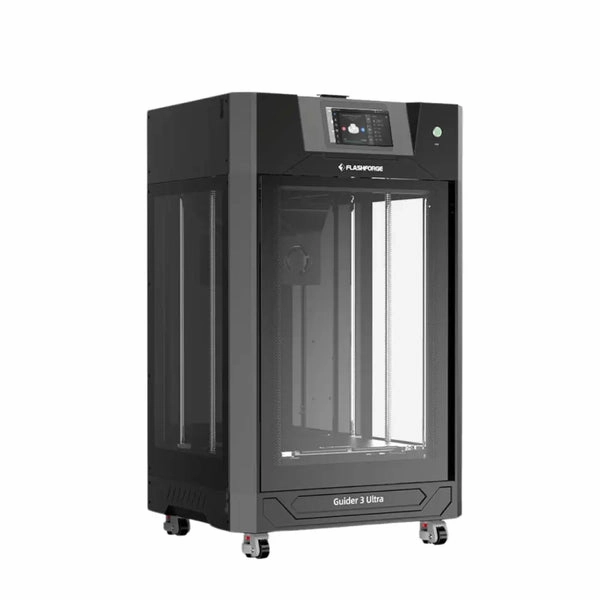

FlashForge Guider 3 Ultra

Make foray into the era of ultra 3D printing with FlashForge Guider 3 Ultra. a splendid manufacturing unit of your 3D models with a spacious CoreXY metal structure. 500mm/s printing speeds. auto levelling and dual extruder for unending experiments.

ENHANCED PRINTING PRECISION

Achieve optimal precision and stable printing with the Core-XY structure and components in metal that has higher rigidity causing minimal errors from vibrations or mechanical shifts. Unlike traditional belt driven models. both X and Y axes of Guider 3 Ultra are independently controlled leaving no room for inaccuracies.

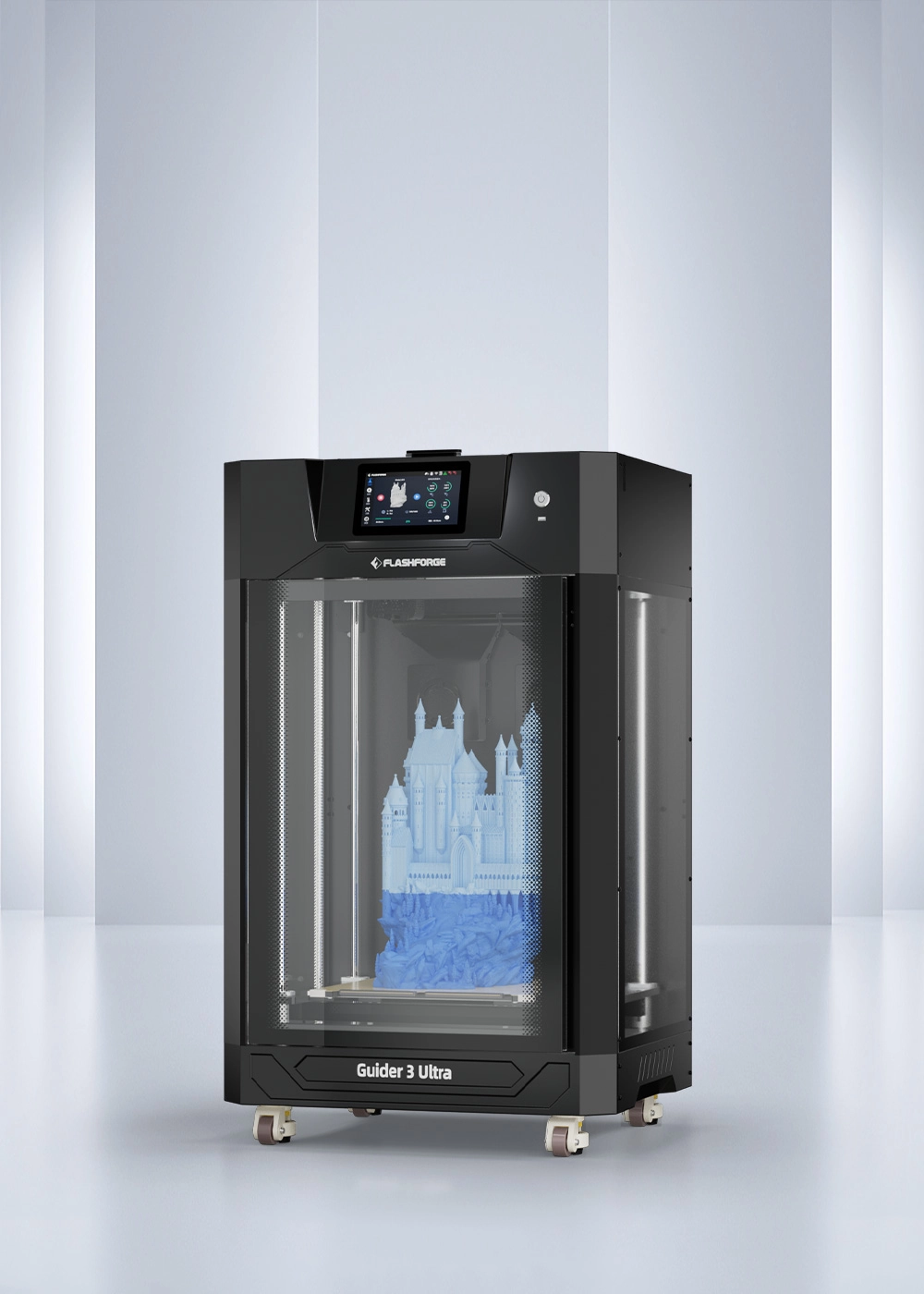

LARGE SCALE PRINTING

Designed to bring your larger than life creativity to shape. the Guider 3 Ultra boasts of a 600mm print height for large-scale printing needs.

EXCELLENT SURFACE QUALITY

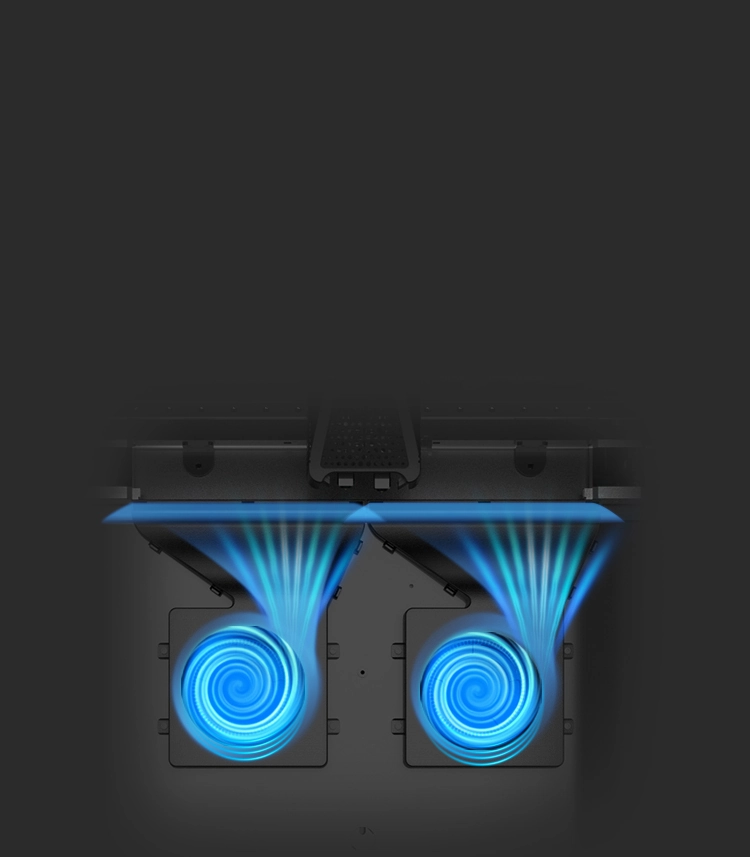

FlashForge's extruder pressure compensation algorithm determines in advance the accurate control needed for the filament extruded leaving you with a smooth. flawless and firm first layer. The smart 3D printer auto compensates vibrations in high-speed printing and eliminates rings in your print with the exclusive vibration suppression algorithm.

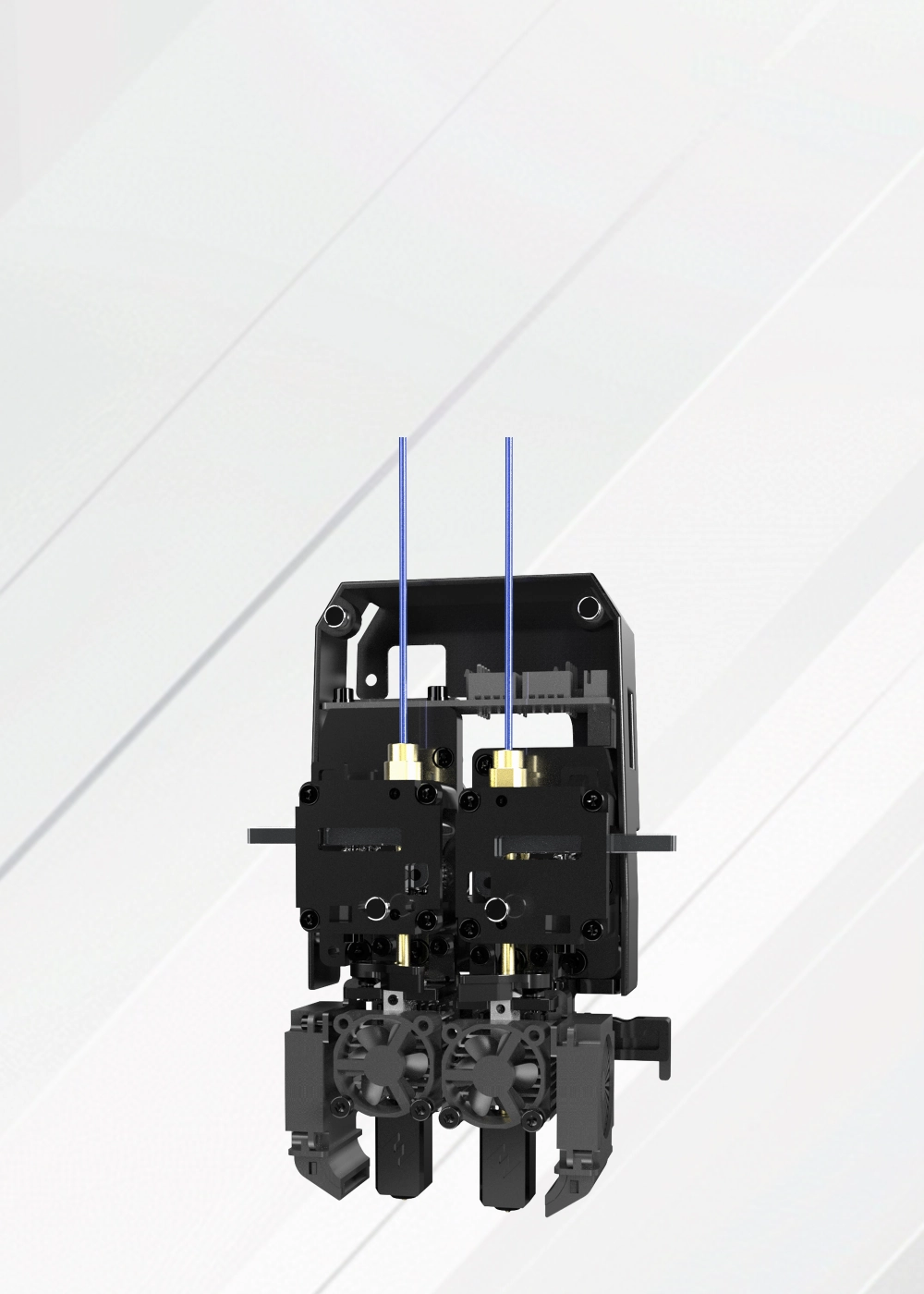

DUAL EXTRUDER

Bring to life complex designs with FlashForge's one-of-a-kind dual extruder ideal to print complex models like high bridges. hollow structures and overhangs.

SEAMLESS FILAMENT SWITCH

Completely automated to support quick printing. Guider 3 Ultra's filament sensor triggers an automatic switch to initiate the second extruder and never stops till the job is done.

TOOL FREE MAINTENANCE

Easy to print and easier to maintain. Guider 3 Ultra boasts of a quick release nozzle saving precious maintenance time.

Highlights:

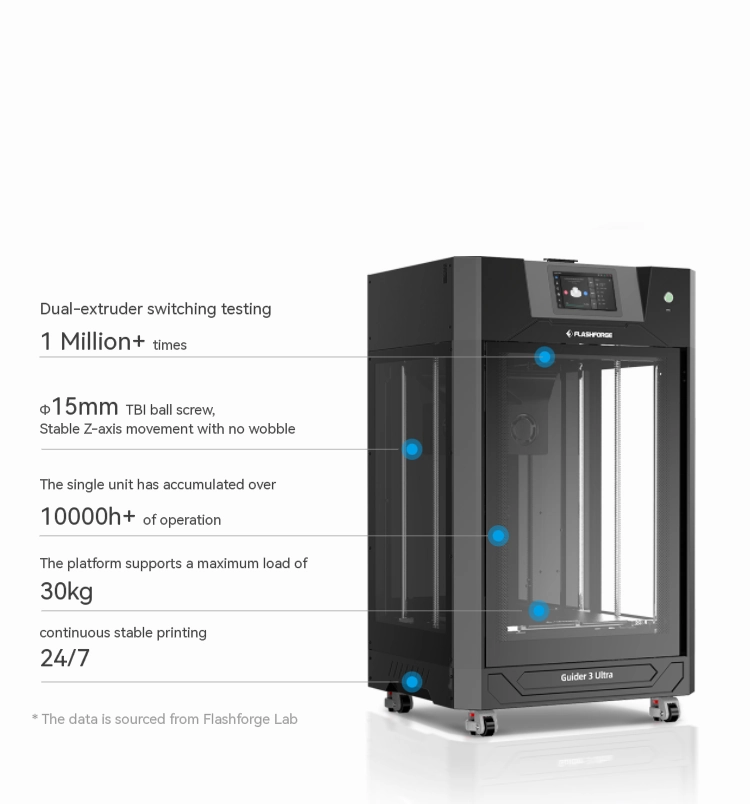

• Stable. high-speed printing of 330 x 330 x 600mm size
• Precise assembly of complex kits with /-0.15mm tolerance
• Impeller material for fine. curved surface printing
• Fully automatic bed leveling with Rone-click printing
• Save 70% print time with dual extruder
• Auto-shutdown for convenient printing
• Quick power loss recovery to resume during power outages
• Intuitive Filament Run-Out Reminder
• Cluster management of printers. support remote printing with the App

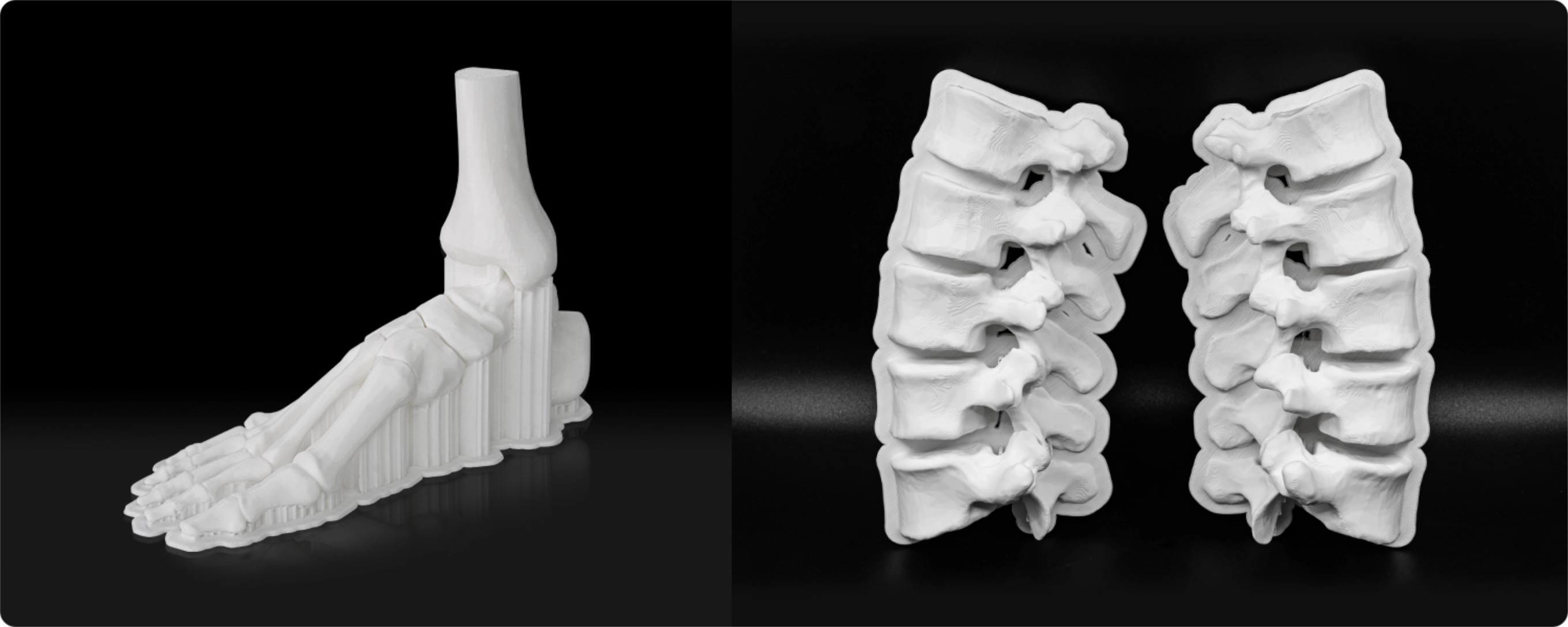

• Ideal to print end-use parts. medical models. art. architecture. jigs. fixtures

Specifications:

Extruder Quantity: 2

Printing precision: 0.15 mm or 0.002mm/mm (The larger values shall prevail)

Position precision: X/Y-axis: 0.011 mm; Z-axis: 0.0025 mm

Layer thickness: 0.05~0.4 mm

Build size: Single extruder: 330x330x600mm; Dual extruders: 300x330x600mm

Nozzle diameter: 0.4mm(Default); 0.6/0.8mm(Optional)

Printing speed: 10-500mm/s

Max Acceleration: 20000mm/s

Max travel speed: 500mm/s

Max extruder temperature: 350

Filament type: PLA / ABS / HIPS / ASA / PETG / CoPA / PLA-CF / PETG-CF / PAHT-CF / PAHT-GF / PET-CF / PET-GF / PA12-CF / PA-CF / PA-GF / NexPA-CF25

Power supply: AC100-240V. 50/60Hz. 850W MAX

Device size: 635 x 550 x 1070 mm (Excluding the protruding width of the lament box)

Net weight: 70kg

Slicing software: Orca-Flashforge / FlashPrint 5

Input/Output file type: Input: 3MF/ STL/ OBJ/ FPP/ BMP/ PNG/ JPG/ JPEG; Output: GX/ G/ code

Printing connection: USB/ Ethernet/ Wi-Fi

Certification: CE / FCC / RoHS

Working temperature: 15-30

Compatible operating system: Windows 7/8/10/11; Mac OS: support version 10.9 or later

Compatible slicing software: OrcaSlicer

Heating bed setting support: 120

Close design: Yes

Auxiliary leveling: Full-auto one-click leveling

Filament running out reminding: Yes

Replaceable print bed: Yes

Continue last printing when power off: Yes

Intelligent door sensor: No

Touch LCD screen: 7 Inch

Remote camera watching: Yes

Time-lapse video: Yes

Wireless WIFI: Yes

Ethernet: Yes

USB stick Interface: Yes

Air filter net: Yes

Magnetic Printing bed: Flexible Steel Plate Platform

Glass printing bed: No

Cloud: Yes

Noise: Silent Design

Automatic shutdown: Yes

Warranty: 1 Year

What's in the Box:

1 x Guider 3 Ultra

1 x Straight Screw Driver

1 x Unclogging Pin Tool

1 x Scraper

1 x Allen Wrench Set

1 x Tweezers

2 x Grease (Lubricant)

1 x Brush

1 x Glue

2 x Fuse

1 x Needle-nose Pliers

1 x Diagonal Pliers

1 x Heat Resistant Gloves

1 x Flexible Heat Sheet

12 x Desiccant

2 x 3D Printing Filament

2 x Nozzle Kit

1 x Instruction Manual
