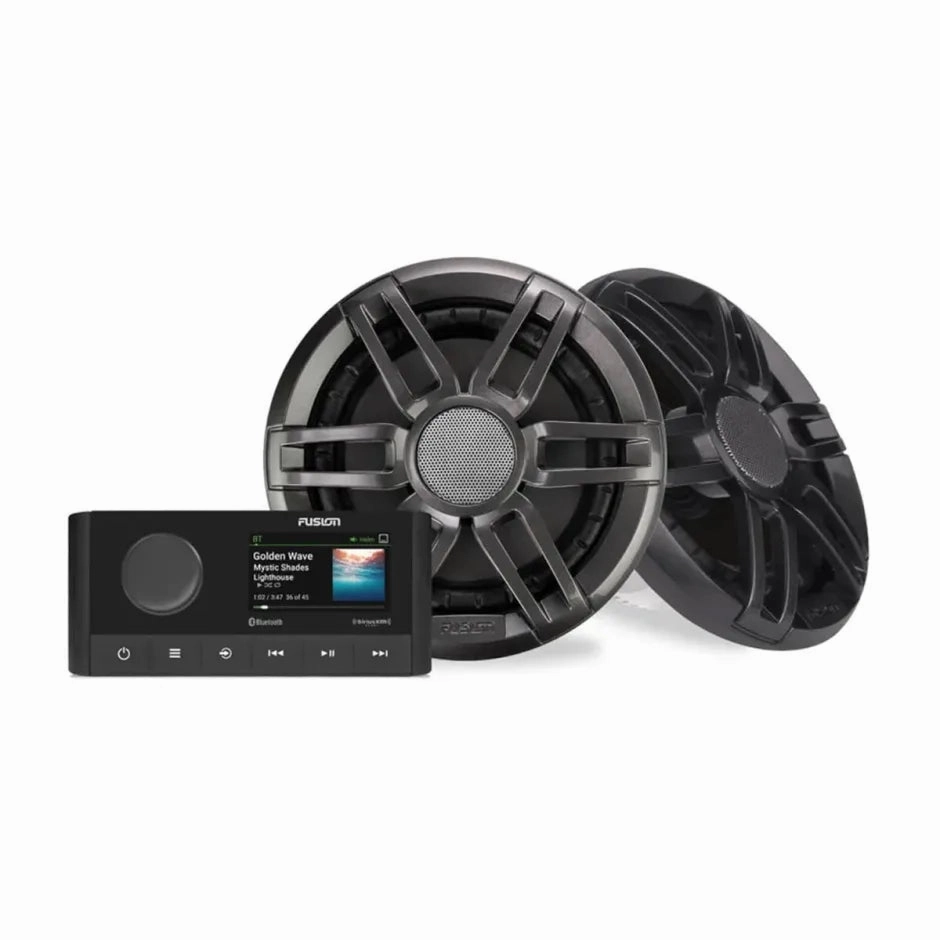

Garmin MS-RA210KSPG. MS-RA210 and XS Sports Speaker Kit
A comprehensive sound system from the house of Garmin. the Fusion RA210 stereo and XS sports speaker kit that fits you boat with an exceptional entertainment center to play the perfect soundtracks on board.
Ready to play right out of the box. the stereo boasts of a built-in Class D amplifier to deliver audio in superior clarity. no matter how rough the weather conditions get. You can also choose to captain two different audio zones with our Multi-Zone technology.
Loaded with smart features. you can impress the sail crowd by playing their favorite numbers and curated playlists from a variety of sources via Bluetooth. All you need is a handy smart device or a Garmin MFD or watch to control what is being played and how its played.
Fusion kit is the ideal pick if you are looking to expand your entertainment center. This stereo and speaker combo lets you strap on compatible Fusion speakers. subwoofers and amplifiers to create a concert like atmosphere right in the middle on nowhere.
Highlights:
- IPX6 and IPX7 ingress protection to withstand marine environments
- Modern design and aesthetics allow elegant installation
- Designed to comply with ISO12216
- Marine-specific design material to deliver high quality audio over water
Specifications:

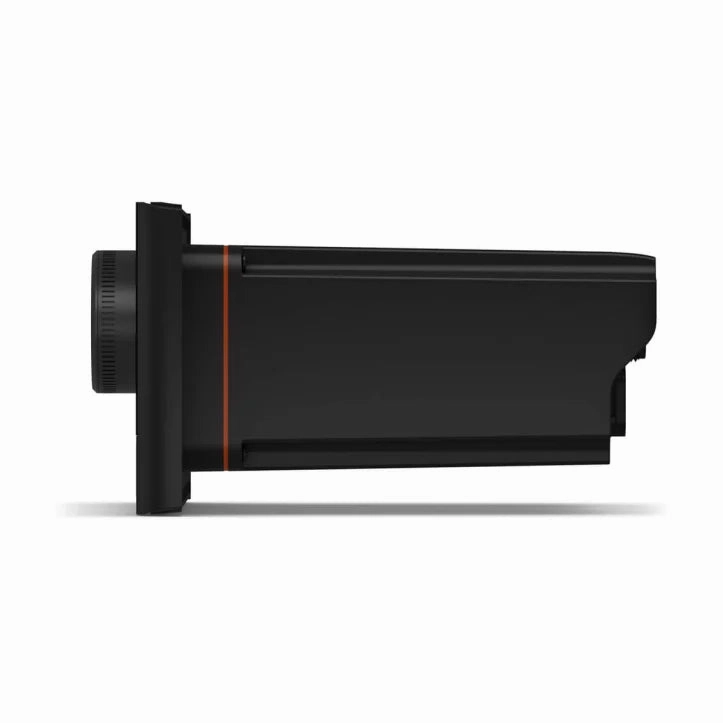

Physical dimensions (HxWxD): MS-RA210: 2.68 x 6.18 x 4.99 (68 x 157 x 126.6 mm)
Weight: MS-RA210: 12.4 oz (350 g)
Water rating: IPX6 and IPX7 (front panel only. when properly installed)
Power input: 10.8-16 VDC
Operating temperature range: 32 to 122 F (0 to 50 C)
Current (max.): 15 A
NMEA 2000 LEN MS-RA210: 1 (50 mA)
BLUETOOTH wireless range: Up to 30 ft (10 meters)
ANT wireless range: Up to 10 ft (3 meters)
Wireless frequencies/protocols: BLUETOOTH 2.4 GHz @ 12 dBm nominal ANT 2.4 GHz @ 7 dBm nominal
Compass-safe distance: 5.9 (150 mm)

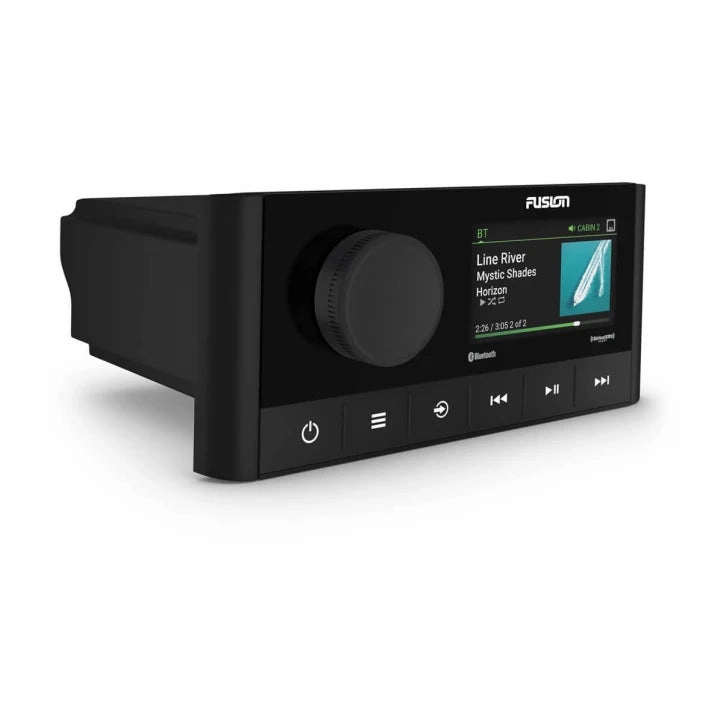

Display: MS-RA210: 2.7 optically bonded color LCD
Built-in amplifier: Class-D (minimum 4 ohm impedance)
Peak power: MS-RA210: 200 W
Rated power output (4 ohm): MS-RA210: 26 W rms x 4 @ 14.4 V input < 10% THD
Built-in Digital Signal Processing: MS-RA210: yes (with preconfigured DSP profiles)
Fusion-Link control: MS-RA210: yes (with MFD. smartphone and Garmin watch)
Multi-Zone technology: 2 zones
BLUETOOTH wireless technology: yes
ANT wireless technology: yes
SiriusXM-ready: MS-RA210: yes (requires SiriusXM Connect vehicle tuner)
DAB ready: MS-RA210: yes (requires DAB100A antenna module)
NRX remote compatibility: MS-RA210: yes
Multi-language interface: MS-RA210: Bulgarian. Chinese (Simplified/Traditional). Croatian. Czech Danish. Dutch. English. Finnish. French. German. Greek Italian. Japanese. Korean.
Norwegian. Polish. Portuguese (BR/PT). Slovenian. Spanish. Swedish. Thai. Turkish
Software updates: MS-RA210: USB
Warranty : 1 year
Sources: MS-RA210: AM/FM/BLUETOOTH/USB audio/iPhone/iPod/AUX x1/MTP/SiriusXM-Ready (USA only. requires optional SiriusXM Connect vehicle tuner)/DAB ready (available
in Europe and Australia only)
Auxiliary input: One RCA input (AUX)
NMEA 2000 MS-RA210: 1 port
USB 2.0 MS-RA210: 1 port
SiriusXM satellite radio MS-RA210: 1 port (requires SiriusXM Connect vehicle tuner. does not support traffic and weather)
AM/FM radio: One Motorola antenna connector port
Speaker: MS-RA210: 4 speaker connections (2 zone amplified)
RCA pre-out (left. right and subwoofer): MS-RA210: 2 zones (requires external amplification)
Line out: MS-RA210: Zone 1. Zone 2 (1 x L R. requires external amplification)
Subwoofer out: MS-RA210: Zone 1. Zone 2 (requires external amplification)

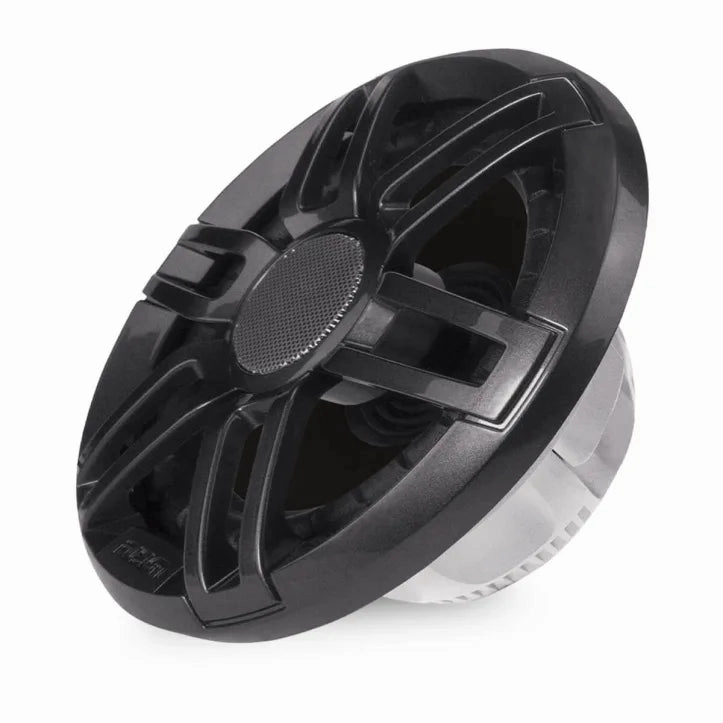

Speaker Specifications
Physical dimensions (Diameter x Depth): XS Sports Speaker: 6.97 x 3.27 (177 x 83 mm)
Water rating: IP65
Configuration EL Speaker: Full range
XS Speaker: Coaxial
Speaker size: 6.5
Peak power (watts): XS Speaker: 200 W
RMS Power (watts): XS Speaker: 50 W
Sensitivity (1 watt/1 meter): XS Speaker: 91 dB
Frequency response: XS Speaker: 80 Hz-18 kHz
Nominal impedance: 4 ohm
Recommended amplifier power (RMS): XS Speaker: 20-150 W/Ch
Operating temperature range: 32 to 122 F (0 to 50 C)
Voice coil diameter: XS Speaker: 1.18
Cone material: Polypropylene cone with cloth surround
Tweeter type XS Speaker: Aluminum dome
Compass-safe distance: XS Speaker: 122 (310 cm)
Warranty : 3 years
Mounting diameter clearance: XS Speaker: 5.31 (135 mm)
Mounting depth clearance: XS Speaker: 2.64 (67 mm)
Sealed enclosure volume: XS Speaker: 0.28 cubic ft (8 L)

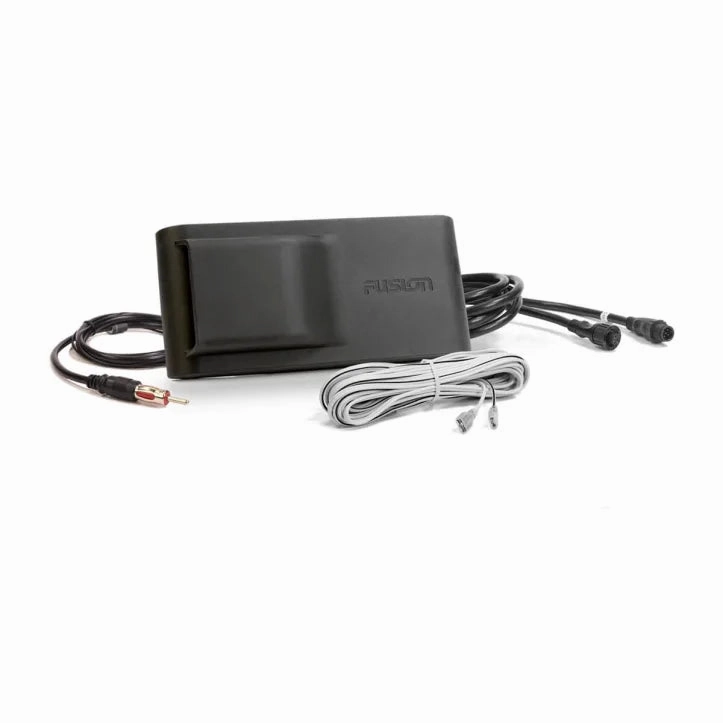

What's in the Box:
1 x MS-RA210 marine stereo

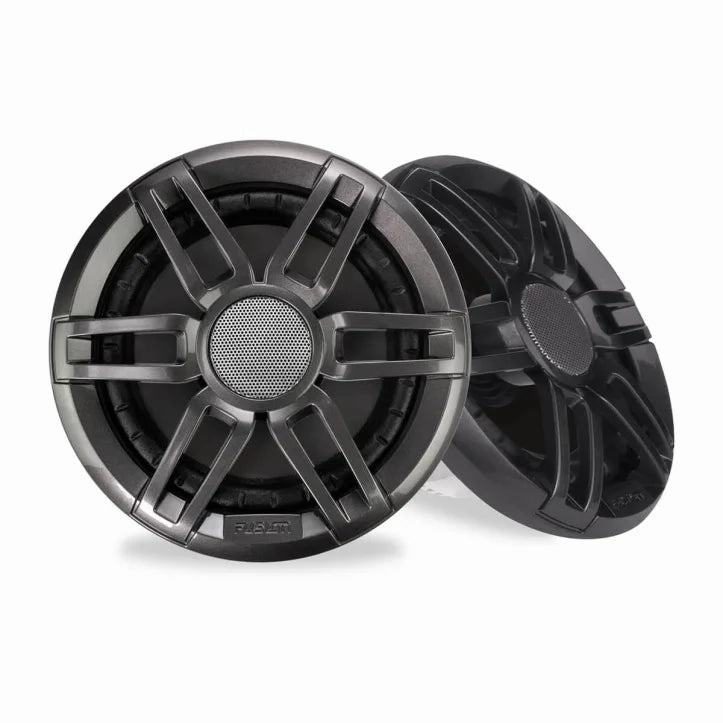

1 x Pair of XS Series Sports Gray marine speakers
1 x AM/FM stealth antenna
1 x 6 ft (2 meter) NMEA 2000 drop cable
2 x 19 ft (6 meter) speaker wires
1 x Dust cover
1 x Wiring harnesses and mounting accessories
1 x Mounting gasket
4 x 6-gauge. self-tapping screws
2 x Screw covers
1 x Power and speaker wiring harness
1 x Auxiliary-in. line-out. and subwoofer-out wiring harnesses
12 x Phillips stainless steel mounting screws (4.2 mm x 25.4 mm (8 gauge x 1))
