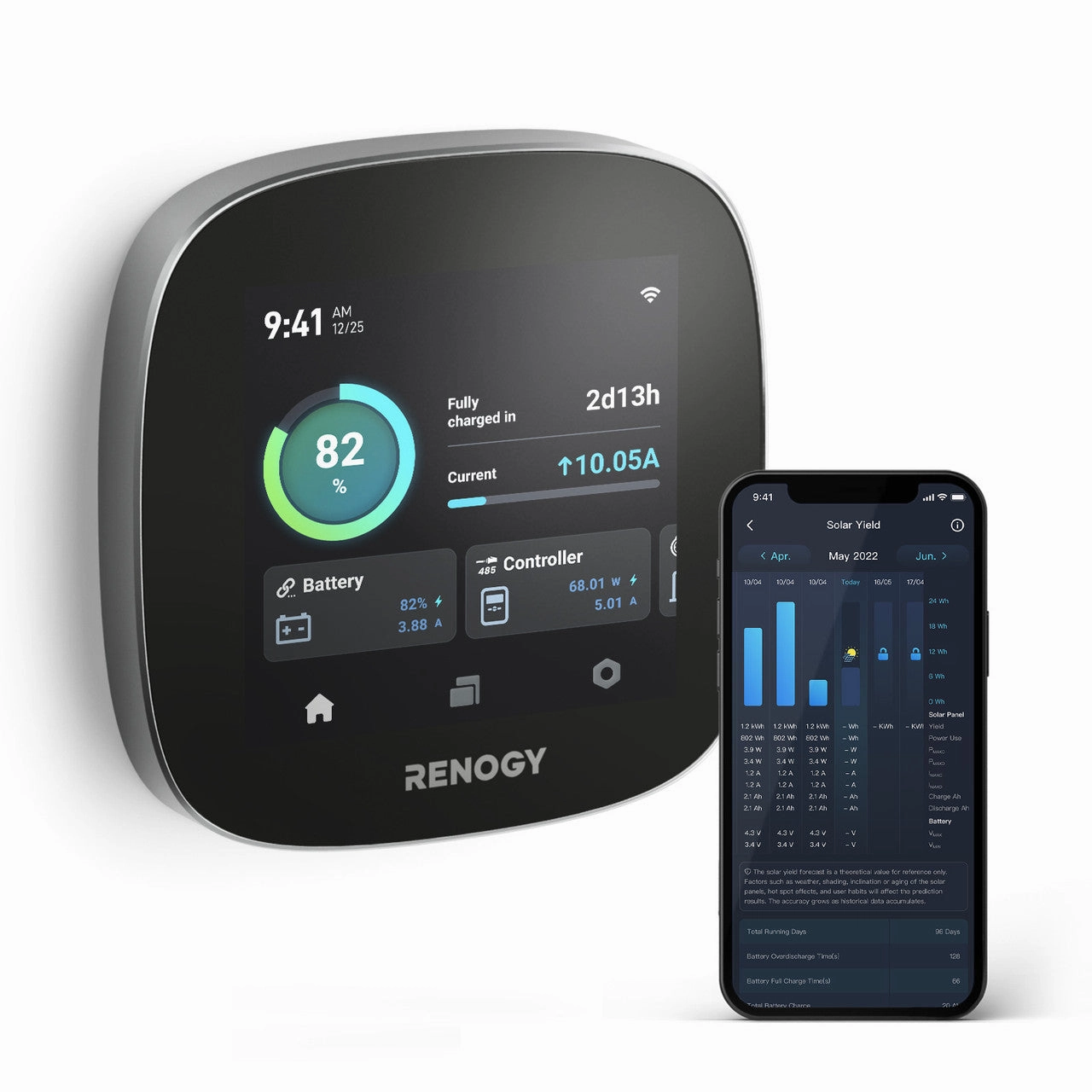

Renogy One Core with CAN- All-in-one Energy Monitoring with 4 Touch Screen. RV leveling. Bluetooth. Zigbee. RS485 and CAN Hub for RV & VAN. Works with Renogy energy Devices. Wi-Fi Version

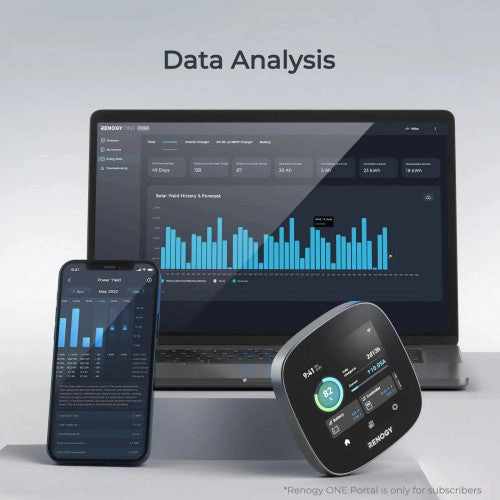

Renogy One Core bridges the gap between world's oldest known power source to man with the latest wi-fi tech. a cloud-based energy monitoring device with 24/7 energy analysis. reliable. convenient and a realistic way to keep track of your energy systems.
ENERGY EFFICIENCY AT YOUR FINGERTIPS. Renogy ONE core is tailor-made for your off-grid dreams. Track every amp of power generated and consumed to reduce your carbon footprint.
REMOTE MONITORING bridges the distance between your energy system and your favorite location. so monitor real-time updates. historical data and error notifications from your off-road camper.
RENOGY ONE CORE is the one command center for all your devices and provides complete home automation.

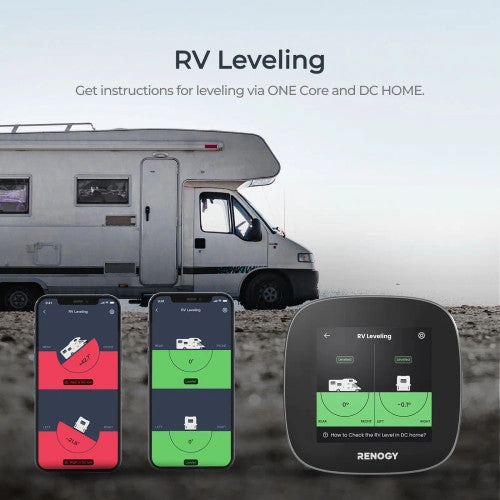

ONE CORE boasts of a built-in 6-axis RV levelling sensor that detects changes in orientation and rotational movement to achieve optimal stability even as you cruise through the bumpiest of terrains.
SMART HOME AUTOMATION is a click away with Renogy ONE Core that doubles up as a smart home hub by connecting to your smart home appliances and triggering alerts on door entry or climate sensors.
Specifications:
Operating Voltage: 8-60 VDC (5 VDC for USB Type-C)
Power Consumption at 12V: Operating. WiFi On. 100% illumination: 3.2 W Operating. WiFi On. 50% illumination: 2.4 W Operating. WiFi On. 0% illumination: 1.9 W Off. logger still active: 1.5 W

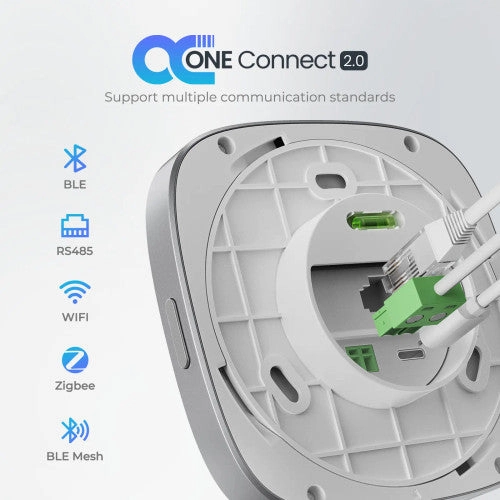

Communication: Wi-Fi (IEEE 802.11b/g/n 2.4 GHz) Bluetooth LE and Bluetooth Mesh Zigbee 3.0 (IEEE 802.15.4) RS-485
Touch Screen: 4 inches (480 x 480p)
Leveling Range and Accuracy: 89. 0.1
Operating Temperature: -4 to 158 (-20 to 70)
Operating Humidity: 0% to 95% RH
Operating Altitude: Less than 5000m above sea level
Installation: Flush mount or place on a table

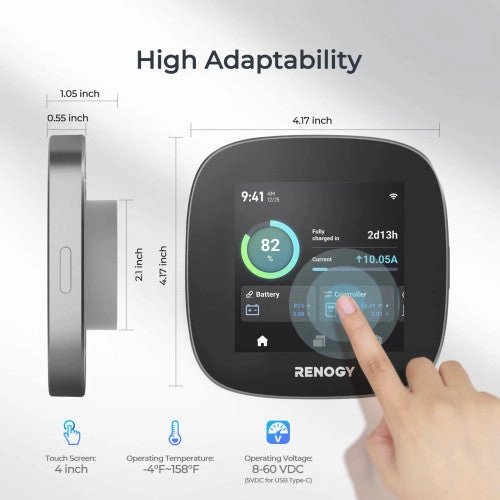

Dimensions: 4.17 x 4.17 x 1.05 in (106 x 106 x 26.6 mm)
Weight: 0.28 lb (128g)
Certification: CE. FCC. RoHS. TSCA. BQB. IC-ID
Warranty: 2 years
What's in the Box:
1 x Renogy ONE Core
1 x Quick Guide
1 x 5m Power Cable
4 x M3.5 x 14mm Mounting Screws
1 x User Manual
