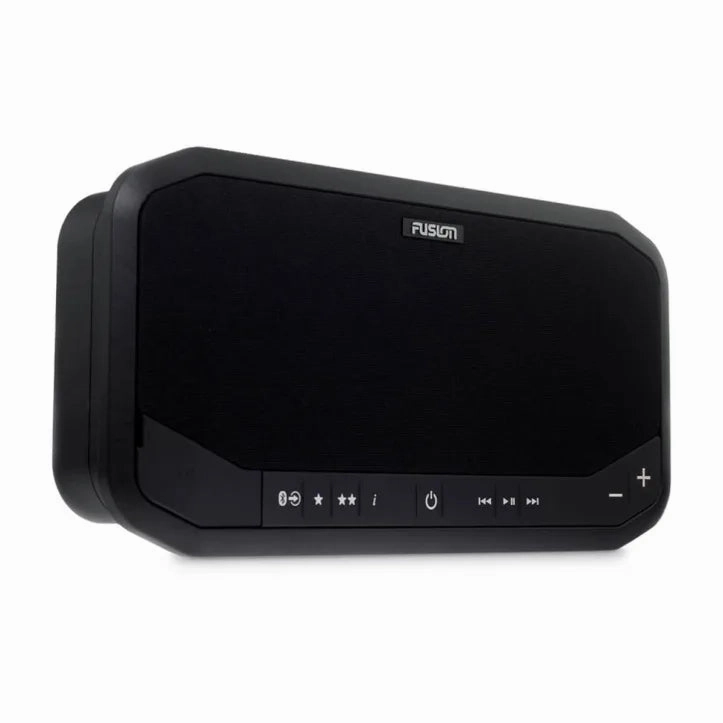

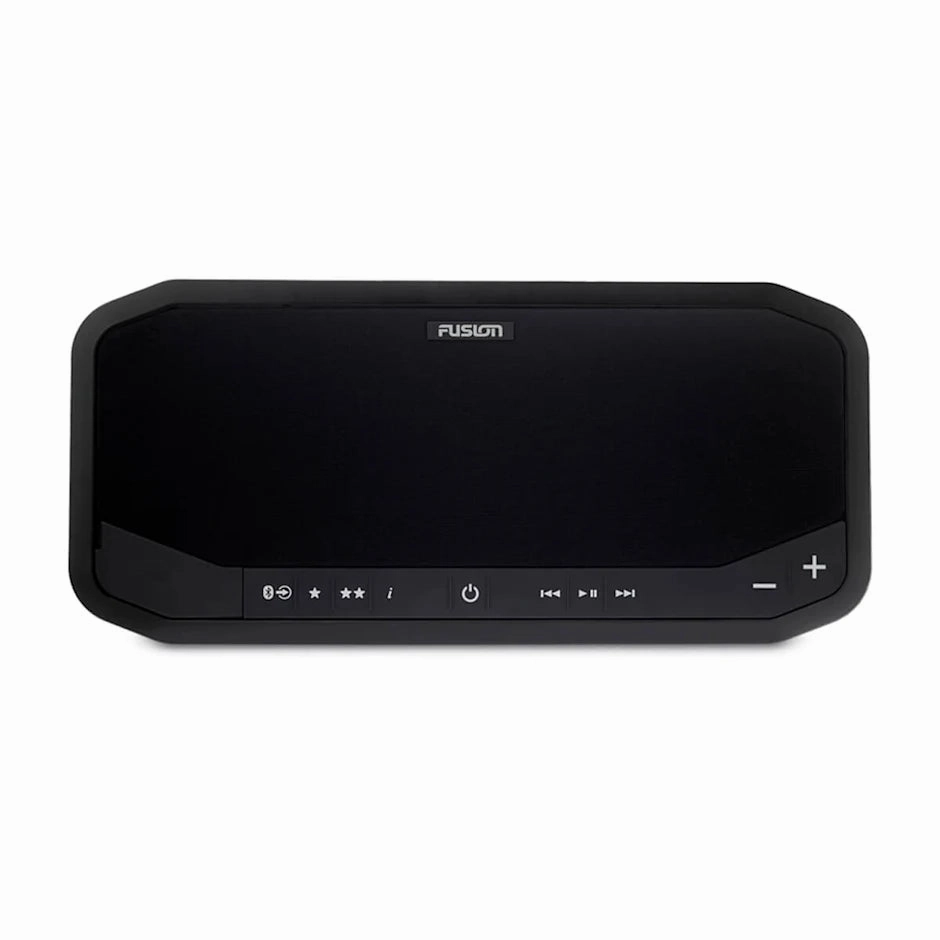

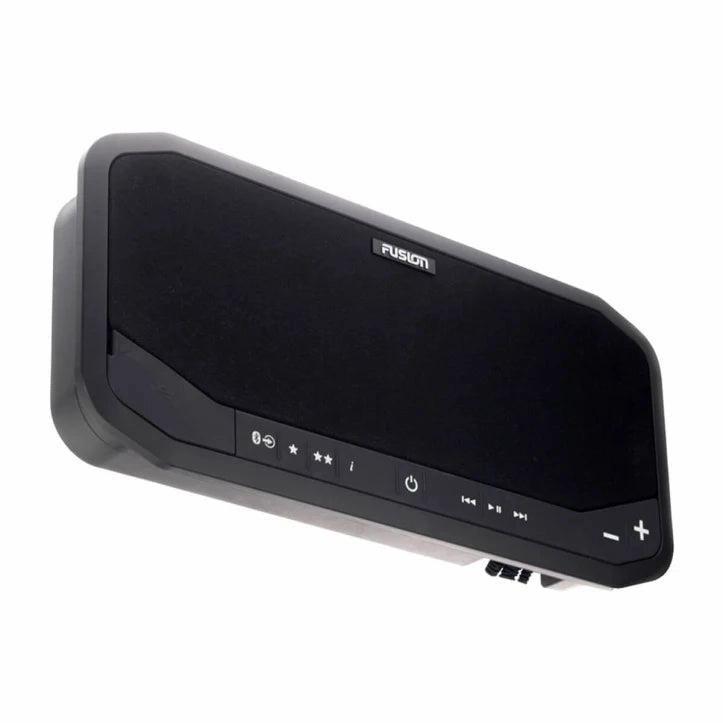

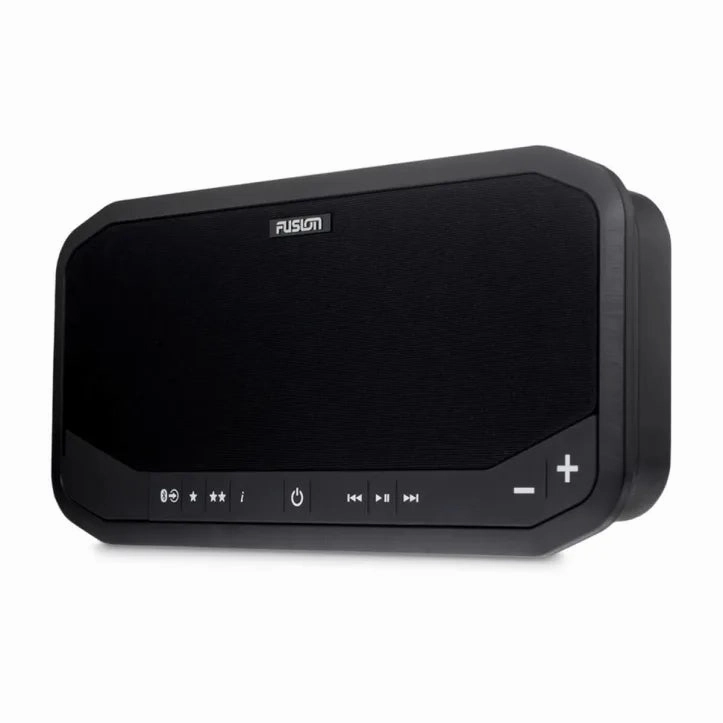

Garmin PS-A302B.Panel-Stereo.AM/FM/BT/USB/AUX/LineOut.Bk.Rtl

Garmin PS-A302B is the all-in-one. plug and play. Panel Stereo from Fusion that delivers premium audio quality from a single unit on board. Enjoy superior audio delivery at all volume levels with Fusion Digital Signal Processing (DSP) that is preconfigured to optimize the audio signal for a consistently enjoyable listening experience.

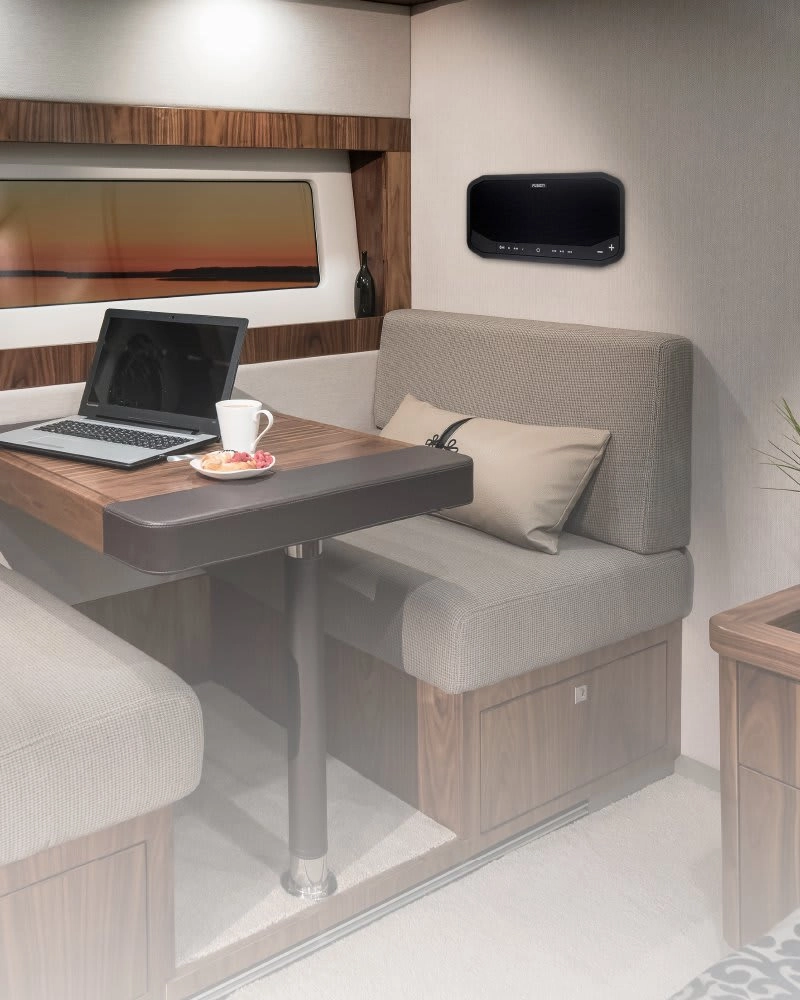

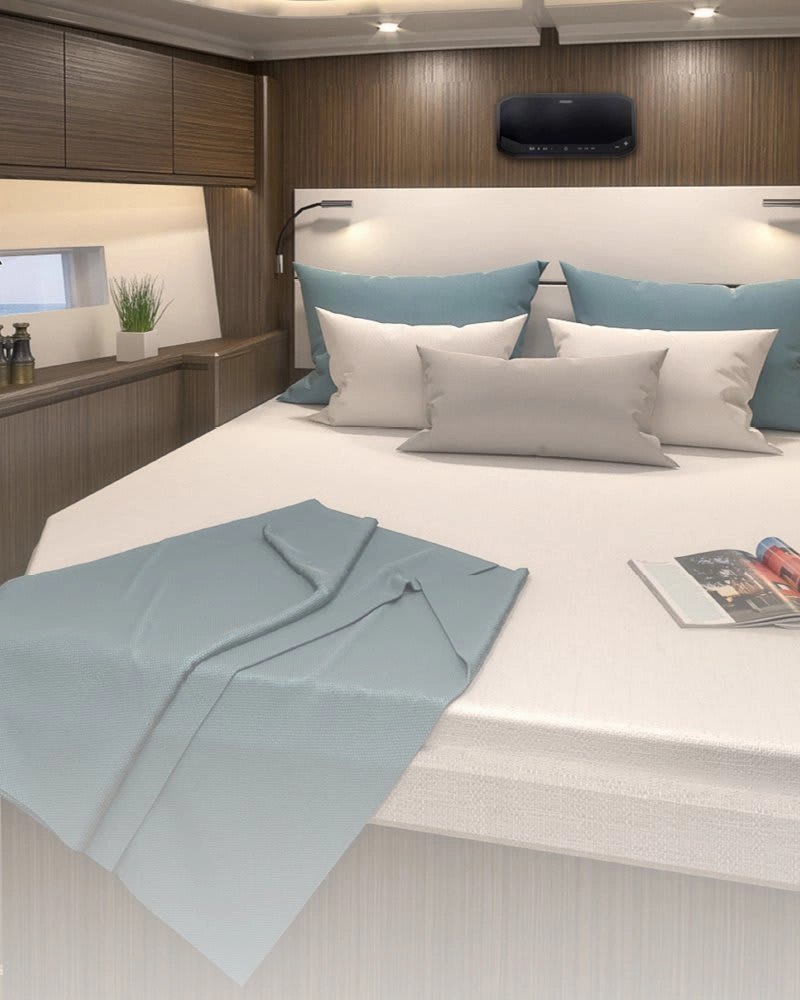

Optimally designed with built-in amplification. stereo source selection. two 3-inch speakers and passive bass radiator. Fusion panel stereo is the future of sound systems on board your leisure boat.

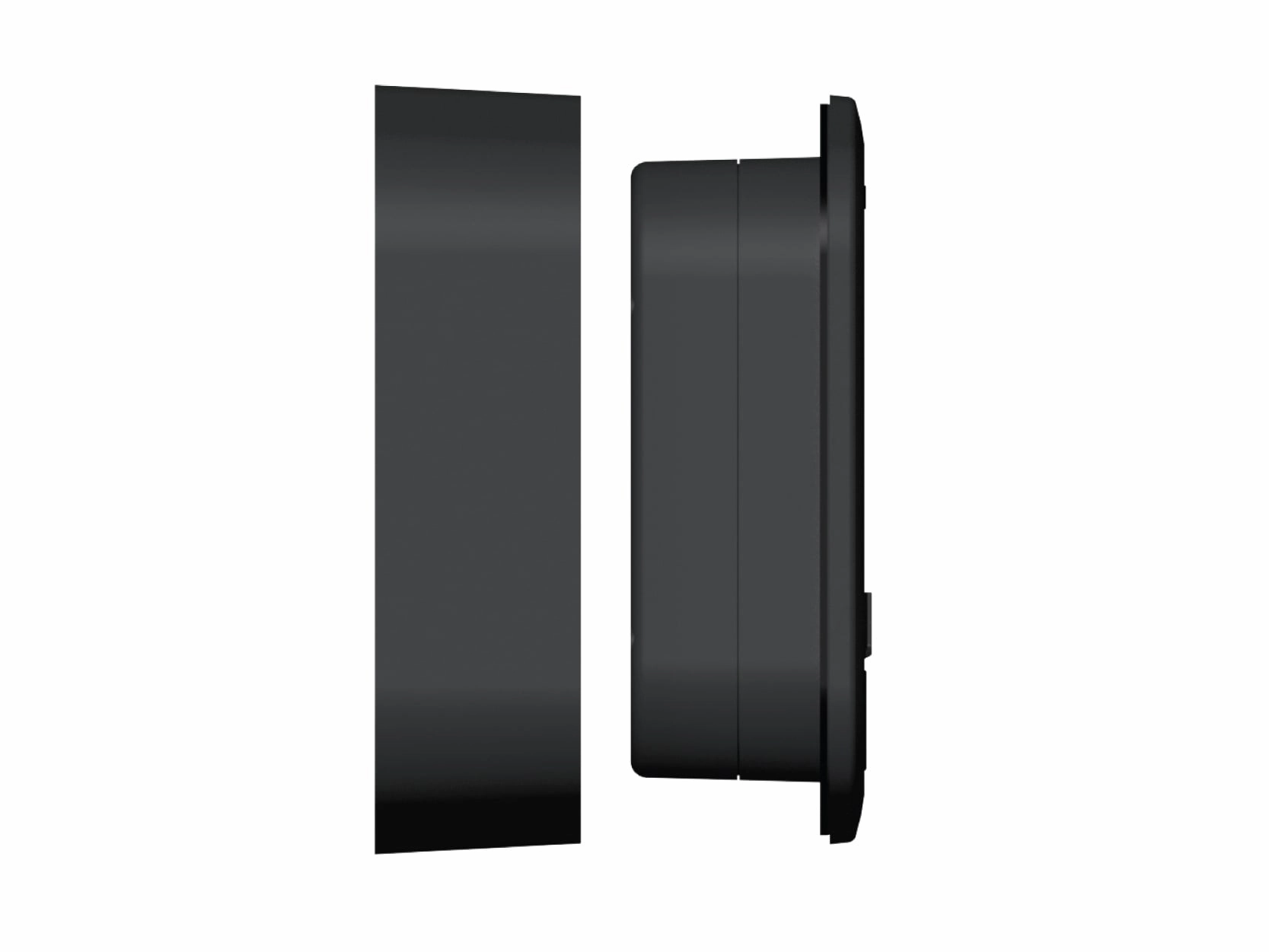

Installation friendly plug and play design boasts of an IP65 rating for protection against dust and water ingress. The surface mounting spacer allows you to install this stereo with a conventional flush mount or premium flat finish or you may choose to simply use the mounting spacer to mount it on surface.

With multiple sources of music to listen from and handy controls via smart devices or Garmin watch. your boat party is all set to rock the expanse of the sea for this weekend.

Specifications:

Dimension: 13.54 x 6.1 x 1.97

Weight: 2.54lbs

Water rating: IP65 (when properly installed)

Operating temperature: 32 to 122 F (0 to 50 C)

Current (max): 10 A

Networking

BLUETOOTH wireless range: up to 30 ft

ANT wireless range: Up to 10 ft

Wireless frequencies/protocols: BLUETOOTH: 2.4 GHz @ 9 dBm nominal

ANT: 2.4 GHz @ 9 dBm nominal

Audio Amplifier: Class-D

Electrical Features

Power Input: 10.8 - 16 VDC

Compass-safe distance: 7.6 (229 mm)

Stereo Features

Peak power: 140 watts

Rated power output (2 ohm): 43 watts RMS x 2 @ 14.4 V input < 1% THD

Built-in Digital Signal Processing (DSP): yes (preconfigured)

Fusion-Link control: yes (smart device and Garmin watch)

BLUETOOTH wireless technology: Yes

ANT wireless technology: Yes

Multi-language interface: Chinese (Mandarin). Dutch. English. French. German. Italian. Japanese. Spanish

Software updates: USB

Warranty: 1year

Supported sources : AM. FM. BLUETOOTH. USB audio. iPhone. iPod. AUX x2. AOA

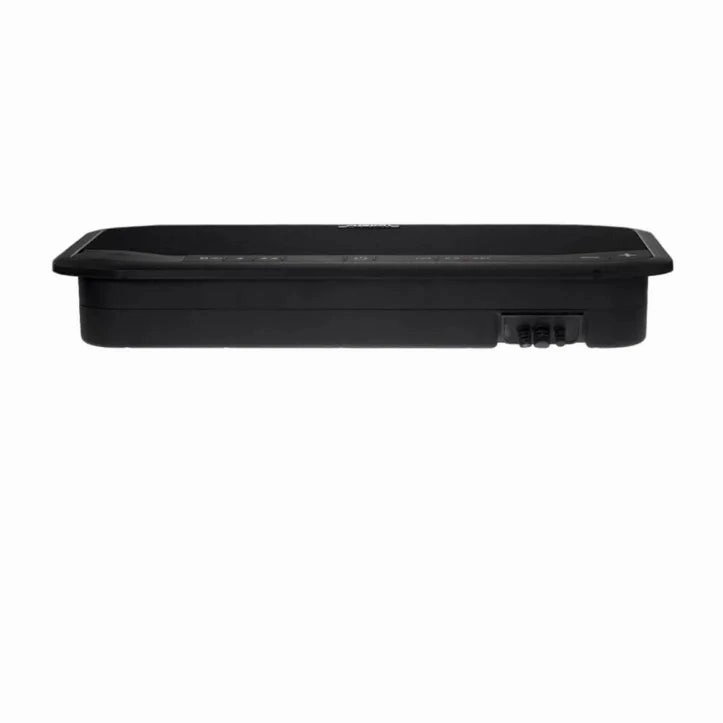

Connections

Auxiliary inputs (RCA): 2

USB 2.0 ports: 1

AM/FM ports (Motorola antenna connector): 1

Line out: 1 RCA Output (AUX)

What's in the Box:

1 x Fusion Panel-Stereo

1 x Stereo trim

6 x 6-gauge. self-tapping stainless steel screws

1 x Power wiring harness

1 x Documentation
