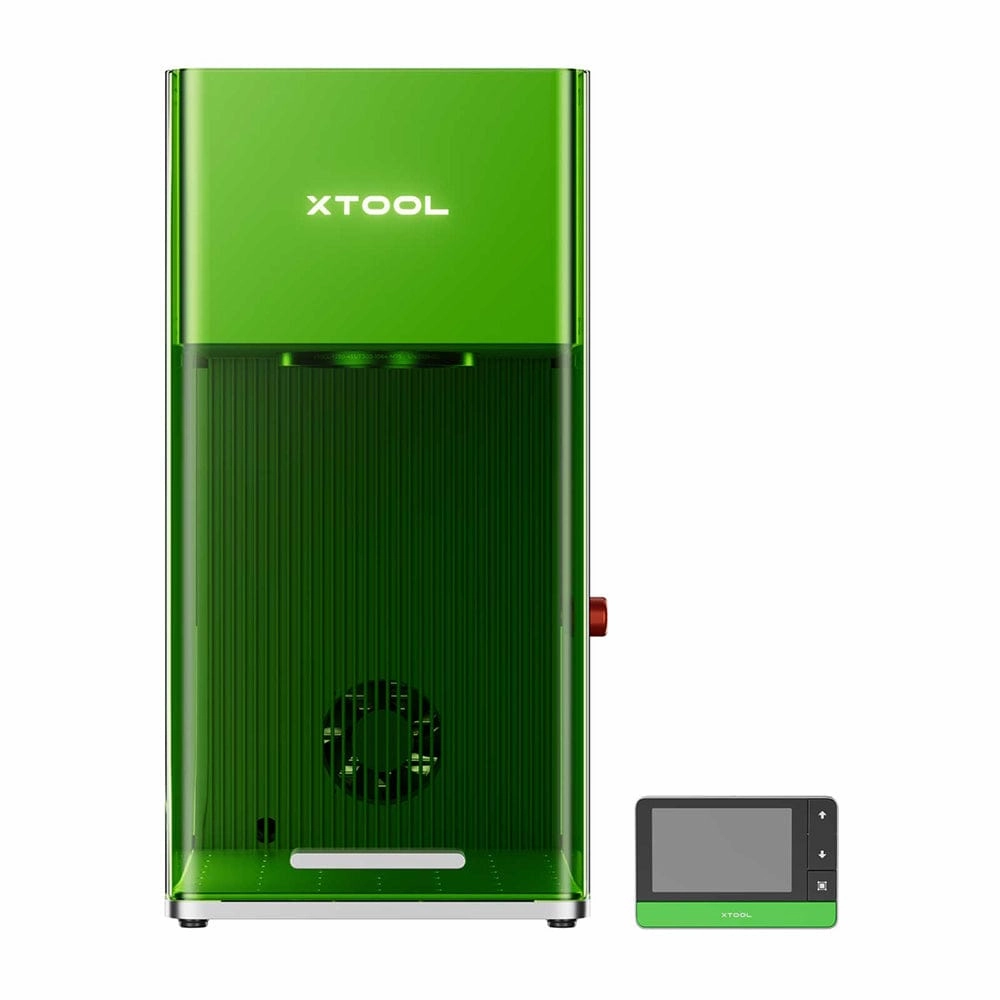

Tool F1 Ultra Laser Engraver
Unleash Your Creativity with the xTool F1 Ultra Laser Engraver and create like a pro on almost all materials!
20W Fiber Laser Perform the best engraving on all metals. plastics. rocks. or ceramics. Additionally. 20W fiber is powerful enough to do deep engraving. embossing. and even cut thin metal sheets.
20W Diode Laser Perform best engraving on most of the common materials. like wood. acrylic (translucent color excludes). leather. glass. paper. rubber. fabric. etc. It can also cut most of the materials above.
Auto Streamline Production w/ Built-In Camera The camera inside F1 Ultra automatically recognizes shapes on the conveyor and helps the F1 Ultra intelligently fill patterns on every piece. Additionally. it is only a cable away to connect to the conveyor.
Largest Desktop Engraver The F1 Ultra's working space is enlarged without sacrificing the concentration of laser power. making it the largest of its kind. with or without the conveyor.
Engrave Faster on Most Materials With its super speed and 20W high power. the diode laser & fiber laser inside the F1 Ultra can now both engrave at super speed on almost all materials such as wood. all-metal plastic. acrylic. leather. etc.
Invisible Laser Light The F1 Ultra is fully enclosed to prevent accidental injuries from the invisible fiber laser light. The enclosure filters out strong blue light. while efficient smoke extraction quickly removes smoke and dust during engraving. ensuring a safe environment for storefront use.
3D Curve Engraving Supports curved surface engraving up to 45 degrees
Embossing Engraving The F1 Ultra can do deep embossing on brass. copper wood. and rocks
Color Engraving & Rotary The F1 Ultra has high-power fiber that can do color engraving on metal. It is perfectly compatible with the RA2 Pro Spinner which allows you to engrave on all cylinders.
The xTool F1 Ultra is bombarded with features like curve surface engraving. 300 materials can be engraved. multiple devices support. ultra-HD. enclosed design. plug and play. portability. onsite customizing. deep engrave jewelry. auto streamline production function. exceptional metal engraving performance. thin metal cutting. 10.000 operating hours. factory level productivity. 4x increased efficiency. and generative AI that brings your vision to life.
Highlights:
Output Power: 20W fiber laser. 20W diode laser
Work area: Bed Size: 220*220
Maximum working speed: 10000mm/s
Work on almost all materials
Always ready to create with control panel
20W Power beast
Factory-Level productivity
16 MP Smart camera
Directly engrave on curved surfaces
Support 90% cylinder engraving
Safe in All Aspect
SPECIFICATIONS:
Exclusive Tech: Auto Streamline Production. 3D Curve Engraving. Pixel Algorithm for HD Photo Printing
Working Area: 220*220mm (8.6 inches*8.6 inches); 220*500mm (with conveyor) (8.6 inches*19.6 inches)
Laser Power and Laser Source: 20W Fiber Laser 20W Diode Laser
Focus Adjustment: Auto Focus with Camera Manual Focus (Two dots Alignment)
Max. Working Speed:10000mm/s
Laser Spot Size:0.08*0.1mm(20W Diode Laser); 0.03*0.03mm(20W Fiber Laser)
Preview: Camera Preview. High-speed Light Live Preview
Preview Speed: Rect24000mm/s; Outline: 16000mm/s
Software: xTool Creative Space / Lightburn
Pre-assembled: Yes
Built-in Camera: Yes
Product Size: 273*373*492mm. 14.7kg
Connection: Wi-Fi & USB Wi-Fi & USB
Support file: SVG / DXF / JPG / JPEG / PNG / BMP
Support systems: Android / iOS / iPad / Windows / macOS
Input: 24V 5A
WHAT'S IN THE BOX:
1 x xTool F1 ULTRA Laser Engraver
1 x Touchscreen Controller
1 x Triangle Slated Prism Work Panel
1 x L-Shaped Positioning Jig
1 x Exhaust Pipe Kit
2 x USB Locking Keys
1 x Lubricating Grease
1 x USB Cord
1 x Powder Adaptor & Power Cable
1 x User Manual
1-Year xTool Trouble-Free Warranty
